Product Details:
Payment & Shipping Terms:
|
| Zones: | 1/8/16/24/33/45 Optional | MBSU Backup Battery: | Optional |
|---|---|---|---|
| Have In Stock: | Yes | Outer Frame: | 2210mm (h) X 880mm (w) X 600mm (d) |
| Inner Frame: | 2010mm (h) X 760mm (w) X 600mm (d) | Gross Weight: | 70kg |
| Connect With Computer: | Support | High Sensitivity: | Can Detect A Clip |
| Randow Alarm: | Support | Waterproof: | IP65 |
| High Light: | metal scanner detector,pass through scanner |
||

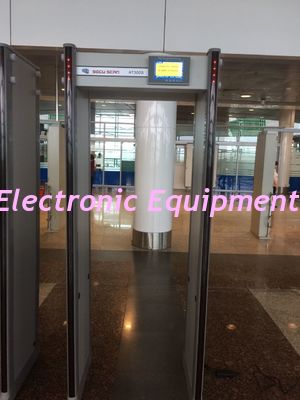

33/45 Zones Walk Through Scanner For Airport , Arch Metal Detector Body Scanner
Fit for outdoor use:
Single, 8, 16, 24zones(33,45zones optional)
MBSU backup battery
DSP technology, automatically calibration
Weather-proof design( Aluminum Case)
LCD display
Technical specification:
| Electrical current | AC80V~250V 50/60Hz |
| Power | 8W |
| Work environment | -20℃~+45℃ |
| Gross Weight |
70kg |
| Outer frame | 2210mm (h) x 880mm (w) X 600mm (d) |
| Inner frame | 2010mm (h) X 760mm (w) X 600mm (d) |
Characteristic:
Self-diagnostic procedures
Input MBSU battery backup, in time power transfer
Modular structure easy for after sales service
Automatically adapt to the working environment
Auto scan environmental interference at site
LCD friendly operation interface for user
Operation way: remote control
Two or four LED light bars on both door panels: gives alarm corresponding to the height or human body.
Detect zone: single, 8,16,24zones(33,45zones optional
Sensitivity adjustable from Level 0 to 300
High: Can detect a clip
Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
Shock proof to avoid false alarm
Sound and light alarm
Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
Tamper-Proof: operate program is protected by password.
Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
Connect with computer, camera, turnstile(Optional)
Inner size as 76cm width(less false alarm for big body passagers)
Mix distance between two Walk-thru:0.3 meters at low sensitivity, 0.5meters at high sensitivity
Harmless to pregnant woman and heart pacemaker
Standards &Certificates
ISO9001 ●ISO14001 ●HSMS18001 ●CE
Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
In accordance with: EN60950, WN50081-1, EN50082-1
Electric safety: EN60950
Anti-interference standard: EN50082-1
Related Products
X-ray Baggage Scanner SPX6550
| Tunnel size | 653*505mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 693mm |
| Max Load | 150kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 35mm steel panel |
| Monitor | 21.5 inch,High resolution 1280*1024 |
| X Ray generator anode voltage | 160KV (Working at 150KV) |
