| Outer Frame: | 2210*880*600mm | Inner Frame: | 2010*760*600cm |
|---|---|---|---|
| LED Bars: | 2 LED Bars At The Front | Operation Way: | Remote Control And Keyboard |
| Pinpoint Zones: | 33 Standard, 45(optional) | Electric Current: | 80V To 250V |
| Power: | 15w | Work Environment:: | -20 Degree To 45 Degree |
| Gross Weight: | 70KG | Waterproof: | IP67 |
| Highlight: | metal detector airport,walkthrough metal detectors |
||

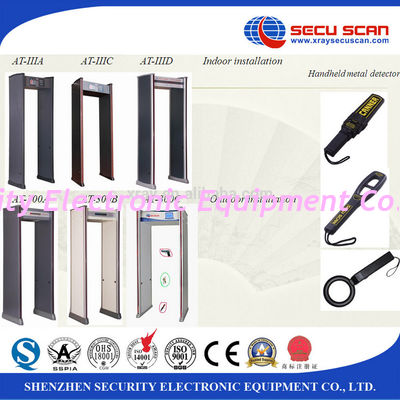

IP67 Waterproof walk through security gate , airport metal detector Door with 33 detecting zones
Technical Specification:
| Electrical current | AC215V~230V 50/60Hz |
| Power | 15W |
| Work environment | -20℃~+45℃ |
| Gross Weight | 70kg |
| Outer frame | 2220mm (h) x 820mm (w) X 522mm (d) |
| Inner frame | 2000mm (h) X 700mm (w) X 522mm (d) |
Features:
| 1. | Self-diagnostic procedures |
| 2. | Input MBSU battery backup, in time power transfer |
| 3. | Modular structure easy for after sales service |
| 4. | Automatically adapt to the working environment |
| 5. | Auto scan environmental interference at site |
| 6. | LCD friendly operation interface for user |
| 7. | Automatically calibration |
| 8. | Operation way: remote control |
| 9. | Two LED light bars on both door panels: gives alarm corresponding to the height or human body. |
| 10. | Detect zone: can adjust 1,6,11, up to 33 zones |
| 11. | Sensitivity adjustable from Level 0 to300 High: Can detect a clip |
| 12. | Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes. |
| 13. | Shock proof to avoid false alarm |
| 14. | Sound and light alarm |
| 15. | Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms. |
| 16. | Tamper-Proof: operate program is protected by password. |
| 17. | Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources. |
| 18. | Connect with computer, camera, turnstile(Optional) |
Standard:
| In accordance with: | EN60950, WN50081-1, And EN50082-1 |
| CE Certificate; | ISO 9001:2000 Certificate, National standard |
| Function: |
can easily detect weapons, such as knife and gun, and any metal article which is hidden in human body |
