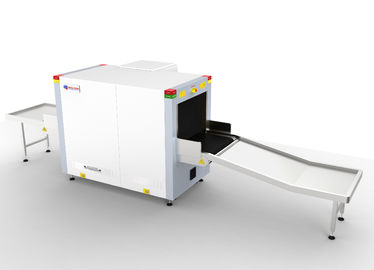

Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size

Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size
Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size

Large Image :  Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT6550D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Detailed Product Description
Tube Voltage: 160kv Conveyor Max Weight: 170kg
Training: Free Training In The Factory Installation: Very Easy
Operatoin: User Maual Attached With Machine OEM/ODM: Accepted
Tunnel Size: 650(W)*500(H)mm Warranty: One Year Free Spare Parts, Life Time Technic Support
Penetration: 34-36mm Steel Software Interface: Support Multi Language
High Light:

security screening equipment

,

airport screening machine





Dual view AT6550D X Ray Scanning Machine Baggage with medium tunnel size





Specification





Tunnel Size                                    650(W)*500(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Dose per Inspection <1.5Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 34-36mm, dual view
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)





Packing and Shipment:





Packing details

carton packing

1 set/ctn

Packing Size: (L)1850*(W)830*(H)1500mm

Gross Weight:600kg

Payment terms

T/T, Western Union, Cash,L/C

Shipping methods

By air   (5-7days, most expensive)

By express (3-7days, more expensive)

By sea    (15-28days, cheapest)







X Ray Generator:



Beam direction                   upward, side
Beam angle 80 degree
Anode voltage 160kv
Anode power 0.5mA
Cooling / Duty Cycle Oil Cooling /100%





X Ray Image:



X-ray Sensor                       L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder





Installation Data:



  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.0 KW (max), 0.7KW(working)
  5. Noise: <58dB.



Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical

Advantages:

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.



Applications:





End user Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals AT6040; AT6550; AT10080; AT100100
Factories (to find needle in clothing,  shoes,  bags), AT5030; AT6040; AT6550
Courthouses, Embassies, Buildings AT5030; AT6040; AT6550
Military installations AT5030;AT6040; AT6550; AT8065; AT100100
Prisons, Hotels, Schools, Convention centers  AT5030; AT6040; AT6550; AT10080
Security checkpoints,Special events location  AT5030; AT6040; AT6550; AT8065; AT10080
