Dual Energy Imaging Customs / Border X Ray Vehicle Scanner Security Scanning Machine

Dual Energy Imaging Customs / Border X Ray Vehicle Scanner Security Scanning Machine
Dual Energy Imaging Customs / Border X Ray Vehicle Scanner Security Scanning Machine Dual Energy Imaging Customs / Border X Ray Vehicle Scanner Security Scanning Machine Dual Energy Imaging Customs / Border X Ray Vehicle Scanner Security Scanning Machine Dual Energy Imaging Customs / Border X Ray Vehicle Scanner Security Scanning Machine

Large Image :  Dual Energy Imaging Customs / Border X Ray Vehicle Scanner Security Scanning Machine

Product Details:
Place of Origin: China
Brand Name: SECU SCAN
Certification: CE, ISO
Model Number: AT2800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden packaging
Delivery Time: 90 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 unit/ year
Detailed Product Description
Typical Throughput:: 100 Pcs Vehicle/h Installation: Will Send Engineer To Assist
Warranty: One Year Vehicle Type: Car, Medium Vans
Training: Provide Training At The Local Usage: Car Safety Check
Tunnel Size: 3m*3m
High Light:

airport security baggage scanners

,

security body scanner

Customs, border use x ray vehicle scanner, truck scanner, container scanner

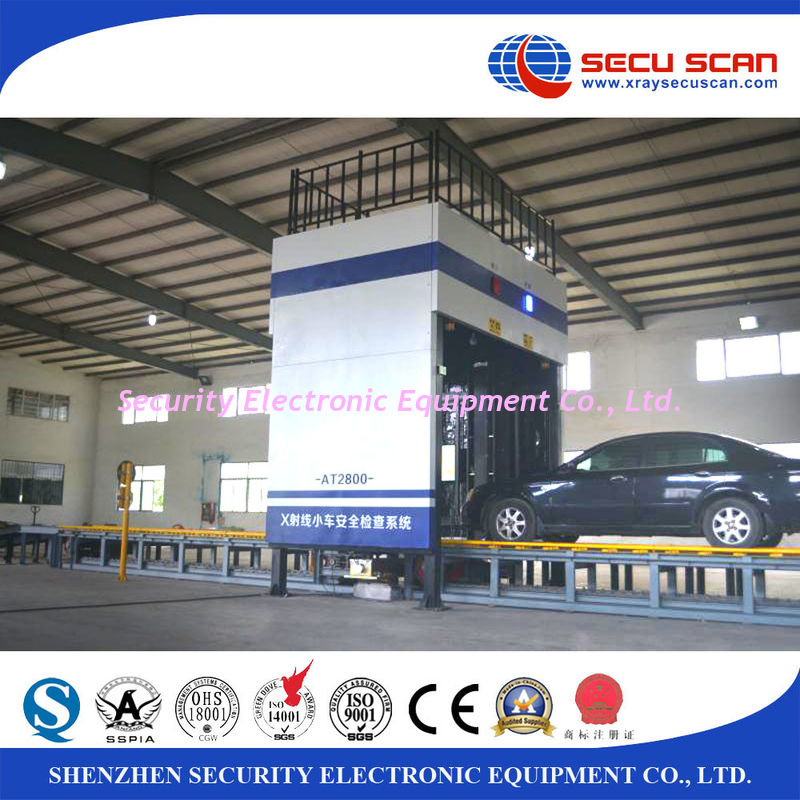

Model: AT2800

System Hightlights:









Dual energy imaging
AT2800 has an automatic color coding for materials separation (3 colors) feature allowing
distinguishing between organic, non-organic and metal materials. This feature helps the operator to detect dangerous object from the various materials.



High pass rate, can achieve 100% inspection


High penetration
AT2800 is with 200kv(300kv optional) generator producing X-Ray from top to bottom, offering
high-quality X-ray images of inspected objects through 60 mm of steel at car speeds of 10 km/h

Friendly interface, can integrated with LPRS and under vehicle inspection system.

Automatic recognition of the license plate number (option)
With the additional camera (option) the AT2800 is able to identify and store the license plate
number of each scanned vehicle.

Under video vehicle surveillance (option)
Upon request, the AT2800 can be provided with the video surveillance system for under-vehicle inspection

Basic Spec.:

Tunnel size 16.5(L)*6.5(W)*5.5(H)
Scanning Speed 5-10 km/h
Typical throughput 150pcs vehicles / hour
Max. Vehicle length 20m and extendable
Penetration typical typical 40mm(200kv),60mm(300kv)
Max. Dose to working area <5 μSv/h
Dose rate outside public area<0.5μSv, compliant with IAEA standard
Film Safety Guarantee ASA/ISO1600 Film
Power consumption Max. 2KVA


X-ray Generator (single)

X ray Accelerator 200kv (300kv optional)
X ray beam From top to down
Cooling / Duty Cycle Oil Cooling /100%


Radiation Safety System

X ray dose per inspection <5.0μsv
X ray leakage <0.5μsv, complied with international IAEA standard



Image System


Image process

Image enhancement; magnifying; brightening / darkening; image pullback / front pull
image storage;

Others Date / time display; vehicle count; user management; system working time; ray out timing; power-on self-test; image storage and retrieval; maintenance diagnosis
Fully automated scanning no manual operation need for operator or driver
Drive-through mode no stopping of vehicle during scanning
Stationary mode the vehicle stays still and the scanner move through the rails and scan the vehicle automatically



Operating Environment

Operation temperature/Humidity -15℃-55℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity -40℃to 70℃ / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional
