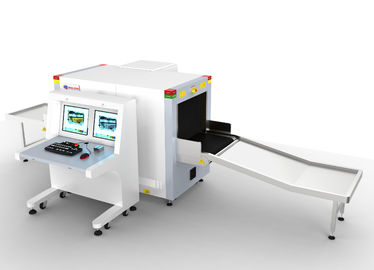

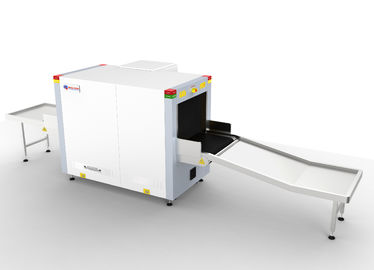

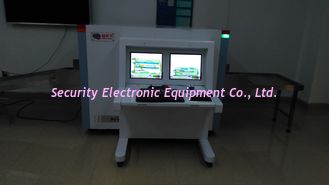

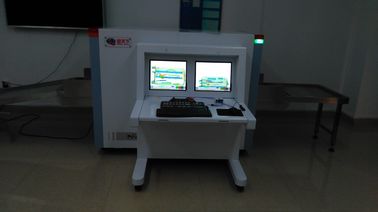

Dual View X-Ray Baggage Inspection System AT6550D Baggage X Ray Machine For Airports

small.img.alt small.img.alt small.img.alt

Large Image :  Dual View X-Ray Baggage Inspection System AT6550D Baggage X Ray Machine For Airports

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE ISO
Model Number: AT6550D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 stes per month
Detailed Product Description
Tunnel Size: 650mm×500mm Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg Wire Resolution: 40 AWG Typical
Spatial Resolution: Level: Dia1.0mm,Vertical: Dia1.0mm Penetration: 32 Mm Steel Guarantee, 38mm Steel Typical
Bi-directional Scan: Yes Beam Direction: Downward And Sideward
High Light:

cargo inspection


x-ray baggage inspection system

Dual View Baggage and Parcel Inspection Scanner AT6550D for Airports


General Specification:

Tunnel Size 650mm×500mm
Conveyor Speed 0.22m/s
Conveyor Max Load 200kg
Wire Resolution 40 AWG typical
Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
Penetration 32 mm steel guarantee, 38mm steel typical
Penetration Resolution 32AWG guarantee, 34mm typical
Film Safety guarantee ASA/ISO1600 Film
X ray Dose per inspection <1.25μSv
X-ray Leakage <0.5 μSv/h (at a distance of 5cm From external housing)
Noise level 60 Db
Monitor 2 sets 19 inch High Resolution LCD
One-key shutdown control rotate the key to shut down the machine; it is safety, easy and convenient
Self-diagnosis function Give message automatically in multifunction for prompt maintenance; TIP software
Network interface Capable of connecting to LAN, and support multi-terminal check for baggage at same time


Operating Environment:

Operation temperature/Humidity: 5℃-45℃/10%-95%(non-condensing)

Storage Temperature/Humidity: -20℃to 60℃/ 5%-95%(non-condensing)

Operation Power: 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Power Consumption: 1.0KW (max), 0.7KW(working)

Noise: <58db


Computer Character:


Power: 250W/ATX

Main board: AIMB 501G2

CPU: i3


Hard Disk: SEAGATE 500G 3.5”


Image System :

Technical Principle: Dual-energy X-ray Imaging;

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep

Monitor: High Resolution Color, LCD Accord, 19 inch

Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 65536

Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

Image Recall: All preceding images recallable, retrieval.

Help detect Explosives & Narcotics: Explosives & narcotics alarm and highlight according to atomic number signature

High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of

threats and contrabands

Threat Image Projection: Inserting fictional, but realistic images of threat items into

baggage during screening operation, for maintenance of vigilance, as well as training and

assessment of image identification capability

Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and

converting to JPG, BMP and other general formats

Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on

timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log,

system standby and stimulant training, ADS etc.

Network Applications: Multiple remote applications available based on Ethernet LAN and

windows platform, such as image centralized storage and identify, recheck workstation, and

network TIP, etc.

Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and

ID NO ,Count the number of bags.
