Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 500mm*300mm | Conveyor Max Load: | 150KG |
|---|---|---|---|
| Penetration: | 30-32mm Steel | Film Safety: | Guarantee ISO1600 Film |
| Have In Stock: | Yes | Certificate: | CE ISO |
| Bidirectional Scanning: | Yes | OEM: | Accept |
| Highlight: | x-ray baggage inspection system,baggage x ray machine |
||

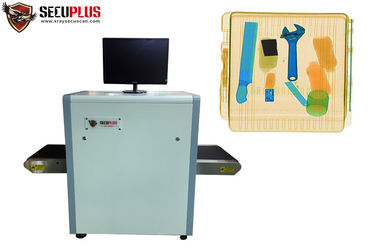

Small tunnel size Window XP Baggage And Parcel Inspection machine for Police security check SPX-5030C
![]()
General Specification
|
Tunnel Size: |
500(W)*300H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
150kgs |
|
Wire Resolution: |
32AWG to 38 AWG |
|
Spatial resolution: |
horizontal:1.3 or 1.0mm, |
|
Penetration: |
27-32mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<1μGy/h (at a distance of 5cm From external housing) |
| Pass rate: | 720 bags per hour |
|
Beam direction: |
Diagonal |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
140Kv |
|
Anode power: |
0.4 to 1.2mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
|
Monitor: |
High Resolution LCD Accord, 17 inch |
|
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
|
Image Grey Level: |
4096 |
|
Image Max Resolution: |
1024 * 768 pixel |
|
Image Processing: |
24bit for processing real time |
|
Image storage: |
Storage 100000 pictures in real time |
|
Zoom: |
64 Times Enlarge, Whole screen continuous observation |
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power: |
220VAC(±10%)50±3Hz |
|
Power Consumption: |
1 KW (max) |
|
Noise: |
<60db |
Applications:
01. railway station
02. Transport terminals,
03. Buildings,
04. Factories (to find needle in clothing, shoes, bags),
05. Courthouses,
06. Embassies,
07. Military installations,
08. Prisons,
09. Hotels,
10. Schools ,
11. Convention centers,
12. Security checkpoints
13. Special events location

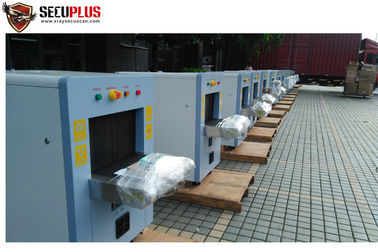

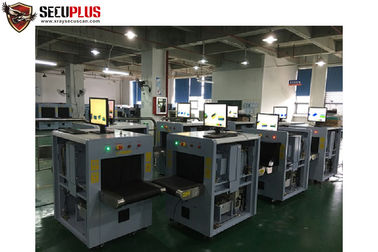

Our Work Shop
![]()
Detailed Product Description:
