Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 650(W)*500(H)mm | Conveyor Max Load: | 170kg |
|---|---|---|---|
| Anode Voltage: | 140Kv | Have In Stock: | Yes |
| OEM: | Accept | Baggage Counter: | Yes |
| Penetration: | 30-32mm Steel | Bidirectional Scanning: | Yes |
| Highlight: | cargo inspection,baggage x ray machine |
||
Dual Energy X-ray Scanner SPX6550 Baggage and parcel Inspection System
General Specification :
| Tunnel Size | 650mm×500mm |
| Conveyor Speed | 0.22m/s |
| Conveyor height | 695mm |
| Conveyor Max Load | 170kg |
| X ray Dose per inspection | <1.14μSv |
| Wire Resolution | 40 AWG typical |
| Penetration Resolution | 30AWG ,the wire visible below 15.9mm thick aluminum |
| Film Safety | Guarantee ASA/ISO1600 Film |
| Spatial resolution Level | dia1.0mm, Vertical: dia1.0m |
| Penetrate resolution | 24WG to 34AWG |
| Penetration | 30mm to 32mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.15μGy/h (at a distance of 5cm From external housing) |
Image System :
Technical Principle--------Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor--------L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor--------High Resolution Color, LCD Accord, 17inch
Image Display--------High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement--------1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall--------All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm--------Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection--------Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive--------Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions--------Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications--------Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc .
Images process--------24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
Operating Environment:
Operation temperature/Humidity------- -5℃-40℃/10%-95%(non-condensing)
Storage Temperature/Humidity-------- -20℃to 60℃/ 5%-95%(non-condensing)
Operation Power--------220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption--------1.0KW (max), 0.7KW(working)
Noise---------<58db
Dimensions (L×W×H)--------2195mm x902mm x1362mm
Device Weight--------465Kg
G.Weight---------700Kg
Packing Volume--------5.54CBM
Computer Character:
CASE: IPC7132
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
Storage: 2GB 1600MHz DDR3 Innodisk
Hard Disk: SEAGATE 500G 3.5”
X-ray Generator:
Anode Voltage: 140kv
Anode power: 0.35mA
Generate angle: 80 degree upward
Brand: own made
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%
Other Characters:
Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
Monitor: 17 inch DELL monitor

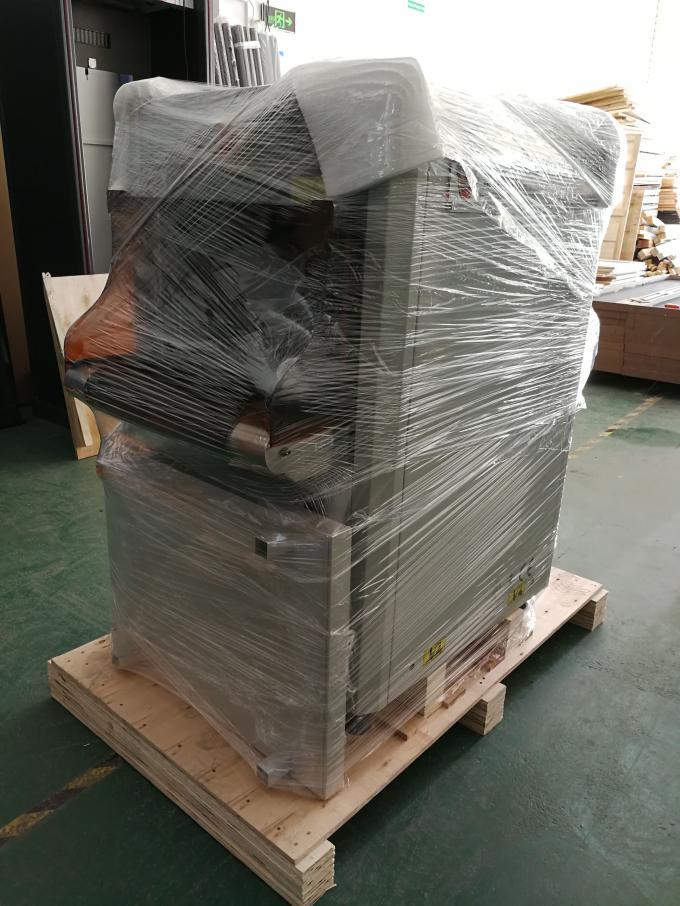

Shipping and Packing
Company Profile
Our Service
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
