Door Frame Metal Detector With Thermal Tmage Temperature

Door Frame Metal Detector With Thermal Tmage Temperature
Door Frame Metal Detector With Thermal Tmage Temperature
video play

Large Image :  Door Frame Metal Detector With Thermal Tmage Temperature

Product Details:
Place of Origin: China
Brand Name: SECU PLUS
Certification: CE, ISO, FCC
Model Number: SPW-IIIC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: within 7 working days after receive your payment
Payment Terms: L/C, L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Outer Frame: 2220mm (h) X 820mm (w) X 522mm (d) Inner Frame: 2000mm (h) X 700mm (w) X 522mm (d)
Gross Weight: 70kg Have In Stock: Yes
Sensitivity: 0 To 300 Adjustable High: Can Detect A Clip
Alarm: Sound And LED Light Alarm Tamper-Proof: Operate Program Is Protected By Password
High Light:

metal detector airport

,

walkthrough metal detectors

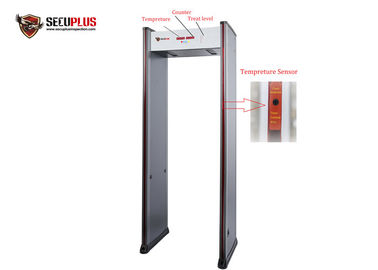

Door Frame Metal Detector With Thermal Tmage Temperature



Check Body Temperature:

• Accurate test body temperature
• Temperature check distance: 0.1-50cm
• Show temperature and alarm for fever
• Temperature deviation: 0.2-0.5
• LED alarm light , located threats



Search for threats:


Two LED lights bars show threats location

Extremely high sensitivity to detect tiny threats

Stable performance

6/18 zones overall inspection



Technical specification



Electrical current AC100V~240V 50/60Hz
Power 10W
Work environment -20℃~+45℃
Gross Weight 70kg
Outer frame 2220mm (h) x 820mm (w) X 500mm (d)
Inner frame 2000mm (h) X 700mm (w) X 500mm (d)


Characteristic

  1. Two LED light bars on both door panels: gives alarm corresponding to the height or human body.
  2. 6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
  3. Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
  4. Sensitivity adjustable from Level 0 to 300
  5. High: Can detect a clip
  6. Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
  7. Shock proof to avoid false alarm
  8. Sound and light alarm
  9. Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
  10. Tamper-Proof: operate program is protected by password.
  11. Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
  12. Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
  13. Harmless to pregnant woman and heart pacemaker
  14. Remote controller optional
  15. Connect with computer, camera, turnstile, etc optional

Standards &Certificates

  1. ISO9001
  2. ISO14001
  3. HSMS18001
  4. CE
  5. In accordance with: EN60950, WN50081-1, EN50082-1
  6. Electric safety: EN60950
  7. Anti-interference standard: EN50082-1



Our core competencies:
X ray Baggage Scanner
Under Vehicle Surveillance System
Walk Through Metal Detectors
Hand Held Metal Detector
Explosives & Drug Detector
Dangerous Liquid Scanner and Turnstiles with very competitive advange.
