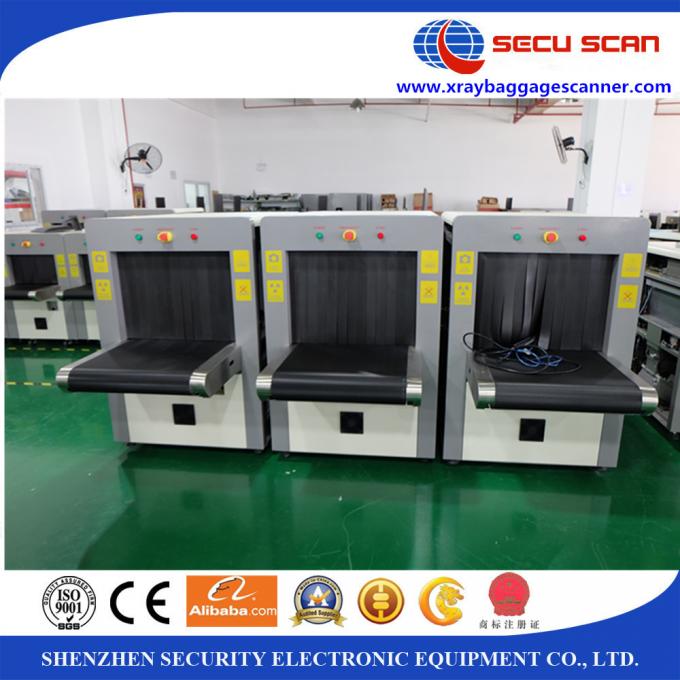

High Speed 6550 digital baggage x ray machine for Prison security check

Baggage and Parcel Inspection 6550 X-ray Machine Manufacture for Prison security check

General Specification :
Tunnel Size: 650mm×500mm
Conveyor Speed: 0.22m/s
Conveyor height : 695mm
Conveyor Max Load:170kg
X ray Dose per inspection <1.14μSv
Wire Resolution: 40 AWG typical
Penetration Resolution : 30AWG ,the wire visible below 15.9mm thick aluminum
Film Safety :Guarantee ASA/ISO1600 Film



Image System :
Technical Principle--------Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor--------L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor--------High Resolution Color, LCD Accord, 17inch
Image Display--------High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement--------1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall--------All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number
signature
High Density Region Alarm--------Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection--------Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive--------Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions--------Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications--------Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process--------24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536

Operating Environment:
Operation temperature/Humidity-------  -5℃-40℃/10%-95%(non-condensing)
Storage Temperature/Humidity--------  -20℃to 60℃/ 5%-95%(non-condensing)
Operation Power--------220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption--------1.0KW (max), 0.7KW(working)
Noise---------<58db
Dimensions (L×W×H)--------2195mm x902mm x1362mm
Device Weight--------465Kg
G.Weight---------700Kg
Packing Volume--------5.54CBM

Computer Character:
CASE: IPC7132
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
Storage: 2GB 1600MHz DDR3 Innodisk
Hard Disk: SEAGATE 500G 3.5”

X-ray Generator:
Anode Voltage: 140kv
Anode power: 0.35mA
Generate angle: 80 degree upward
Brand: SECUSCAN ( own made )
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%

Other Characters:
Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
Monitor: 17 inch DELL monitor

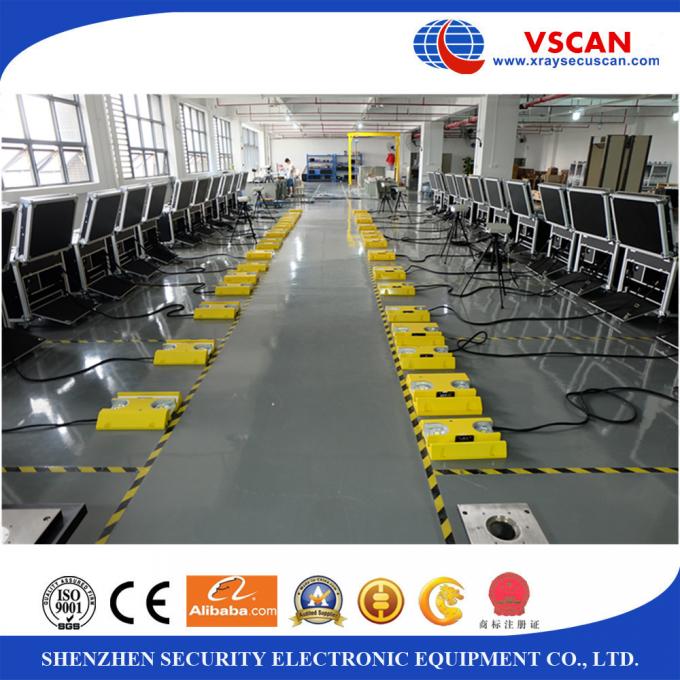

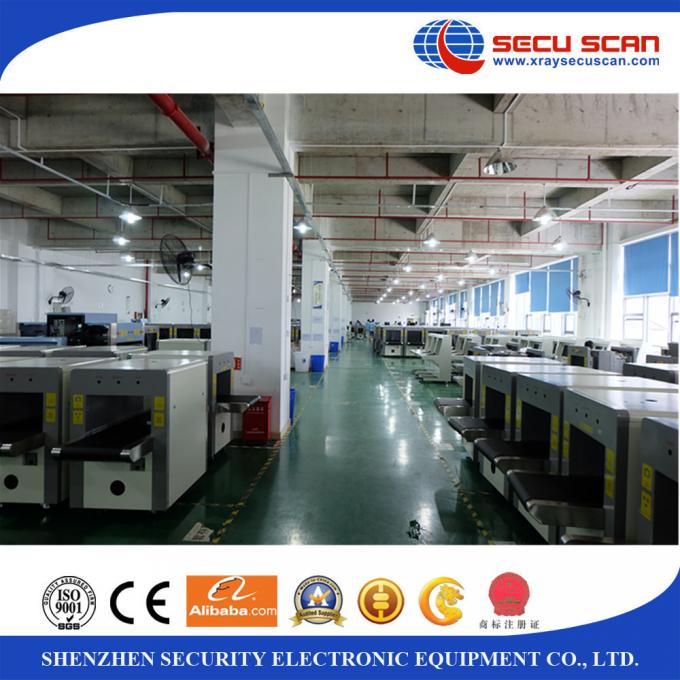

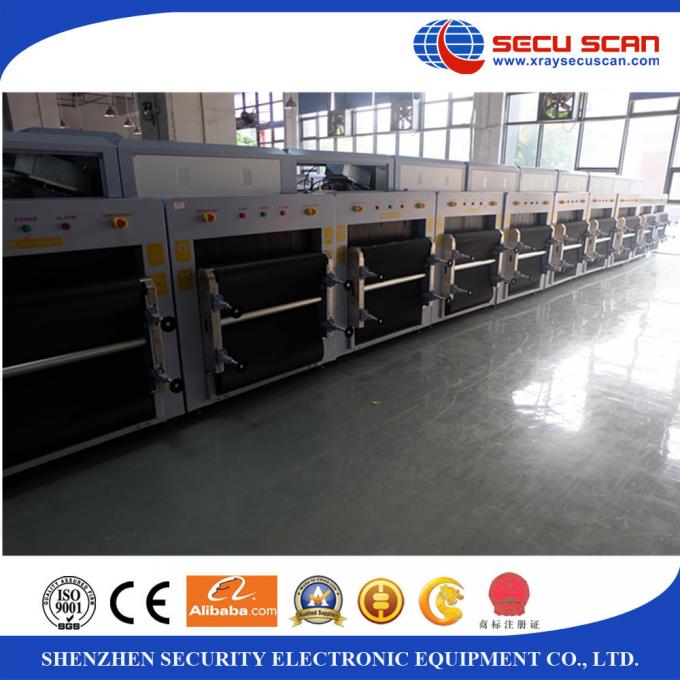

Our Work Shop

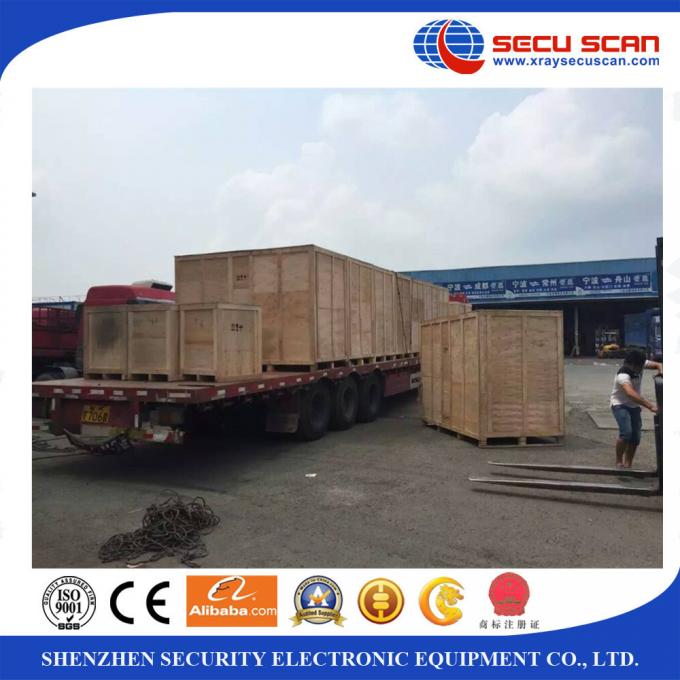

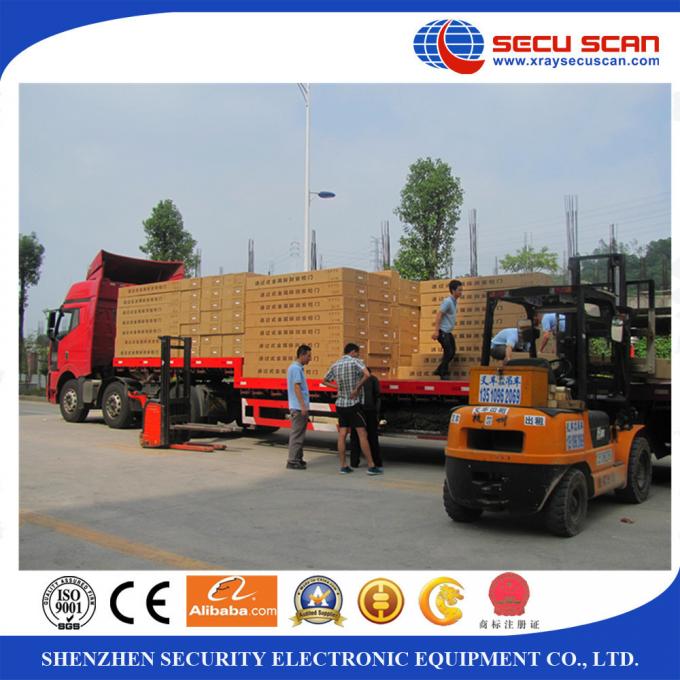

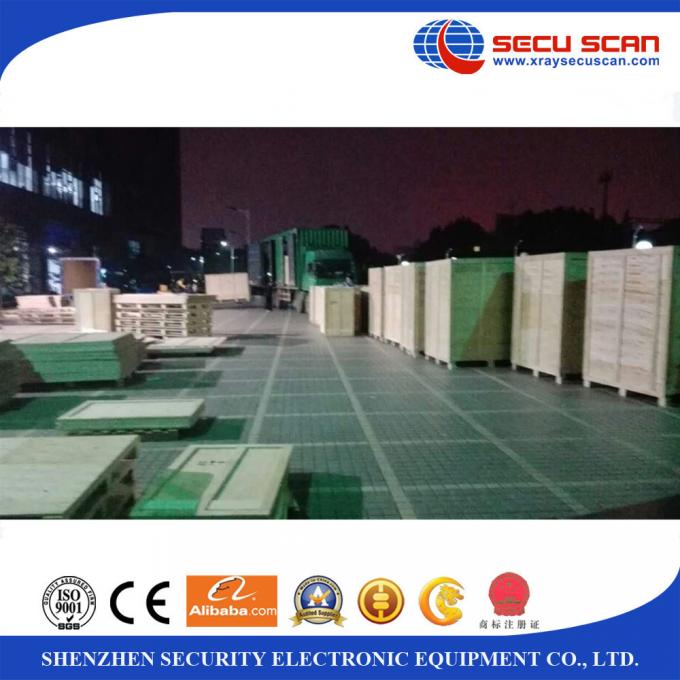

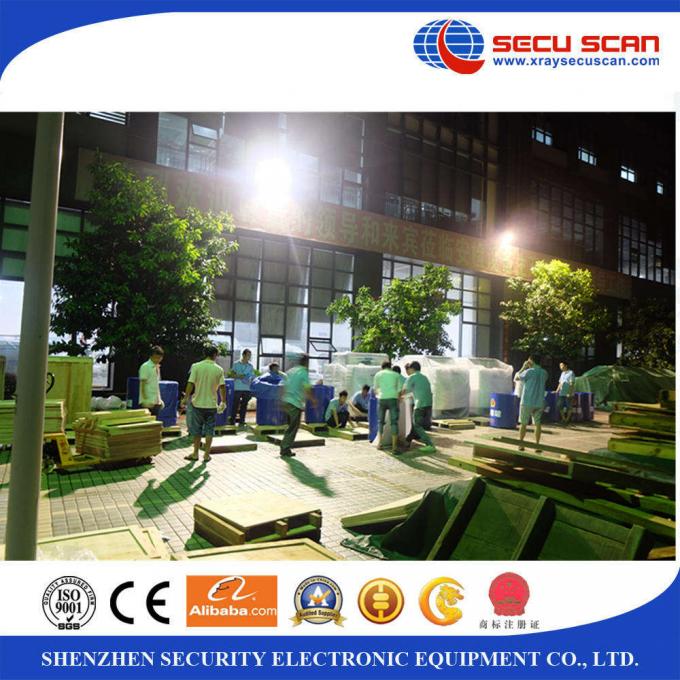

Shipping and Packing



Company Profile


Our Service
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
