High Penetration X Ray Security Scanner

High Penetration X Ray Security Scanner
High Penetration X Ray Security Scanner High Penetration X Ray Security Scanner High Penetration X Ray Security Scanner

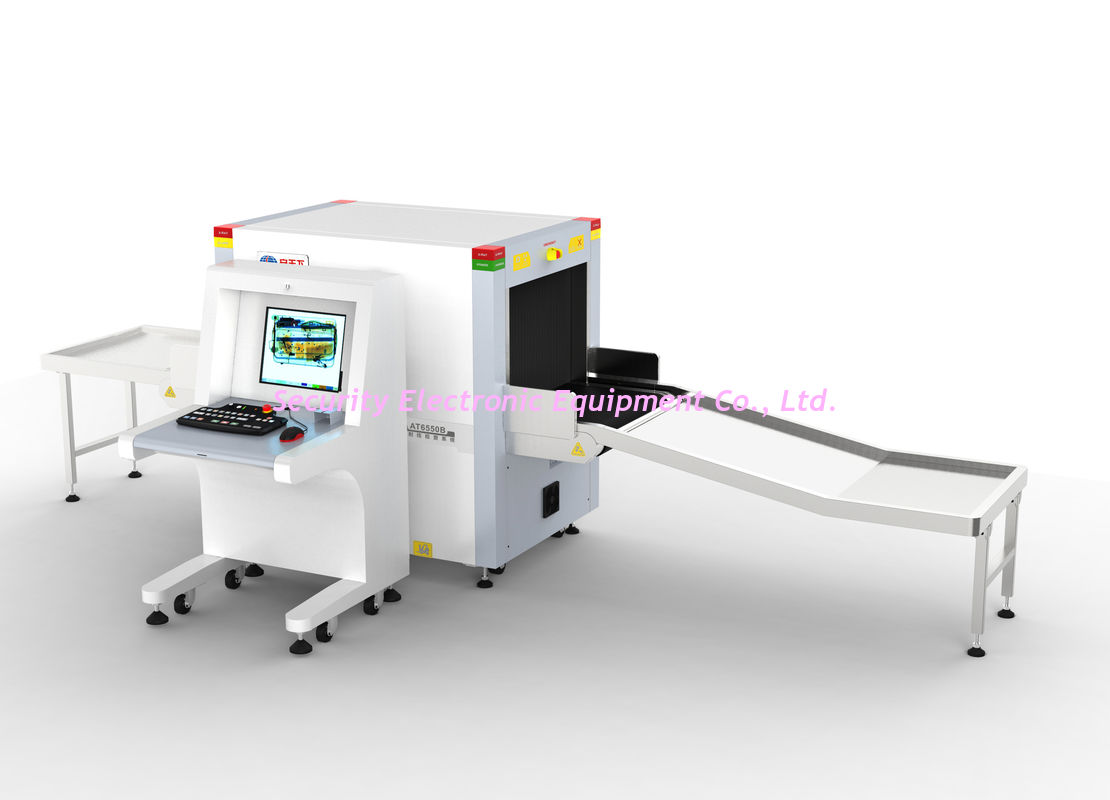

Large Image :  High Penetration X Ray Security Scanner

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: FDA, CE, ISO
Model Number: AT6550B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood package: Size: 217*102*158cm Gross weight: 660kgs
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500+set+per month
Detailed Product Description
Tunnel Size:: 650mm×500mm Conveyor Height :: 670mm
Wire Resolution:: 38AWG Guarantee, 40AWG Typical Penetration: 38 Mm Steel Guarantee, 40mm Steel Typical
Conveyor Speed: 0.22m/s Conveyor Max Load: 160 Kgs
High Light:

airport security baggage scanners


security body scanner

High penetration 38mm steel Baggage x-ray inspection system

The SECU SCAN AT6550B is designed for screening small objects as well as baggage and large parcels for hotel, government, aviation, customs application.
Greatest Number of Operator-Assist Tolls Enables Highest Throughput
With Over 12 image processing tools, the feature rich software helps the operator easily and accurately detect contraband for the highest throughput and least operator fatigue


Physical Specifications
Unit weight (kgs) 512
Unit size (mm) 2037(L)*905(W)*1331(H)
after packed in wooden pallet -
Gross weight (kgs) 700
Packing size #1: 237*105*166cm
  #2: 86*87*142cm
General Specifications
Tunnel size(mm) 660(L)*502(W)
Conveyor Speed(m/s) 0.22
Conveyor height(mm)  670
Conveyor Max Load(kgs) 150
X ray dose per each inspection Typical 2.5 μGy/h, guarantee 3.5 μGy/h
X ray leakage  Typical1.0 μGy/h, guarantee 1.5 μGy/h
Penetration Typical 38mm, guarantee 34mm
Wire Resolution Typical AWG40, guarantee AWG38
Penetration Resolution Typical AWG34, guarantee AWG32
Spatial resolution: Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.0mm,Vertical: dia1.0mm;
Power Consumption max. 0.8KW
Noise < 60 dB
Film Safety Guarantee ASA/ISO1600 Film
X-ray Generator (single)
Anode Voltage 160 KV
Anode power 0.8mA
Generate angle 80 degree upward
Generate direct from bottom to top
Cooling / Duty Cycle Oil Cooling /100%
Brand Spellman or local made
Image System
X-ray Sensor L-Shaped Photodiode Array (multi-energetic)  , 12bit Deep
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall  All preceding images recallable, retrieval
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive Up to 200,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags
Operating Environment
Operation temperature/Humidity  0ºC-45ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity  -40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power  220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS  15mins, 30mins, 60mins etc, optional
Computer and other
Monitor High Resolution Color, LCD Accord, 17inch
Hard Disk SEAGATE 500G 3.5"
CPU G1610 2.6G
Storage 2GB 1600MHz DDR3 Innodisk
Main board H61 SYM76993VGGA


High Penetration X Ray Security Scanner 0High Penetration X Ray Security Scanner 1High Penetration X Ray Security Scanner 2High Penetration X Ray Security Scanner 3
Detailed Images
High Penetration X Ray Security Scanner 4
Packing & Delivery
One unit packing in two plywood boxes

Scanner packing size: 237*111*163cm
Scanner gross weight: 600kgs
Console packing size: 88*88*143cm
Console gross weight: 70kgs

Our Company
High Penetration X Ray Security Scanner 5

As the biggest manufacture of security x-ray inspection system in south of China since 2003.
Welcome join SECUSCAN and cooperate with us for supplying baggage scanner, walk through metal detector, under vehicle surveillance system, explosive detector and liquid scanner.etc

Color Scanning image, small size for parcel screening
Middle size for baggage inspection, high resolution scanning image
Middle size with independent console, hotel using popular model
Big size for luggage inspecting, popular for express/Logistic company using.
Big size for luggage scanning in color image, automatic alarming for high density objects
