Product Details:
Payment & Shipping Terms:
|
| Color: | White, Blue And Others | Certificates: | ISO And CE |
|---|---|---|---|
| Penetration: | 8mm-10mm Steel | Resolution: | 38 AWG-40 AWG |
| More Different Tunnel Size Model:: | AT6040/AT6550/AT8065/AT10080/AT100100 | Color Scanning System: | Yes |
| Highlight: | x-ray baggage inspection system,baggage x ray machine |
||

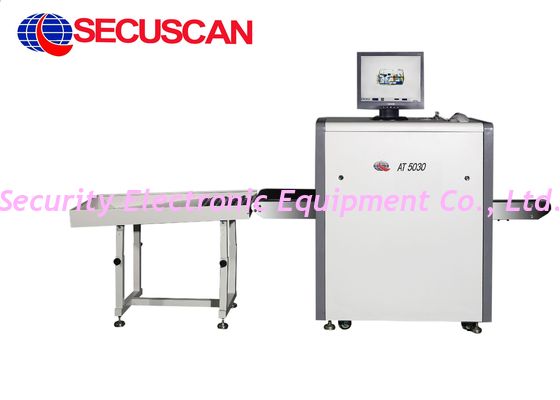

Tube voltage 80KV X Ray Baggage and Parcel Inspection Machine AT5030A
SECU SCAN X RAY SYSTEM offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on. Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items.
Model AT5030A easily accommodates the inspection of small baggage and parcels.
As the biggest manufacturer in south of China. SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD is an ISO 9001:2008, ISO14001:2004 and OHSMS18001 GB/T 28001-2001 (Occupational Health and Safety Management System) certified company. We have Radiation Safety license from China Environmental Protection Administration.
Applications:
Airports,
Transport terminals,
Buildings,
Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,
Prisons,
Hotels,
Schools ,
Convention centers,
Security checkpoints,
Special events location
Competitive Advantage:
Integrated, cost Effective, Turn-Key Security
Fit for small Baggage and Parcel Security Inspection.
Increased detection capability
Friendly interface for ease-of-use
Reliable performance and uncompromising value
Specifications:
|
Tunnel Size: |
500(W)*300(H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
100kgs |
|
Dose per Inspection: |
<2.9 μGy/h |
|
Resolution: |
<0.101mm Metal Wire |
|
Penetration: |
8mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<0.05 μGy/h (at a distance of 5cm From external housing) |
|
Generate direct: |
Upward |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
80Kv |
|
Anode power: |
0.4 to 0.5mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
|
Monitor: |
High Resolution Color, LCD Accord, 17 inch |
|
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
|
Image Grey Level: |
4096 |
|
Image Max Resolution: |
1024 * 1280 pixel |
|
Image Processing: |
24bit for processing real time |
|
Image storage: |
Storage 60000 pictures in real time |
|
Zones & Zoom: |
1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation |
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power: |
220VAC(±10%)50±3Hz |
|
Power Consumption: |
1.0 KW (max), 0.3KW(working) |
|
Noise: |
<65db |
SECU SCAN X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.
