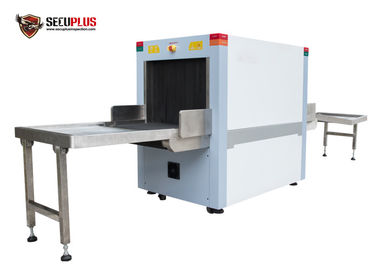

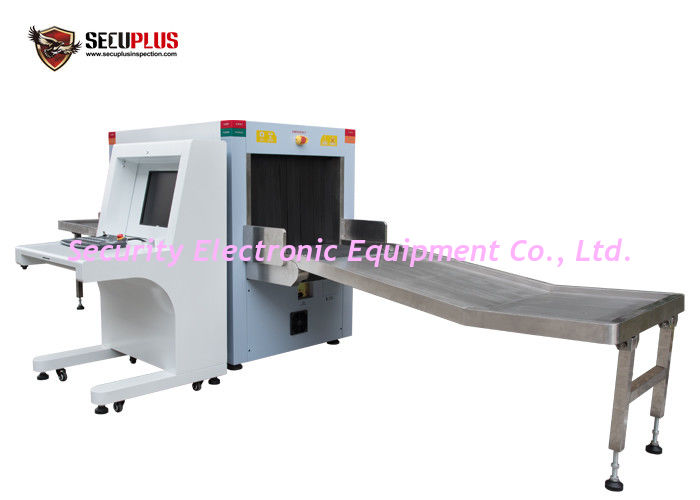

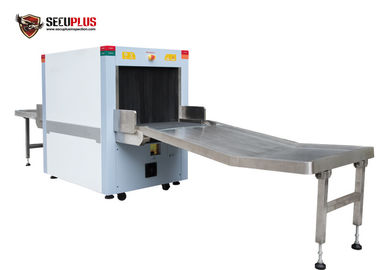

Airport X-ray Baggage And Parcel Inspection SPX6040B Luggage Scanner 160KV

small.img.alt small.img.alt small.img.alt

Large Image :  Airport X-ray Baggage And Parcel Inspection SPX6040B Luggage Scanner 160KV

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO FCC ROHS
Model Number: SPX6040B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood pallet
Delivery Time: 7 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 sets per months
Detailed Product Description
Tunnel Size: 600(W)*400(H)mm Conveyor Speed: 0.22m/S
Conveyor Max Load: 170kg Wire Resolution: 32AWG To 40AWG
Penetration: 30 To 32mm Steel Pass Rate: 720 Bags/Hour
Monitor: High Resolution Color, LCD Accord, 17 Inch Have In Stock: MORE THAN 20 UNITS
OEM: Accept Package: Plywood Pallet
High Light:

x-ray baggage inspection system


baggage x ray machine

Airport X-ray Baggage And Parcel Inspection SPX6040B Luggage Scanner 160KV

Xray Baggage Scanner Inspection Machine for hotels, building entrance, prisons, factories, airports etc


Tunnel Size 615mm×418mm
Conveyor Speed 0.22m/s
Conveyor height 680.5mm
Conveyor Max Load 170kg
X ray Dose per inspection <1.25μSv
Wire Resolution 38AWG guarantee, 40AWG typical
Spatial resolution Level: dia1.0mm, Vertical: dia1.0mm
Penetration 30mm steel guarantee, 32mm steel typical
Penetration Resolution 32AWG, the wire visible below 15.9mm thick aluminum
Film Safety guarantee ASA/ISO1600 Film
X-ray Leakage <0.5 μSv/h (at a distance of 5cm from external housing)

Image System :

Technical Principle: Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17inch
Image Display: High resolution Of 1024 * 1280 pixels; Image Grey Level: 65536
Image Enhancement: 1-64 times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and Assessment of image identification capability
Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc
Images process: 24bit real time processing, 4colors analysis, Images displayed marked date and ID NO, Count the number of bags, Memory gray level: 65536

Operating Environment:

Operation temperature/Humidity-----------0ºC-40ºC/10%-95 %( non-condensing)
Storage Temperature/Humidity----------- -20ºCto 60ºC/ 5%-95 %( non-condensing)
Operation Power---------------220VAC (±10%) 50±3Hz (Optional: 100VAC, 110VAC, 120VAC, 200VAC)
Power Consumption---------- 1.0KW (max), 0.7KW (working)
Noise---------- <58db

Dimension Size:

Dimensions (L×W×H):2007.5mm x868mm x1314 mm
Device Weight: 455Kg
G Weight: 770Kg
Packing Volume: 4.84CBM

X-ray Generator:

Anode Voltage: 140kv
Anode power: 0.3mA
Generate angle: 80 degree upward (Diagonal)
Brand: SECUSCAN (own made)
Generate direct: from bottom to top
Cooling / Duty Cycle: 100% No warm up (Oil Cooling)

Other Characters:
Detect PCB board:
UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Console optional: 17 inch DELL brand one or two monitor

Computer Character:
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
Storage: 2GB 1600MHz DDR3 Inn disk
Hard Disk: SEAGATE 500G 3.5"

Model Tunnel Size X ray Generator
SPX5030C 50*30cm own made
SPX5030B 50*30cm USA brand SPELLMAN
SPX6550 65*50cm  own made
SPX6550B 65*50cm USA brand SPELLMAN
SPX8065 80*65cm own made
SPX8065B 80*65cm USA brand SPELLMAN
SPX10080 100*80cm  own made
SPX10080B 100*80cm USA brand SPELLMAN
SPX100100 100*100cm own made
SPX100100B 100*100cm USA brand SPELLMAN
SPX150180 150*180cm USA brand SPELLMAN

Packaging & Shipping

Airport X-ray Baggage And Parcel Inspection SPX6040B Luggage Scanner 160KV 0

Company Information

Airport X-ray Baggage And Parcel Inspection SPX6040B Luggage Scanner 160KV 1

Our Services:
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
