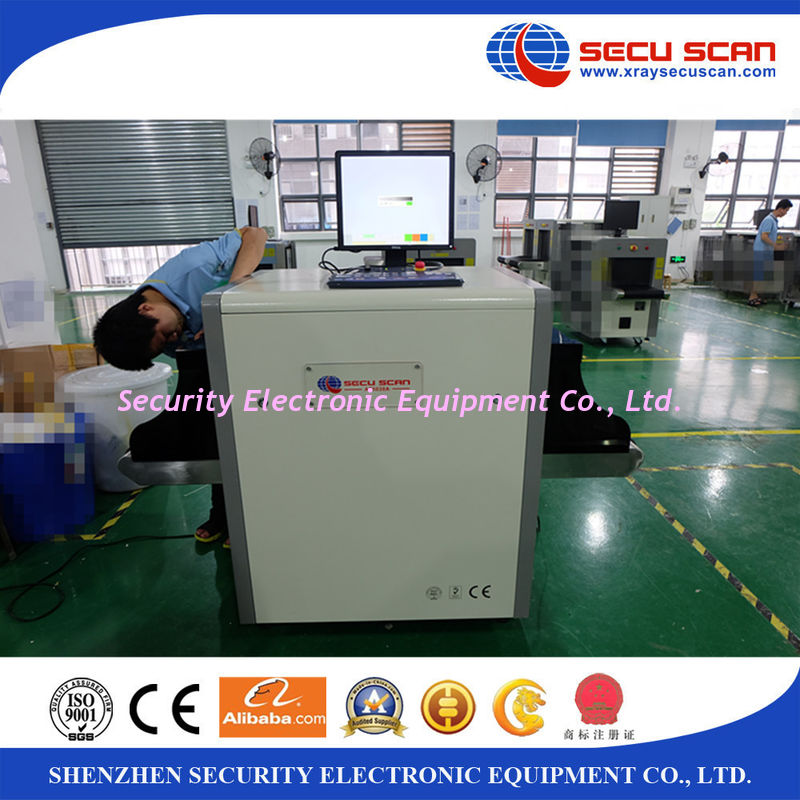

Small Size Baggage X Ray Security Scanner Support Multi Language

Small Size Baggage X Ray Security Scanner Support Multi Language
Small Size Baggage X Ray Security Scanner Support Multi Language Small Size Baggage X Ray Security Scanner Support Multi Language Small Size Baggage X Ray Security Scanner Support Multi Language

Large Image :  Small Size Baggage X Ray Security Scanner Support Multi Language

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT5030C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Tube Voltage: 140kv Conveyor Max Weight: 200kg
Training: Free Training In The Factory Installation: Very Easy
Operatoin: User Maual Attached With Machine OEM/ODM: Accepted
Tunnel Size: 1000(W)*800(H)mm Warranty: One Year Free Spare Parts, Life Time Technic Support
Penetration: 30-32mm Steel Software Interface: Support Multi Language
Highlight:

airport screening machine

,

baggage x ray machine



Small Size Baggage X Ray Security Scanner Support Multi Language



Specification





Tunnel Size                                    500(W)*300(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 150kg
Dose per Inspection <1.4Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 30-32mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)





Packing and Shipment:





Packing details

carton packing

1 set/ctn

Packing Size: (L)1820*(W)890*(H)1450mm

Gross Weight:500kg

Payment terms

T/T, Western Union, Cash,L/C

Shipping methods

By air   (5-7days, most expensive)

By express (3-7days, more expensive)

By sea    (15-28days, cheapest)







X Ray Generator:



Beam direction                   Downward
Beam angle 80 degree
Anode voltage 140kv
Anode power 0.35mA
Cooling / Duty Cycle Oil Cooling /100%





X Ray Image:



X-ray Sensor                       L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder





Installation Data:



  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.0 KW (max), 0.7KW(working)
  5. Noise: <58dB.



Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical

Advantages:

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.



Applications:





End user Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals AT6040; AT6550; AT10080; AT100100
Factories (to find needle in clothing,  shoes,  bags), AT5030; AT6040; AT6550
Courthouses, Embassies, Buildings AT5030; AT6040; AT6550
Military installations AT5030;AT6040; AT6550; AT8065; AT100100
Prisons, Hotels, Schools, Convention centers  AT5030; AT6040; AT6550; AT10080
Security checkpoints,Special events location  AT5030; AT6040; AT6550; AT8065; AT10080







Quotation will send you by your inquiry ASAP



Small Size Baggage X Ray Security Scanner Support Multi Language 0


Small Size Baggage X Ray Security Scanner Support Multi Language 1
