Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 1000*800mm | Display: | Double Monitors |
|---|---|---|---|
| Image: | Color | Voltage: | 187~240V, 50/60Hz |
| Zoom: | 64X | Detector Board: | UK Import |
| Operation: | Touch Screen Keyboard | Roller: | Input And Output |
| Warranty: | 1 Year | Software: | Multi-language |
| High Light: | airport security baggage scanners,security body scanner |
||

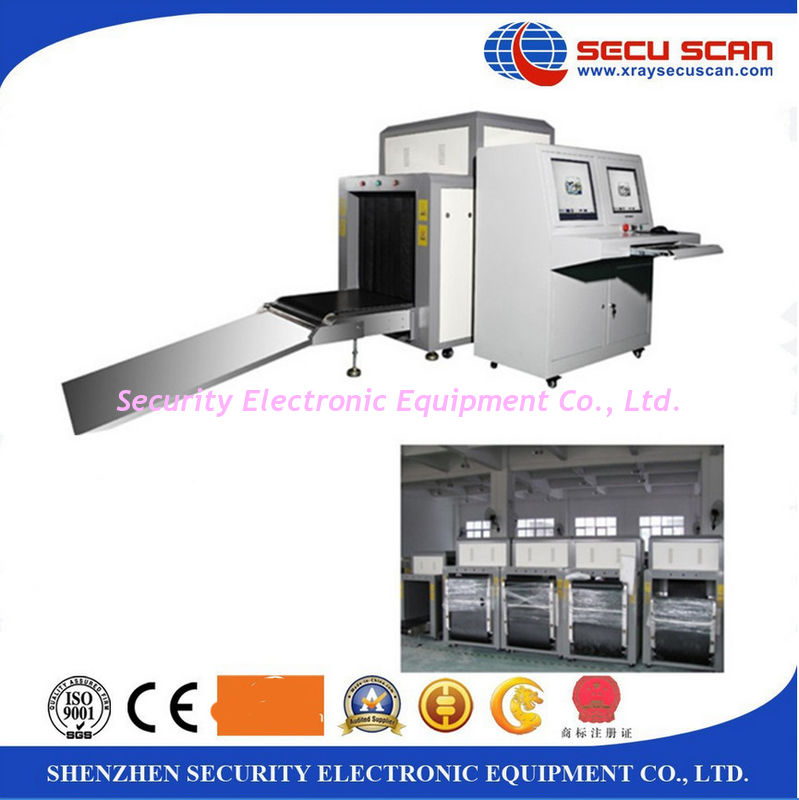

Double Monitors x-ray baggage inspection system with CE certificate
Secuscan advantages:
1. Multi-function keyboard--- F1, F2, F3 are customizable button, can set the hot function
you want or others
2. Scanner entrance and exit protective cover added.
3. Independent console in optional with addtional cost, or we can extend the cables(less than 5 meters) for putting the monitor move on the nearest desk. Then the operator can sit and better confortable than standing works.
4. Detector: we using US detectors same as Smith detection.
It makes the penenetration in 30mm steel guarantee, 32mm steel typical.
Resolution: 38 AWG guarantee, 40 AWG typical.
5. TIP function (Threat Image Projection)
6. High Density Area Alarm
7. Assist to explosive detector
8. Assist to drug detector
9. Remote control for diagnosing the problem
10. Software automatic inspection and report the problem in words in the bottom of interface.
Specifications:
|
Tunnel Size: |
1000(W)*800(H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
200kgs |
|
Resolution: |
<0.101mm Metal Wire |
|
Penetration: |
32mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<0.1μGy/h (at a distance of 5cm From external housing) |
|
Generate direct: |
downward |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
100-160Kv |
|
Anode power: |
0.4 to 1.2mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
|
Monitor: |
High Resolution Color, LCD Accord, 17 inch |
|
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
|
Image Grey Level: |
4096/65536 |
|
Image Max Resolution: |
1024 * 1280 pixel |
|
Image Processing: |
24bit for processing real time |
|
Image storage: |
Storage 100,000 pictures in real time |
|
Zones & Zoom: |
32/64Times Enlarge,Whole screen continuous observation |
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power: |
187~240VAC, 50/60Hz |
|
Power Consumption: |
0.8KW(working) |
|
Noise: |
<58db |
1. Factory training free of cost for buyers.
2. Engineer give online service from Chinese time: 8:30am to 21:30pm (Monday to Saturday)
3. Our sales group also give service by e-mail in words or photos or vedio.
4. We can send engineer to give local service for serious problem.
5. One year free spare parts replacement. Life time technical support.
We target to have zero unsolved problem. And we never give up a single customer.
