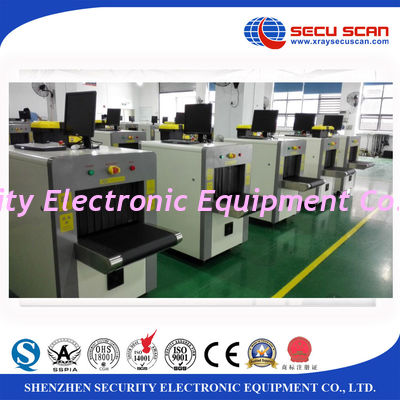

Hotel And Bank X - Ray Security Inspection System Assist To Check Threats At5030C

Hotel And Bank X - Ray Security Inspection System Assist To Check Threats At5030C

Technic specifications:

•  Tunnel Size: 503mm*303mm Capable of screening object size of 490mm(W)*290(H)mm without corner cut off
•  Dimensions: 1662mm(L)*726mm(W)*1205mm(H)
•  Flow of conveyor belt: Bidirectional(Forward and Reverse)
•  Conveyor Speed: 0.22m/s
•  Conveyor Height: 740mm from Floor
•  Conveyor Capacity: 150 kgs
•  Construction: Custom Steel Frame/Panels

Technical

•  Sensitivity: 38 AWG guaranteed, 40AWG typical
•  Spatial Resolution: 1.0 mm Horizontal, 1.0mm Vertical
•  Penetration: 30mm guaranteed, 32mm typical
•  Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level

X-Ray Generator

•  Voltage: 140KV
•  Tube Current: 0.4mA
•  Cooling: Sealed Di-Electric Oil Bath with Forced Air
•  Duty Cycle: 100%, No Warm-up Procedure Required
•   Beam Direction: Diagonally Upward
•  Detector: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Computer

•  Processor: Intel Celeron 2.6GHz 1333 MHz
•  Memory: 2 GB RAM at 800 MHz
•  Storage: 500 GB
•  Video Card: 256 MB Video Card, Dual Digital Display
•  Platform: Windows XP
•  Backup: Uninterrupted Power Supply (20min)

Video

•  Display Type: Single 17’’ LCD Color Monitor
•  Display Resolution: 1280 X 1024; 24 bit/pixel Color

Environmental

•  Operating Temperature: 0℃-45℃/20%-95%(non-condensing)
•  Storage Temperature: -20℃-60℃/20%-95%(non-condensing)
•  Humidity: Up to 95% Non-Condensing

Electrical

•  Power Requirements: 220VAC :183-253 VAC, 50 Hz. 10 Amp Max

Health and Safety

•  Compliant with CE, Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems.
•  Typical Radiation leakage is less than 0.1 mR/hr(Leakage less than 0.5 mR/hr permitted by the Federal Standard)
