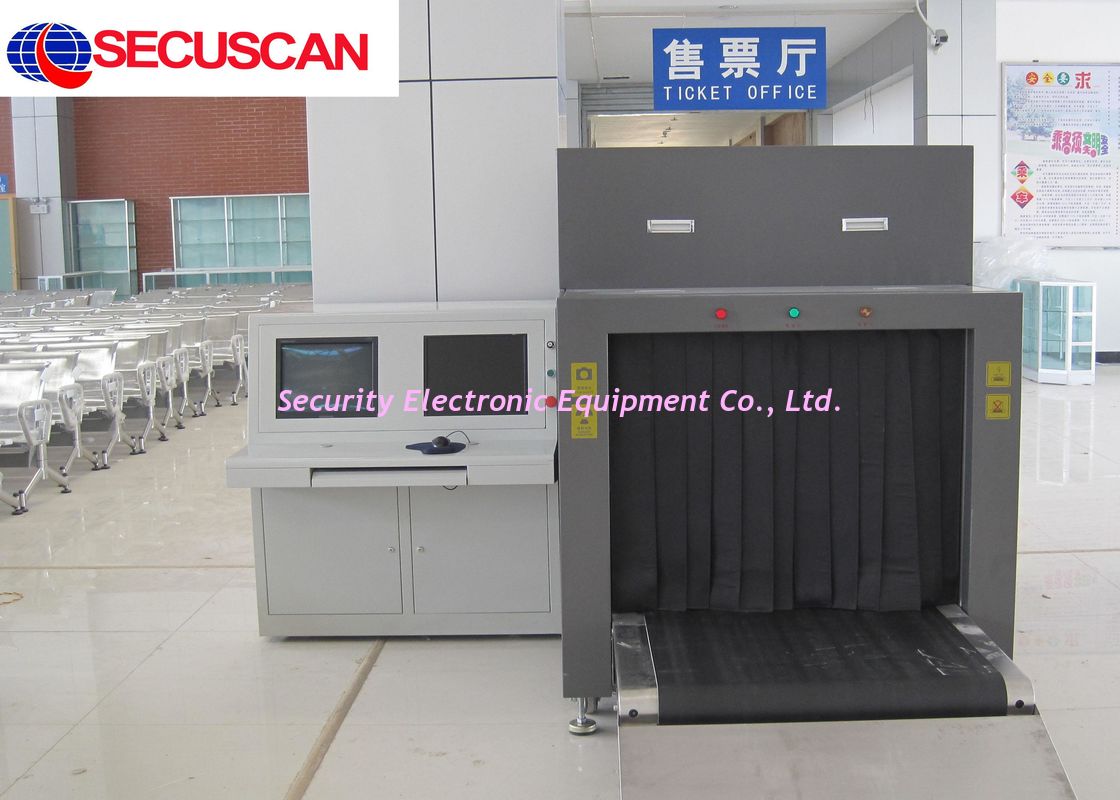

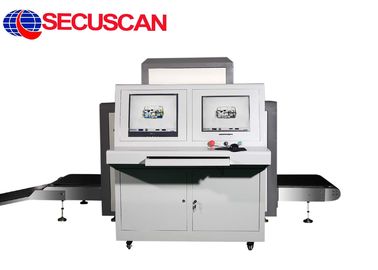

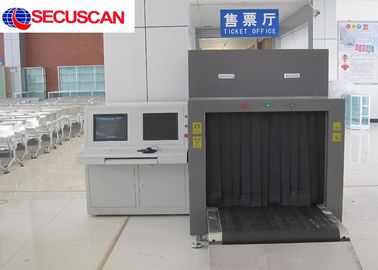

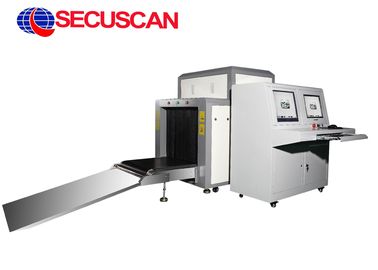

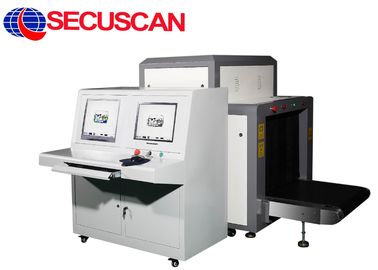

100 - 160Kv X Ray Security Luggage Screening Equipment in Airports

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

100 - 160Kv X Ray Security Luggage Screening Equipment in Airports

100 - 160Kv X Ray Security Luggage Screening Equipment in Airports
100 - 160Kv X Ray Security Luggage Screening Equipment in Airports 100 - 160Kv X Ray Security Luggage Screening Equipment in Airports 100 - 160Kv X Ray Security Luggage Screening Equipment in Airports 100 - 160Kv X Ray Security Luggage Screening Equipment in Airports

Large Image :  100 - 160Kv X Ray Security Luggage Screening Equipment in Airports

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT10080
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Detailed Product Description
High Light:

airport screening machine

,

baggage x ray machine

100 - 160Kv X Ray Security Luggage Screening Equipment in Airports





Specifications:

Tunnel Size:

1000(W)*800(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

200kgs

Dose per Inspection:

<1.7 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

34mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.1 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Downward

Generate angle:

80 degree

Anode Voltage:

100-160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening, reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.5 KW (max),  0.3KW(working)

Noise:

<58db



Applications:

Airports,

Transport terminals,

Buildings,

Factories (to find needle in clothing,  shoes,  bags),
Courthouses,
Embassies,
Military installations,

Prisons,
Hotels,
Schools ,

Convention centers,
Security checkpoints,

Special events location



Competitive Advantage:

Integrated,  cost Effective,  Turn-Key Security

Fit for small Baggage and Parcel Security Inspection.

Increased detection capability

Friendly interface for ease-of-use

Reliable performance and uncompromising value



Description:



SECU SCAN X RAY SYSTEM offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on. Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items. Model AT10080 easily accommodates the inspection of baggage and parcels. SECU SCAN X RAY SYSTEM is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad. SECU SCAN branded products received certifications of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.


As a manufacturer SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD is an ISO 9001:2008, ISO14001:2004   and OHSMS18001 GB/T 28001-2001 (Occupational Health and Safety Management System) certified company. We have Radiation Safety license from China Environmental Protection Administration.


SECU SCAN X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.
