| Software: | Multi Language And Fuctions | Images: | High Clear Color And B/W |
|---|---|---|---|
| TIP: | Inclduing Already | Extension Roller: | Optional |
| Alarm: | Sound And Vision | Penetration: | 34mm Steel |
| High Light: | airport screening machine,baggage x ray machine |
||

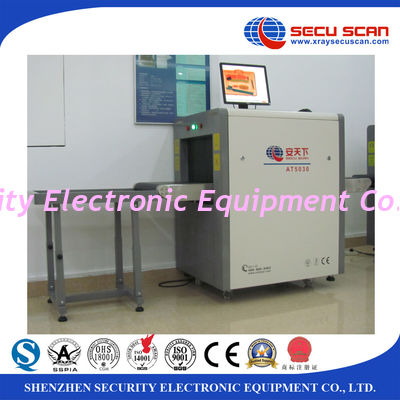

Building X Ray Baggage Screening Equipment Parcel Check AT5030C SECUSCAN
General Specification
| Tunnel Size: | 500(W)*300(H)mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 150kg |
| Wire Resolution: | 38AWG to 40AWG |
| Penetration: | 30-38mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
| X-ray Leakage: | <1 μSv/h (at a distance of 5cm from external housing) |
Installation Data
| Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity: | -20℃-60℃/20%-95%(non-condensing) |
| Operation Power: | 220VAC(±10%)50±3Hz |
| Power Consumption: | 1.0 KW (max), 0.3KW(working) |
| Noise: | <58db |
X-ray Generator
| Beam direction: Diagonal | Diagonal |
| Generate angle: | 80 degree |
| Anode Voltage: | 140Kv |
| Anode power: | 0.4 to 0.5mA |
| Cooling / Duty Cycle: | Oil Cooling /100% |
Image System
| X-ray Sensor: | L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
| Monitor: | High Resolution Color, LCD Accord, 17 inch (19 inch optional) |
| Image Processing: | Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning,image retrieval. |
| Image Grey Level: | 4096 |
| Image Processing: | 24bit for processing real time |
| Image storage: | Storage 60000 pictures in real time |
| Zoom: | max 16 Times Enlarge, Whole screen continuous observation |
Application:
Special for hotel and building,government baggage,parcel inspection
Functions:
1 Top Scanning ability
2 Stable and reliable: each machine had strict high and low temperature test, high humidity test, anti- shock test,MTBF 10000 hours
3 Automatic sensor roller (Optional)
4 Upgrade quality solution (Optional)
