Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPV-3300

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 20 working days
Payment Terms: T/T L/C
Supply Ability: 100Sets per month
Contact Now
Detailed Product Description
Power Supply: AC220V/50-60Hz Product Name: Under Car Scanning System,Under Vehicle Surveillance System
Material: Stainless Steel,Acrylic Type: Fixed Underground
Monitor: 1920*1080 Resolution Name: Under Vehicle Inspection System
Camera: Double HD Digital Camera Light Source: White LEDs
High Light:

under vehicle inspection systems

,

under vehicle monintor machine

Under Vehicle Surveillance System For Parks , Security Support Scanning

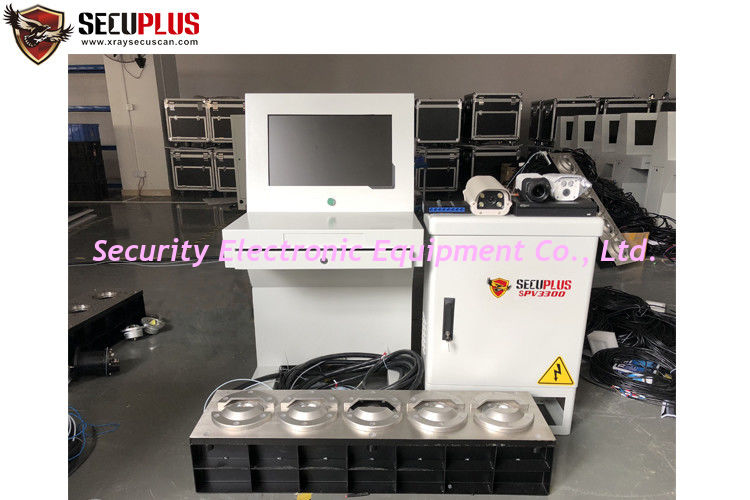

Under vehicle inspection system SPV-3300

 1,Anti terrorism,drugs,bombs weapons ,force protection and homeland security;

 2,License plate & Vehicle Recogniction;

 3,SPV-3300 is a range of Vehicle Inspection Systems that participate to damges detection,anomalies detection ;

 4,System support color scanning images displayed .



Features :

Auto digital line scan, high-resolution undercarriage imaging
High automation, easy to be used
Applicable to variety of vehicles, wide vision
Test will be completed during the vehicle maneuvers without stopping, adapted to different speed

The UVSS is able to handle vehicles moving at speed ranging from 0-40km/hr

Undercarriage image can be stored, retrieved, searched or compared with other images
A variety of image processing methods: enlarge(Magnify current and past images 4x Zoom), stretching and cutting
Multi entrance management model, management, and statistics of entering and exiting vehicles
Flexible detection process can be made on site to satisfy the needs of various work conditions
Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images
Image monitoring, video recording for different scenario
The system able to transfer the work record report to Microsoft excel sheet
Support networking and remote monitoring
System support multi language and color images displayed



Advantage of UVSS

No need to park vehicle, can bear speed below 40km/h

Whole image display ion monitor, can zoom, playback, sign in the images
Operator can zoom and save image
Inductive loop sensor





 Embedded Under Vehicle Imaging Equipment :

Camera: Sensor: line scans CCD, Resolution: 2048, Power Supply: 24VDC, 5A

Shutter speed:1/50 to 1/20000 or better
Illumination: LED, Power Supply: 24VDC, 150W
Size: 1200mm x 350mm
Operating Temperature Range: -20 °C to +60 °C
 Max Field of view :170degree ; Camera passed CE certificate
 Water-proof (IP68) Scanning Unit ,bear the weight of 40 tons



 ---------------------------------------------------------------------------------------------------------

 Controller :

  1. Input: 2 channels induction coil
  2. Output: 1 Channel switch type 24VDC
  3. Communication port: RS485, Ethernet (Optional)
  4. Operating Temperature: -10°C to 60°C

----------------------------------------------------------------------------------------------------------------------

 PC Specs :

1. CPU: Intel Centurion Duo or higher, Memory: 2G, Hard Disk: 500G

2. Display: 22” LCD, can choose a vice display to show the image independently (optional)

3. Scene Video Record: 4 channel, Compression algorithm of scene video: H264



 ---------------------------------------------------------------------------------------------------------------------------



Specifications of Number Plate Reading System :



Pickup device: 1/4 inch CCD image sensor



System of signal: PAL



Horizontal Resolution: 600TV Line



Min Illumination:0.5 lux/f1.2



Optical Zoom:27x



Digital Zoom: 10x



Backlight compensation:Auto



AGC:Auto



White balance:Auto



Electronic Shutter: 1/50-1/100000 sec

S/N Ratio :48db
