6s Hydraulic A3 Steel 219mm Automatic Rising Bollard

6s Hydraulic A3 Steel 219mm Automatic Rising Bollard
6s Hydraulic A3 Steel 219mm Automatic Rising Bollard 6s Hydraulic A3 Steel 219mm Automatic Rising Bollard 6s Hydraulic A3 Steel 219mm Automatic Rising Bollard 6s Hydraulic A3 Steel 219mm Automatic Rising Bollard

Large Image :  6s Hydraulic A3 Steel 219mm Automatic Rising Bollard

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO
Model Number: SPB-219Y
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden packing
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Detailed Product Description
Dia. Of Bollard: 219mm Material: A3 Steel
Rising Speed: 3s-6s(adjustable) Bollard Rising Height: 600mm
Communication Distance: <1200mm Bollard Host Size: L420*W420*H1100mm
Control System: Hydraulic Pump System Warranty: One Year
High Light:

219mm Automatic Rising Bollard

,

A3 Steel Automatic Rising Bollard

,

Remote Control Security Bollard 6s

Hydraulic Automatic 219mm Rising Bollard Remote Control Security Bollard

Model: SPB-219Y



Bollards designed for controlling vehicles force entry in sensitive areas.it has highest practicability,reliability and safety . Multi- configuration provided for various customer choices.

SPB-219Y bollards can be connected with Road barrier,Intelligent charging system and Time attendance systems.To realize perfect access control management systems.




Highlight:

  • Easy installation;
  • Stop unauthorized vehicle intrusion;
  • Effective solution to vehicle attack;
  • Additional manual hand pumps facility, in case power failure;
  • Integrated temperature control device;
  • Able to prevent high tonnage vehicles at high speeds;
  • Design for high security and high traffic applications;
  • Connection to existing barriers, Vehicle Scanning systems, etc;(Optional)
  • Control multi systems through one workstation (Optional)


Specifications:


1 Power
380V three-phase (control voltage 24V)
2 Operating Temperature -25°C~75°C
Waterproof, Dustproof
3 System Power 1.5KW/2.2KW/3.7KW
4 Up&down time 3~6 seconds(can be adjustable)
5 Parts of Bollards 1,Bollards Body
2,Automatical Control Board
6 Dia.of bollards 219mm ±2mm
7 Communication Distance ≤1200mm
8 Thickness size 6mm (can be customized with additional cost)
9 Communication
Connection
RS485
10 Material A3 Carbon Steel&304 steel
11 Color Various color optional
12 Bollard Host Size L420*W420*H1100mm
13 Bollard rising height 600mm ( can be customized with additional cost)
14 Max Pressure 70 ton container
15 Temperature -40ºC~ 60ºC
16 Hydraulic cylinder HOB63-600CA+1(industrial grade)
17 Pump Type Vane Pump
18 Controller Remote control/keyboard
19 Applications                   Subway Station, Hoverport, Tourism Sports,Exhibition,Residence Area


Functions and Features:

---Durable, Overload, Operate Smoothly, Low Noise, Fast speed up&down
---Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
---Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
---Advanced Hydraulic pressure technologies
---Remote control system realize wireless control up&down within 30 meters range
---Customized for different users requests
---Manual control hydraulic system devices
---Swiping card system: built-in card reader to control bollards up&down(optional)
---Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card(optional)
---Connected with Computer Management OR Charging Systems(optional)




Application:

Prisons, Military Checkpoints, Boarder, Airports, Seaports, Embassies, Bank, Government buildings, Nuclear power plants, etc



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.

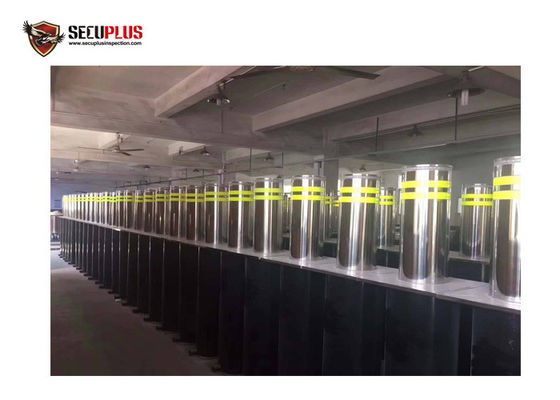

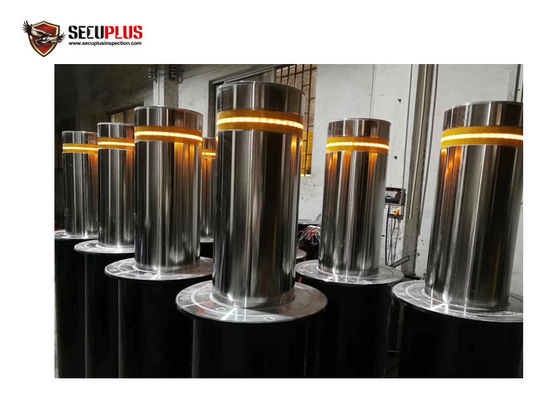

6s Hydraulic A3 Steel 219mm Automatic Rising Bollard 0
