Product Details:
Payment & Shipping Terms:
|
| Length: | 2-6m Optional Optional | Intercept Width: | 2700mm |
|---|---|---|---|
| Waterproof: | IP68 | Control System: | Hydraulic Pump System |
| Warranty: | One Year | Material: | Stainless Steel |
| Rising Speed: | <5s(adjustable) | Anti-collision: | K12 Level |
| High Light: | 5s Hydraulic Road Blocker,6m Length Hydraulic Road Blocker,5.5kw Anti Terrorist Road Blocker |
||

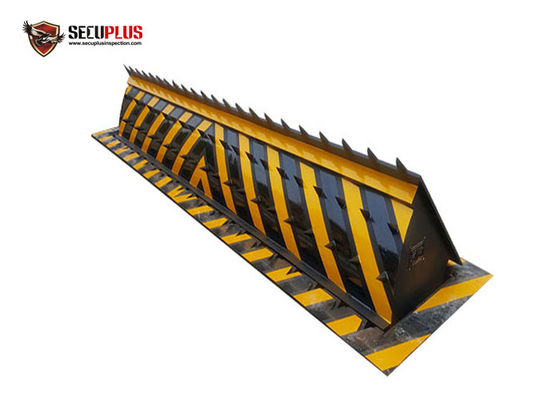

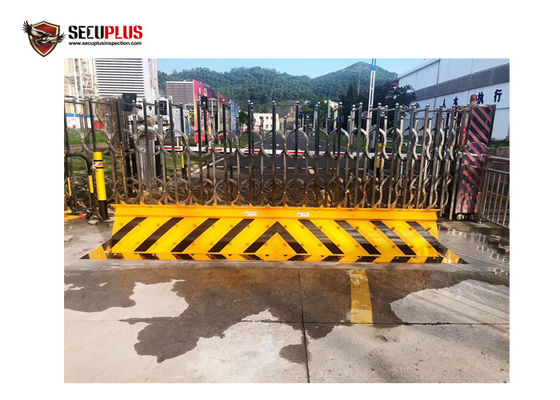

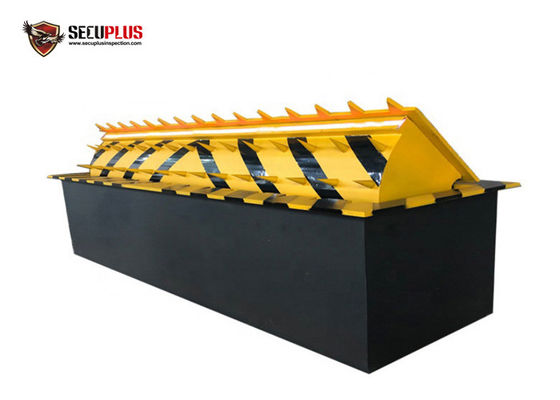

K12 Level Anti Terrorist Hydraulic Road Blocker Traffic Access Control System
Model: SPB-206W
Hydraulic road blocker/barricade series are widely used in HIGHWAY TOLL STATION,CHECKPOINTS,PRISONS,
AIRPORTS,GOVERNMENT AGENCIES,EMBASSIES,MILITARY BASESTATION,CUSTOM PORTS,BANKS,
INDUSTRIALA AND MINING COMPANIES,PORTS,WEARHOUSE PARKING LOTS and all requests to control
vehicle in and out restrict traffic places
Technical Specifications:
| 1 | Power | 3phase/380V Control voltage 24V |
| 2 | Operating Temperature |
-10°C~65°C Waterproof, Dustproof |
| 3 | System Power | 1.5KW/2.2KW/3.7KW/5.5kw(heavy-duty) |
| 4 | Up&down time | 3~6 seconds(can be adjustable) |
| 5 | Parts of Blockers |
1,Blocker Body 2,Automatical Control Board 3,Hydraulic Pressure Integration |
| 6 | Dia.of blockers |
168mm ±2mm 220mm ±2mm 275mm ±2mm |
| 7 | Communication Distance | ≤1200M |
| 8 | Thickness size | 10mm ±1mm Optional |
| 9 | Communication Connection | RS485 interface |
| 10 | Material | A3 steel, spray anti-rust paint; |
| 11 | Colour | Various color optional |
| 12 | Applications |
Highway Charging,Airport,Gov. Military Area,Banks,Ports&Embassy |
Functions and Features :
1.Advanced mature Hydraulic pressure technologies
2.Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
4. Controller display : LCD and LED
5.Remote control system realize wireless control up&down within 30 meters range
6.Customized for different users requests
7.Connected with Computer Management OR Charging Systems
8.Swiping card system: built-in card reader to control bollards up&down
9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
