Product Details:
Payment & Shipping Terms:
|
| Length: | 2-6m Optional | Material: | A3 Steel |
|---|---|---|---|
| Rising Speed: | <5s(adjustable) | Intercept Width: | 2700mm |
| Waterproof: | IP68 | Anti-collision Level: | K12 |
| Control System: | Hydraulic Pump System | Warranty: | One Year |
| Highlight: | Hydraulic Road Blocker A3 Steel,3m Hydraulic Road Blocker,IP68 Steel Road Blocker |
||

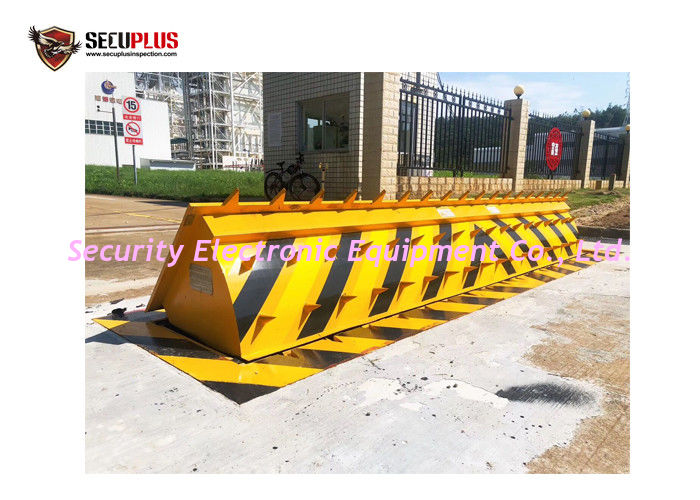

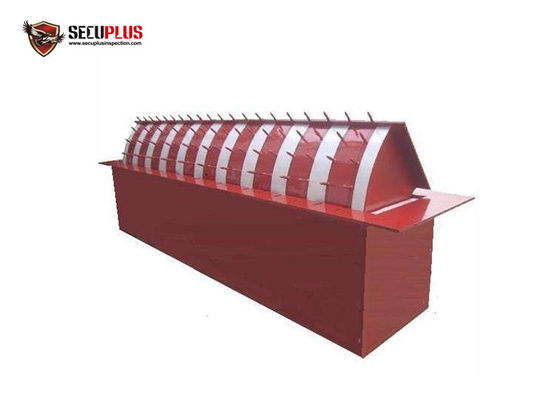

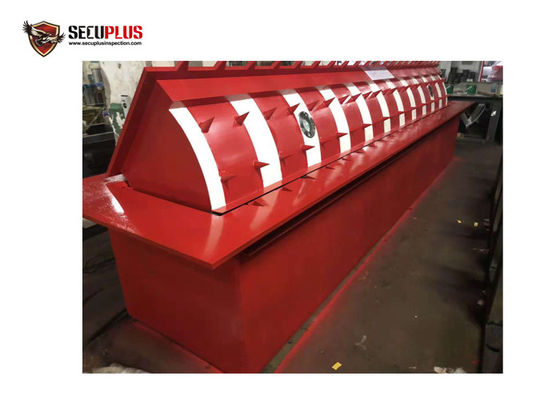

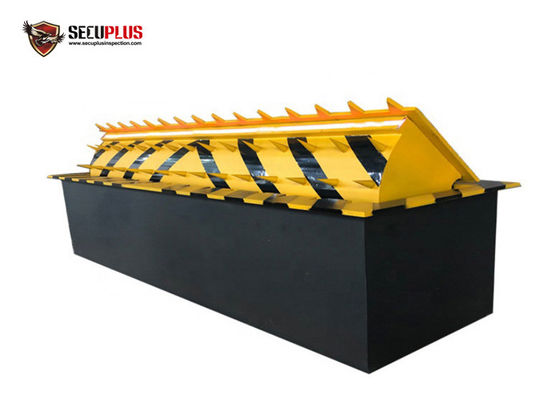

IP68 Automatic 3m Hydraulic Road Blocker With Spike For Anti Terrorism
Model: SPB-206W
Functions and Features :
1.Advanced mature Hydraulic pressure technologies
2.Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
4. Controller display : LCD and LED
5.Remote control system realize wireless control up&down within 30 meters range
6.Customized for different users requests
7.Connected with Computer Management OR Charging Systems
8.Swiping card system: built-in card reader to control bollards up&down
9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
Technical Specifications:
| 1 | Power | 3phase/380V Control voltage 24V |
| 2 | Operating Temperature |
-10°C~65°C Waterproof, Dustproof |
| 3 | System Power | 1.5KW/2.2KW/3.7KW/5.5kw(heavy-duty) |
| 4 | Up&down time | 3~6 seconds(can be adjustable) |
| 5 | Parts of Blockers |
1,Blocker Body 2,Automatical Control Board 3,Hydraulic Pressure Integration |
| 6 | Dia.of blockers |
168mm ±2mm 220mm ±2mm 275mm ±2mm |
| 7 | Communication Distance | ≤1200M |
| 8 | Thickness size | 10mm ±1mm Optional |
| 9 | Communication Connection | RS485 interface |
| 10 | Material | A3 steel, spray anti-rust paint; |
| 11 | Colour | Various color optional |
| 12 | Applications |
Highway Charging,Airport,Gov. Military Area,Banks,Ports&Embassy |
Applications:
Highway Charging,Airport,Gov.
Military Area,Banks,Ports&Embassy
Boarder, High security level base
![]()
![]()
