| Rising Speed: | <5s(adjustable) | Intercept Width: | 2700mm |
|---|---|---|---|
| Waterproof: | IP68 | Anti-collision Level: | K12 |
| Length: | 2-6m Optional | Material: | Stainless |
| High Light: | 1.5KW Automatic Hydraulic Road Blocker,5s Automatic Hydraulic Road Blocker,IP68 Hydraulic Road Blocker |
||

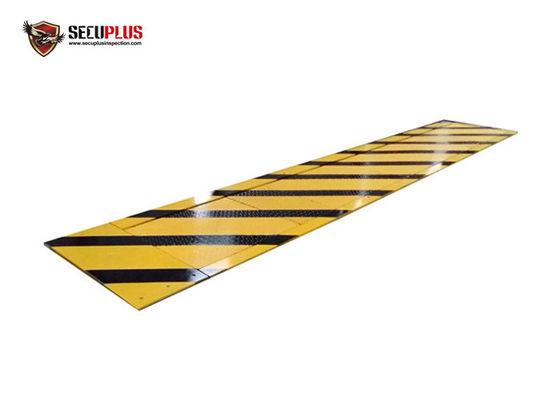

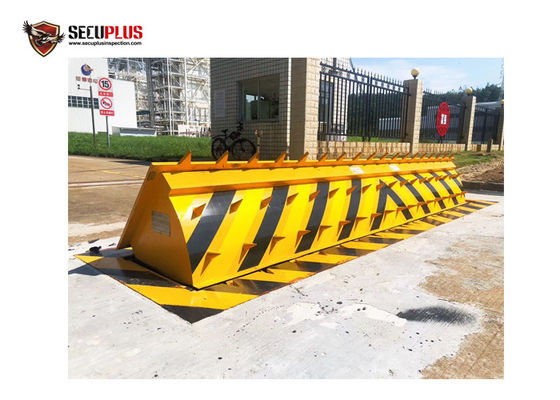

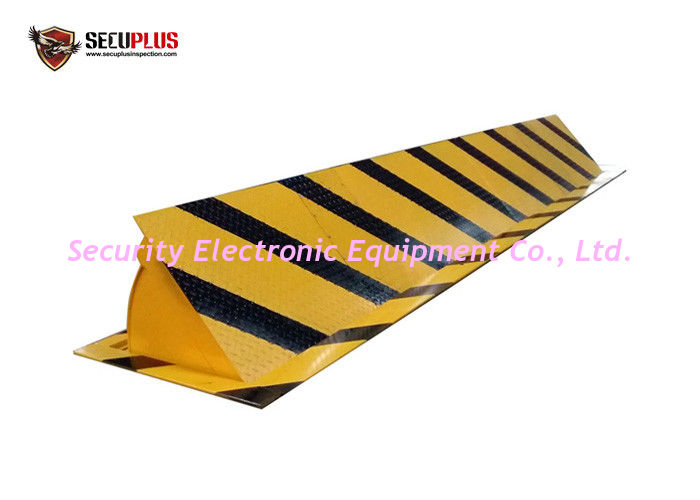

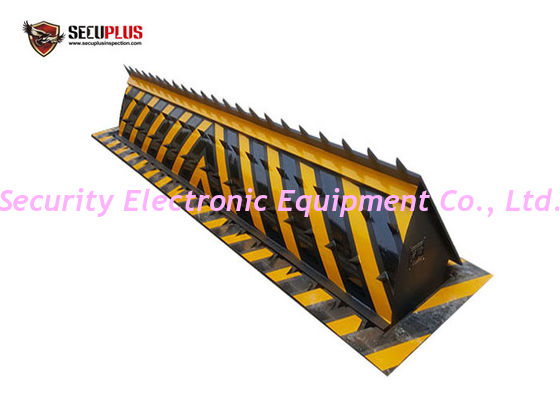

IP68 Anti Terrorist Automatic Hydraulic Road Blocker Access Control System
Model: SPB-206W
Hydraulic road blocker/barricade series are widely used in HIGHWAY TOLL STATION,CHECKPOINTS,PRISONS,
AIRPORTS,GOVERNMENT AGENCIES,EMBASSIES,MILITARY BASESTATION,CUSTOM PORTS,BANKS,
INDUSTRIALA AND MINING COMPANIES,PORTS,WEARHOUSE PARKING LOTS and all requests to control
vehicle in and out restrict traffic places
Technical Specifications:
| 1 | Power | AC220C/380V |
| 2 | Operating Temperature |
-10°C~65°C Waterproof, Dustproof |
| 3 | System Power | 1.5KW/2.2KW/3.7KW/5.5kw(heavy-duty) |
| 4 | Up&down time | 3~6 seconds(can be adjustable) |
| 5 | Parts of Blockers |
1,Blocker Body 2,Automatical Control Board 3,Hydraulic Pressure Integration |
| 6 | Dia.of blockers |
168mm ±2mm 220mm ±2mm 275mm ±2mm |
| 7 | Communication Distance | ≤1200M |
| 8 | Thickness size | 10mm ±1mm Optional |
| 9 | Communication Connection | RS485 interface |
| 10 | Material | A3 steel, spray anti-rust paint; |
| 11 | Colour | Various color optional |
| 12 | Applications |
Highway Charging,Airport,Gov. Military Area,Banks,Ports&Embassy |
Functions and Features :
1.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
2.Advanced mature Hydraulic pressure technologies
3.Remote control system realize wireless control up&down within 30 meters range
4.Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
5.Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
6.Customized for different users requests
7.Controller display : LCD and LED
8.Swiping card system: built-in card reader to control bollards up&down
9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
10.Connected with Computer Management OR Charging Systems
