Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO9001
Model Number: SPX-150180D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Packing
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Tunnel Size: 1500*1800mm Conveyor Load: 2000kg
Material: Stainless Steel Steel Penetration: 50mm
Software Interface: Multi-language Computer System: Windows 7
Technical Support: Life Time Warranty: 12 Months
Beam Direction: Vertical And Horizontal
High Light:

3KVA X Ray Pallet Inspection System

,

IP43 X Ray Pallet Inspection System

,

0.20m/s X Ray Baggage Scanner

dual view x ray pallet inspection system with alarm for explosive in customs, airport

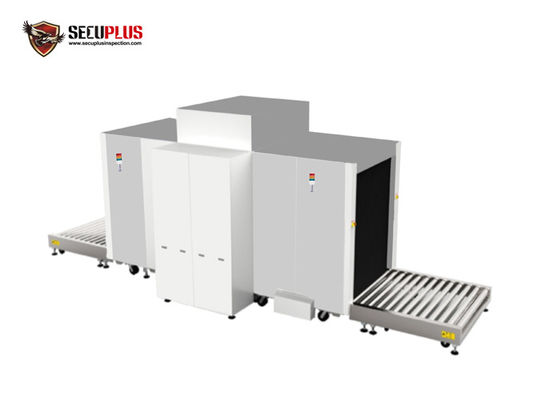

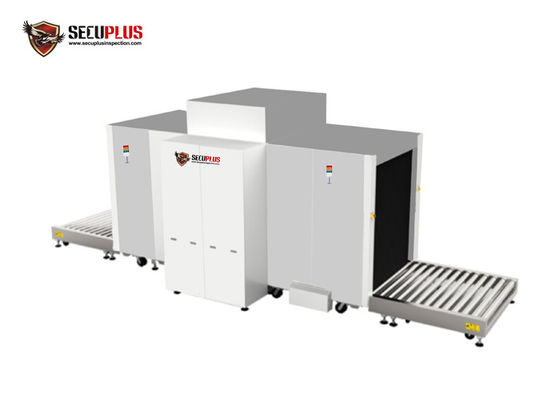

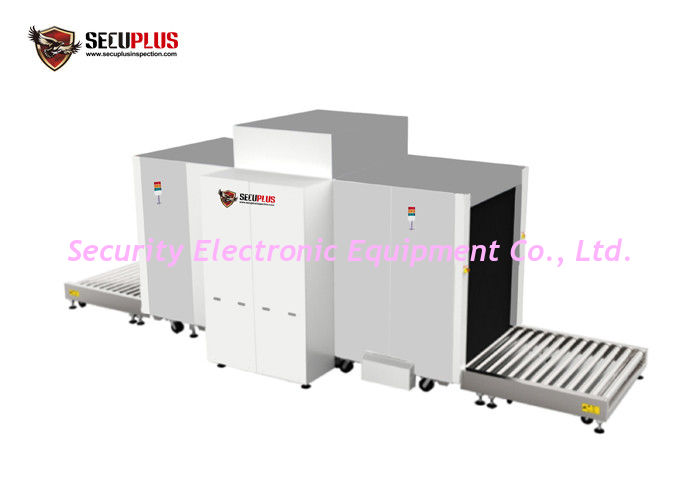

SECUPLUS SPX-150180DV is multi-energy dual view x ray security inspection system for cargo scanning and pallet items. It powerful to deal with big size luggage at 150cm width, and 180cm height. It provides high resolutionand ultra-clear images for easy object identification with the latest technology of computer control and image processing. A good choice for pallet goods



High Light:


Powerful image dealing ability;
Accurate Z7,Z8,Z9 mark for explosive and narcotics;
Windows 7 operation system;
Automatic save scanned image;
Friendly operation System;
Reliable performance.



Technical characteristics:
Duel energy penetration system;
TIP program;
Clear and distinct image;
Scanned imaged can zoom up to 64 times;
Partly zoom up to 3 times;
13 kinds of image processing functions and 6 kinds of pseudo color;



Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.



Tunnel size 1516mm*1810mm (W*H)
Frame Size 7600*2450*2847mm(L*W*H)
Conveyor speed 0.20m/s, bi-direction scan,
Conveyor height 358mm (accept customized height )
Max Load 2000kgs
Wire Resolution 40AWG (0.0787 mm copper wire)
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 50mm standard, 48mm typical
Monitor 2 piece 21.5 inch,High resolution 1280*1024
X Ray generator anode voltage 200KV (Working at 180KV)
Cooling/operation cycle Oil Cooling /100%
X ray dose per inspection <0.5μSv
X ray generator 2 units ,
Beam direction Vertical and horizontal (view A from top to bottom,View B from side)
Image processing color/black & white image, Negative Image, High Penetration, Low penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image, Pseudo color, 90-degree rotation images, organic/in-organic stripping
Zoom Variable zoom up to X64, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100,000 image
Radiation leakage <1 USv/h (5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System protective class IP20
Operation control panel protective class IP43
System function F1,F2,F3 programmable key, high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Mechanical Construction Steel construction with steel panels, mounted on roller castors, easy to move
Optional function Video surveillance system, LED prompt screen, voltage stabilizer, UPS back up
Weight N.W: 5500kgs, G.W: 6000kgs
Environment temperature/humidity - 10℃~+45℃ / 5%~95%(non-condensing)
Storage temperature/humidity -40℃~+60℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50/60HZ
Consumption 3KVA
Noise Level <55db



Our Services :



1. Operation training program for end users

2. Free of factory training for engineer from agents to end user

3. Provide on-site trainning when customer requires

4. If quality problems happen in guarantee period, our company will maintain for free.

5. One year free spare parts and life time technical support

6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.

7. If you are caught in some problems when using our products, welcome to contact us at any time.
