33 Zones MBSU Battery IP67 15w Door Frame Metal Detector

I'm Online Chat Now

33 Zones MBSU Battery IP67 15w Door Frame Metal Detector

small.img.alt small.img.alt

Large Image :  33 Zones MBSU Battery IP67 15w Door Frame Metal Detector

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SECU PLUS
Certification: CE,ISO,FCC
Model Number: SPW-300S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable

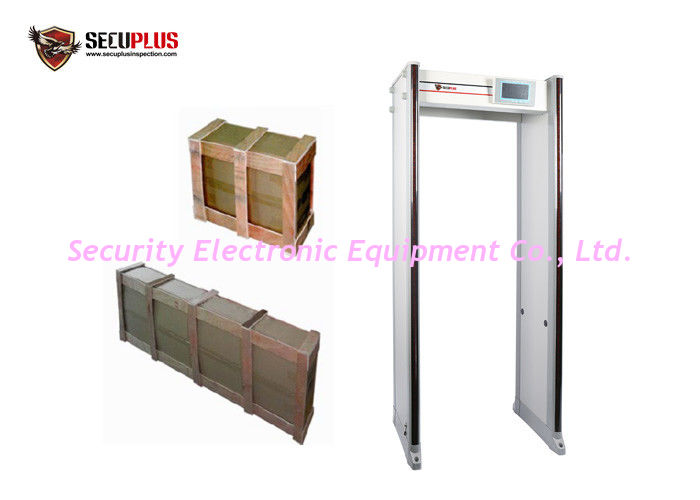

Packaging Details: carton box
Supply Ability: 500+units+per month
Detailed Product Description
Operation Way: Remote Control And Keyboard Pinpoint Zones: 33 Standard, 45(optional)
Electric Current: 100V To 250V Power: 15w
Waterproof: IP67 Outer Frame: 2210*880*600mm
Inner Frame: 2010*760*600cm Display: LCD Display
High Light:

15w Door Frame Metal Detector


IP67 Door Frame Metal Detector


MBSU Battery Metal Detector Gate

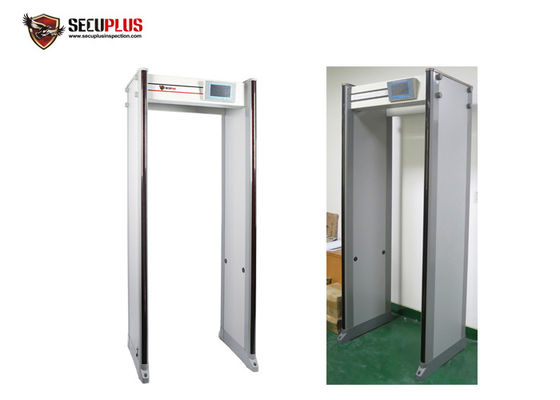

33 Zones Security Gate Door Frame Walk Through Metal Detector Gate

Model: SPW-300S



Technical Specification:



Electrical current AC100V~230V 50/60Hz
Power 15W
Work environment -20℃~+45℃
Gross Weight 70kg
Outer frame 2220mm (h) x 820mm (w) X 522mm (d)
Inner frame 2000mm (h) X 700mm (w) X 522mm (d)







1. Self-diagnostic procedures
2 Input MBSU battery backup, in time power transfer
3 Modular structure easy for after sales service
4 Automatically adapt to the working environment
5 Auto scan environmental interference at site
6 LCD friendly operation interface for user
7 Automatically calibration
8 Operation way: remote control
9 Two or four LED light bars on both door panels: gives alarm corresponding to the height or human body.
10 Detect zone: can adjust 1,6,11, up to 33 zones, optional 45 zones
11 Sensitivity adjustable from Level 0 to300 High: Can detect a clip
12  Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
13 Shock proof to avoid false alarm
14 Sound and light alarm
15 Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
16 Tamper-Proof: operate program is protected by password.
17 Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
18 Connect with computer, camera, turnstile(Optional)




In accordance with: EN60950, WN50081-1, And EN50082-1
CE Certificate; ISO 9001:2000 Certificate, National standard

can easily detect weapons, such as knife and gun, and any metal article

which is hidden in human body



Company profile:


The manufacturer of threats detecting device in south of China.
With professional R&D engineer team are specialized in:
  • Under vehicle inspection system(new)-mirror & camera
  • Explosive and Drug trace detection(new)
  • Dangerous liquid scanner(new)
  • X-ray screening system for baggage
  • Walk through metal detectors
  • Hand held metal detector
We have successful cases in airports,customs and government, important events for protection.
The reliable military supplier of security screening system..
Our service:
  1. Professional reply for your question in time before-sales during Monday to Friday in 24 hours
  2. All of our product already get passing the aging test to ensure reliability quality
  3. Quality inspection department will check the machine again before packing.
  4. One year spare parts in free for replacing the broken after delivery
  5. Remote control the machine for diagnosing
  6. Technic support by video and telephone
  7. Accept your engineer come to our factory for training free of cost
  8. Send engineer to your country if necessary with additional cost.
