45 zones MBSU battery IP67 15w Walk Through Metal Detector

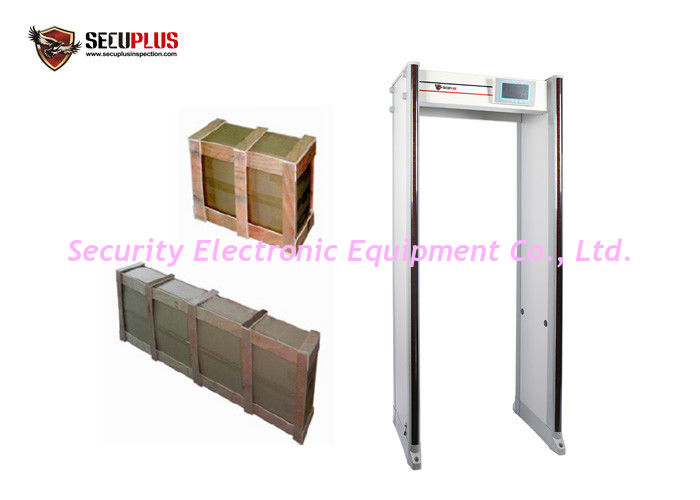

Large Image : 45 zones MBSU battery IP67 15w Walk Through Metal Detector

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SECU PLUS
Certification:	CE,ISO,FCC
Model Number:	SPW-300S

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	carton box
Supply Ability:	500+units+per month

Contact Now

Detailed Product Description

Outer Frame:	2210880600mm	Inner Frame:	2010760600cm
LED Bars:	2 Front	Operation Way:	Remote Control And Keyboard
Pinpoint Zones:	33 Standard, 45(optional)	Electric Current:	100V To 250V
Power:	15w	Waterproof:	IP67
Highlight:	15w Walk Through Metal Detector , IP67 Walk Through Metal Detector , MBSU Battery Archway Metal Detector

IP67 Waterproof Walk Through Metal Detector Gate With In Built Battery

Model: SPW-300S

Technical Specification:

Electrical current	AC100V~230V 50/60Hz
Power	15W
Work environment	-20℃~+45℃
Gross Weight	70kg
Outer frame	2220mm (h) x 820mm (w) X 522mm (d)
Inner frame	2000mm (h) X 700mm (w) X 522mm (d)

Features:

1.	Self-diagnostic procedures
2	Input MBSU battery backup, in time power transfer
3	Modular structure easy for after sales service
4	Automatically adapt to the working environment
5	Auto scan environmental interference at site
6	LCD friendly operation interface for user
7	Automatically calibration
8	Operation way: remote control
9	Two or four LED light bars on both door panels: gives alarm corresponding to the height or human body.
10	Detect zone: can adjust 1,6,11, up to 33 zones, optional 45 zones
11	Sensitivity adjustable from Level 0 to300 High: Can detect a clip
12	Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
13	Shock proof to avoid false alarm
14	Sound and light alarm
15	Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
16	Tamper-Proof: operate program is protected by password.
17	Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
18	Connect with computer, camera, turnstile(Optional)

Standard:

In accordance with:

EN60950, WN50081-1, And EN50082-1

CE Certificate;

ISO 9001:2000 Certificate, National standard

Function:

can easily detect weapons, such as knife and gun, and any metal article

which is hidden in human body

Company profile:

The manufacturer of threats detecting device in south of China.

With professional R&D engineer team are specialized in:

Under vehicle inspection system(new)-mirror & camera
Explosive and Drug trace detection(new)
Dangerous liquid scanner(new)
X-ray screening system for baggage
Walk through metal detectors
Hand held metal detector

We have successful cases in airports,customs and government, important events for protection.

The reliable military supplier of security screening system..

Our service:

Professional reply for your question in time before-sales during Monday to Friday in 24 hours
All of our product already get passing the aging test to ensure reliability quality
Quality inspection department will check the machine again before packing.
One year spare parts in free for replacing the broken after delivery
Remote control the machine for diagnosing
Technic support by video and telephone
Accept your engineer come to our factory for training free of cost
Send engineer to your country if necessary with additional cost.
