Waterproof 12W LCD Display 24 Zones Archway Metal Detector

I'm Online Chat Now

Waterproof 12W LCD Display 24 Zones Archway Metal Detector

China Waterproof 12W LCD Display 24 Zones Archway Metal Detector supplier
Waterproof 12W LCD Display 24 Zones Archway Metal Detector supplier Waterproof 12W LCD Display 24 Zones Archway Metal Detector supplier Waterproof 12W LCD Display 24 Zones Archway Metal Detector supplier

Large Image :  Waterproof 12W LCD Display 24 Zones Archway Metal Detector

Product Details:

Place of Origin: China
Brand Name: SECU PLUS
Certification: CE ISO
Model Number: SPW-300P

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 7 working days after receving your full payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300 per month
Contact Now
Detailed Product Description
External Dimension: 2250*850*500mm Passage Dimension: 2051*710*500mm
Gross Weight: 40kg Have In Stock: Yes
Zones: 24 Detecting Zones Package Size: 948x666x525mm
High Light:

24 Zones Archway Metal Detector


LCD Display Archway Metal Detector


12W Walk Through Archway Detector

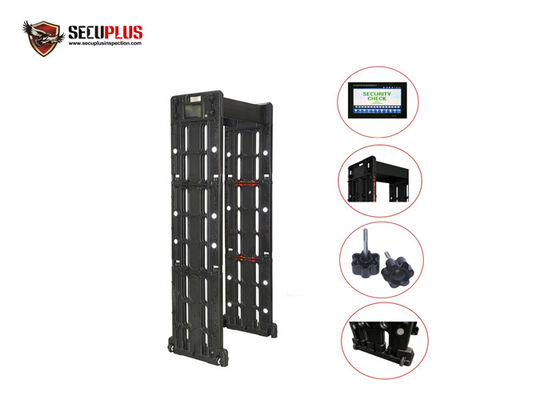

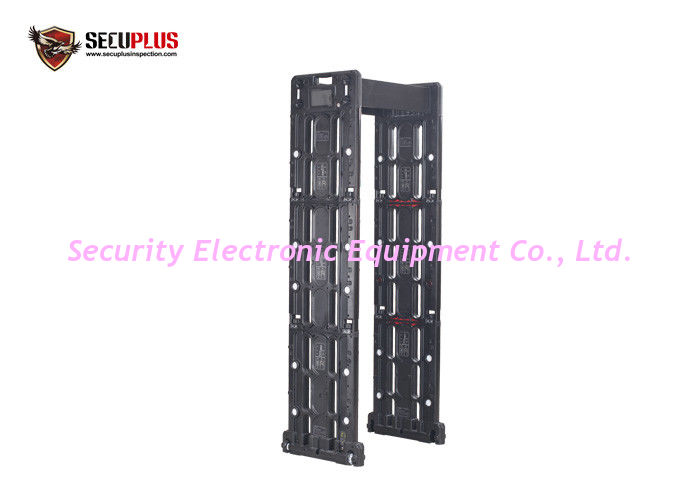

24 Zones Portable Archway Walk Through Metal Detector Gate With LCD Display


Portable walk through metal detector as one portable and high performance metal detector can be movable, waterproof and portable. It can be taken to any where by one person and ca be installed in five minutes to work. This model can be used in gym, conference hall, school. And it be operated easily no need more training.


This model obtained surface patent and software system registration property. This model detect metals by electromagnet and alarmed by sound and light if metals overload. It contains CPU, generator, signal receiver, infrared ray sensor. Beautiful surface, strong detecting, more detecting zones, internet remote control management system and waterproof. It can be disassembly parts for better taken and transferred. It’s leader of portable walk through metal detector in the market.


Advanced technology


  • Multi-detecting zones technology: 8,16,24 detecting zones, it can be shifted and selected intelligent(more zones update technology can be supported) .
  • Working frequency: Super range working frequency(0-120),and working environment adaptive function
  • Sensitivity of detecting zone: Sensitivity of single detecting zone can reach 355 grade(adjustable).
  • Mobile connect technology: Can be controlled by mobile APP.
  • Super housing protection technology: IP67 excellent protection(selectivity)
  • Self-adaption diagnosis system: When turn on, system will detect adaptively hardware working status.


Product advantage


  • Adjustment system: System can adjust detecting standard
  • Start and stop technology: Red infrared device own automatic start and stop technology. It can adds 100 times lifespan.
  • Sensitivity of each zone can be adjusted(own adjustment technology)
  • Detecting zones quantity can be selected by yourself
  • Sound and light alarm. Alarm tones and time can be arbitrarily adjusted.
  • Enquiry function: System provided actual time information enquiry function
  • Detecting capacity: Can detect more than one hundred persons in one minute
  • Detecting target: Contraband goods, more magnet metals


Vertical outside size 2250x850x500mm
Tunnel Size 2051x710x500mm

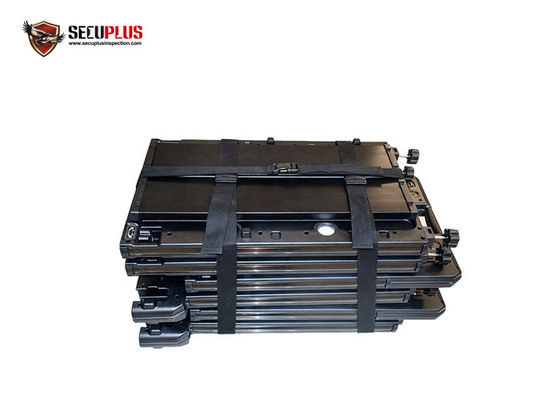

Fold size 889x606x484mm
Package size 948x666x525mm
Working humidity 99%, no condensing
Working temperature -40℃~85℃
Input AC 110V~240V/50HZ~60HZ

DC 12V/5A 12W

Weight N.W 42KG,G.W 50KG


Function selection(optional)

In order to satisfy customers’ requirements, this model kept more humanity function for customer’s select. Like: measure body temperature system, visual conversational system, passenger detecting video system, face recognition system and etc. More function can be developed according to requirements.
