Fever Screening Thermal Camera Infrared Thermometer Gate 10W

China Fever Screening Thermal Camera Infrared Thermometer Gate 10W supplier

Large Image :  Fever Screening Thermal Camera Infrared Thermometer Gate 10W

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPW-ⅢDT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: within 3 working days after receive your payment
Payment Terms: L/C, L/C, T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Temperature Deviation: 0.2-0.5 Temperature Sensor: Silicon Oxide Un-cooled Infrared Focal Plane Detector
Alarm: Sound And LED Lights Alarm Checking Distance: 0.1-50cm
Warranty: 12 Moths Zones: 6/18 Optional
High Light:

Fever Screening Infrared Thermometer Gate

,

Thermal Camera Infrared Thermometer Gate

,

10W Metal Walk Through Gate

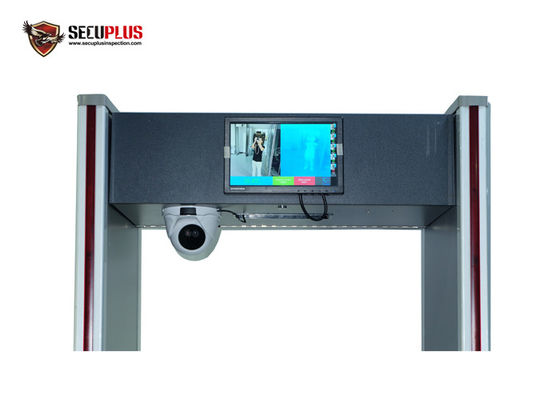

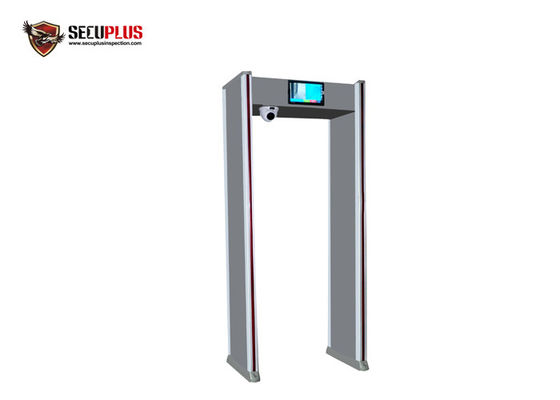

Thermal Camera Temperature Check Walk Through Metal Detector For Fever Screening

Model: SPW-IIIDT





Alarm for Metal threats:

  • Multiple target locations from head to toe;
  • 6/18 zones overall inspection;
  • Extremely high sensitivity to detect tiny threats;
  • Shock proof to avoid false alarm;
  • Automatically adapt to Environmental magnetic field;





Alarm for Fever Visitors:



  • Accurately test body temperature;
  • Non-contact fast detect temperature;
  • Show temperature and alarm for fever;
  • Actively track moving people’s face;
  • Temperature deviation: 0.3 ℃;
  • Distance: 0.8-3.0 Meter
  • Working temperature: -10 to 50 ℃



Characteristic

  1. High resolution monitor show visitor photo and temperature.
  2. Automatically detect temperature, no need waiting;
  3. Quick response, detect body temperature in 1 second;
  4. Audible alarm for high temperature passengers;
  5. Non-contact temperature sensor, avoid cross infection;
  6. Indoor use, please avoid high temperature and direct sunlight;
  7. Can detect ferrous and non-ferrous metal articles.
  8. Four light bars show metal threats location, visible from any angle;
  9. Metal Detector sensitivity adjustable from 1-300;
  10. Different volume alarm for metal threats;
  11. Alarm language: English, French, Italy, German, Spanish, German, Traditional Chinese
  12. 7*24h Non-stop working
  13. Easy installation



Technical specification



Electrical current AC100V~240V 50/60Hz
Power 10W
Work environment -20℃~+45℃
Gross Weight 70kg
Outer frame 2220mm (h) x 820mm (w) X 522mm (d)
Inner frame 2000mm (h) X 700mm (w) X 522mm (d)



Thermal Camera:



Basic data Visible light imaging: -40℃-80℃
Infrared thermal imaging: -10℃-75℃
Power: USB supply 5v+/- 10%
Power consumption: <1.6W
Infrared thermal camera Silicon oxide un-cooled infrared focal plane detector
Maximum image size: 356*192
Angle of view: 57 degree
Wave band: 8μm~14μm
Brand: Onsen from USA
Visible light camera Sensor: 1080P
2 milion pixels
Angle of view: 60 degree
Temperature measurement range: 30℃-45℃ (deviation < 0.3℃)





Monitor:



Color LED, high resolution, high contrast, high brightness, fast response,

no flickering screen, accurate tracking of moving objects.



Size 10.1 inch(16:10)
Resolution 1280*800
Contrast 500:1
Brightness 300cd/m2
Interface VGA/HDMI/AV/BNC/USB
Color system PAL/NTSC
Temperature Operating 0℃-50℃,storage:-20℃-80℃
Power 12V DC 2.0A
Power consumption 10W
Size 246*169*32mm


Fever Screening Thermal Camera Infrared Thermometer Gate 10W 0

Fever Screening Thermal Camera Infrared Thermometer Gate 10W 1
