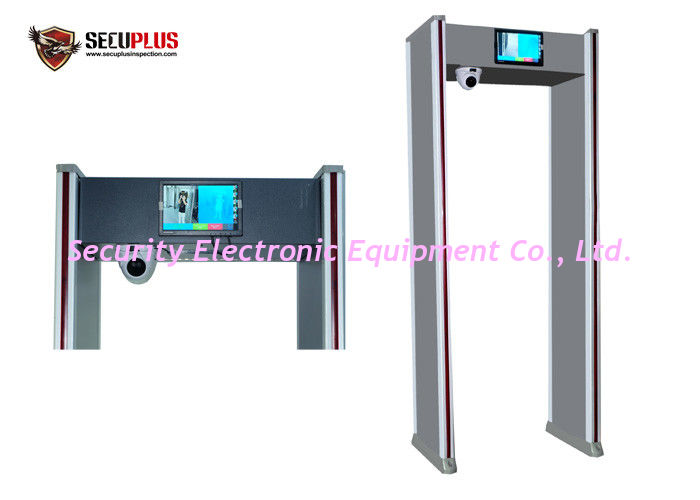

Large Image :  10.1" 300cd/m2 10W Body Temperature Detection Gate Infrared

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO, FCC, RoHS
Model Number: SPW-IIIDT

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: 7 workdays
Payment Terms: T/T, L/C, Western Union, D/A, D/P
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Zones: 6,12, 18 Alarm: Audio And Visual Alarm
Alarm Temperature: Over 37 Degree Sensitivity: 300 Levels
Function: To Find Fever Person Detection Area: Forehead Or Wrist Temperature
Alarm Voice: English And French Temperature Sensor: Infrared
Sensor Height: 1.5m Detection Distance: 20-50cm
High Light:

10W Body Temperature Detection Gate

,

300cd/m2 Body Temperature Detection Gate

,

10.1" Thermal Camera Metal Detector

Walk through metal detector with thermal temperature camera with alarm for fever person

  • Fast broadcast visitor temperature;
  • Smooth Traffic, no need to wait;
  • Automatically track moving people faces.

Specical features:



1. Keep terrorists & corona virus carriers out of Gate

2. Stop terrorists: Alarm for all Metal threats

3. Prevent EpidemicAlarm for Fever Visitors

4. auto and quick check pass person body temperature and show on the screen

5. non-contact detection to avoid affection

6. English and French voice alarm when body temperature is over 37 degree

7. audio and visual alarm for fever person

8. alarm when temperature is over 37 degree



Feature highlights

  • Accurate detection of magnetic, non-magnetic and mixed-alloy weapons
  • Multi-Zone operation and visualization of the detected weapons
  • Very high immunity to electromagnetic and mechanical interferences
  • Very high reliability and performance consistency
  • Built-in daily test feature
  • Comprehensive auto diagnostic capability
  • Automatically detect temperature, no need operator;
  • Quick response, detect body temperature in 1 second;
  • Audible alarm for high temperature passengers;
  •  Non-contact temperature sensor, avoid cross infection;
  •  Environmental adaptability, can work at -10℃ location;
  •  Intelligent software, can prevent false alarm caused by high temperature and direct sunlight;
  • Can detect ferrous and non-ferrous metal articles.
  •  7*24h Non-stop working
  •  Easy installation

Temperature thermal camera



Basic data:

  • Temperature:
    Visible light imaging: -40℃-80℃

Infrared thermal imaging: -10℃-75℃

Ø Power: USB supply, 5V +/-10%

Ø Power consumption: <1.6W



Infrared thermal Camera:

Ø Silicon oxide un-cooled infrared focal plane detector;

Ø Maximum image size: 256*192

Ø Angle of view: 57 degree

Ø Wave band: 8μm~14μm

Ø Brand: Onsen from USA



Visible light Camera:

Ø Sensor: 1080P

Ø 2 million pixels

Ø Angle of view: 60 degree

Ø Temperature measurement range: 30℃-45℃ (deviation < 0.3℃)



Temperature monitor



Color LED, high resolution, high contrast, high brightness, fast response, no flickering screen, accurate tracking of moving objects.



Ø Size; 10.1 inch (16:10);

Ø Resolution: 1280x800

Ø Contrast: 500:1

Ø Brightness: 300cd/m2

Ø Interface: VGA/HDMI/AV/BNC/USB

Ø Color system: PAL/NTSC

Ø Temperature: Operating: 0℃-50℃,storage:-20℃-80℃

Ø Power: 12V.DC.2.0A

Ø Power consumption: 10W

Ø Size: 246*169*32mm

Technical Sheet :

 * 6,12,18  Pinpoint zones to precisely identify multiple target locations from head to toe.
* Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
* Sensitivity adjustable from Level 0 to 299

  High: Can detect a pin
  Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring   metal in belt button, shoes.


* Shock proof to avoid false alarm
* Sound and light alarm
* 2 LED light bars on both door panels:gives alarm corresponding to the height or human body.

* Tamper-Proof: operate program is protected by password.
* Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
* Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
* Harmless to pregnant woman and heart pacemaker



Specifications:



Electric current:  AC100V~240V   50/60Hz
Power:  10W
Work environment:  -20℃~+45℃
Gross Weight:  70kg
Outer frame:  2220mm (h) x 820mm (w) X 522mm (d)
Inner frame:

 2000mm (h) X 700mm (w) X 522mm (d)

Alarm for Fever Visitors:



Alarm value adjustable

Suggest :37.0

Temperature deviation:

0.2-0.5

Distance:

1-20CM

Test Speed:

<1 Second

Working temperature:

-10 to 50
