Sound LED Lights Alarm Walk Through Metal Detector Gate With IR Temperature Sensor

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Sound LED Lights Alarm Walk Through Metal Detector Gate With IR Temperature Sensor

Sound LED Lights Alarm Walk Through Metal Detector Gate With IR Temperature Sensor
Sound LED Lights Alarm Walk Through Metal Detector Gate With IR Temperature Sensor
video play

Large Image :  Sound LED Lights Alarm Walk Through Metal Detector Gate With IR Temperature Sensor

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPW-ⅢC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: within 3 working days after receive your payment
Payment Terms: L/C, L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Temperature Deviation: 0.2-0.5 Temperature Sensor: Belgium Sensor
Alarm: Sound And LED Lights Alarm Checking Distance: 0.1-50cm
Warranty: 12 Moths Zones: 6/18 Optional
High Light:

walkthrough metal detectors

,

walk through detectors

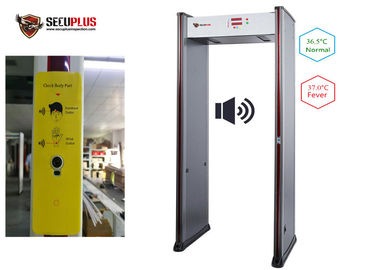

Walk Through Metal Detector Gate With IR Temperature Sensor



• Accurate test body temperature
• Temperature check distance: 0.1-50cm
• Show temperature and alarm for fever
• Temperature deviation: 0.2-0.5
• LED alarm light , located threats



Technical specification



Electrical current AC100V~240V 50/60Hz
Power 10W
Work environment -20℃~+45℃
Gross Weight 90kg
Outer frame 2220mm (h) x 820mm (w) X 522mm (d)
Inner frame 2000mm (h) X 700mm (w) X 522mm (d)


Characteristic

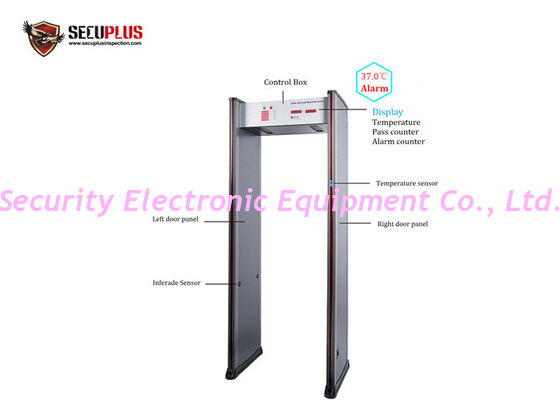

  1. Two LED light bars on both door panels: gives alarm corresponding to the height or human body.
  2. 6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
  3. Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
  4. Sensitivity adjustable from Level 0 to 300
  5. High: Can detect a clip
  6. Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
  7. Shock proof to avoid false alarm
  8. Sound and light alarm
  9. Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
  10. Tamper-Proof: operate program is protected by password.
  11. Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
  12. Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
  13. Harmless to pregnant woman and heart pacemaker
  14. Remote controller optional
  15. Connect with computer, camera, turnstile, etc optional

Standards &Certificates

  1. ISO9001
  2. ISO14001
  3. HSMS18001
  4. CE
  5. Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
  6. In accordance with: EN60950, WN50081-1, EN50082-1
  7. Electric safety: EN60950
  8. Anti-interference standard: EN50082-1

Sound LED Lights Alarm Walk Through Metal Detector Gate With IR Temperature Sensor 0

Sound LED Lights Alarm Walk Through Metal Detector Gate With IR Temperature Sensor 1


Shipping and Packing

Sound LED Lights Alarm Walk Through Metal Detector Gate With IR Temperature Sensor 2


Our service

All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life.
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
