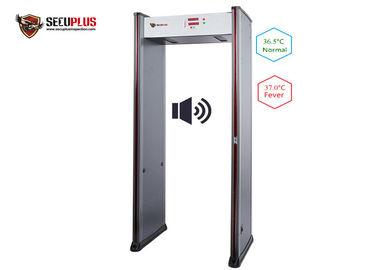

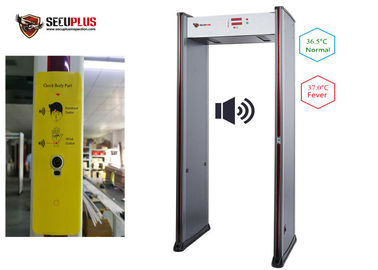

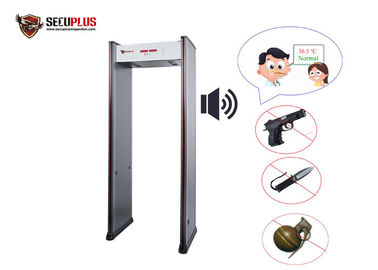

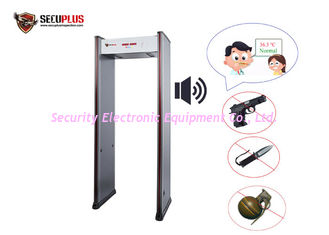

50/60HZ Security Door Frame Metal Detector With IR Temperature Detection System

China 50/60HZ Security Door Frame Metal Detector With IR Temperature Detection System supplier
50/60HZ Security Door Frame Metal Detector With IR Temperature Detection System supplier 50/60HZ Security Door Frame Metal Detector With IR Temperature Detection System supplier 50/60HZ Security Door Frame Metal Detector With IR Temperature Detection System supplier

Large Image :  50/60HZ Security Door Frame Metal Detector With IR Temperature Detection System

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO, FCC, RoHS
Model Number: SPW-IIIC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Zones: 6,12, 18 Alarm: Audio And Visual Alarm
Alarm Temperature: Over 37 Degree Sensitivity: 300 Levels
Function: To Find Fever Person Detection Area: Forehead Or Wrist Temperature
Alarm Voice: English And French Temperature Sensor: Infrared
Sensor Height: 1.5m Detection Distance: 20-50cm

English, french voice alarm archway body temperature detection system in government office to find fever person

security door frame metal detector with IR temperature detection system to find fever person without contact affection



Specical features:



1. auto and quick check pass person body temperature and show on the screen

2. non-contact detection to avoid affection

3. English and French voice alarm when body temperature is over 37 degree

5. audio and visual alarm for fever person

6. alarm when temperature is over 37 degree



Feature highlights

  • Accurate detection of magnetic, non-magnetic and mixed-alloy weapons
  • Multi-Zone operation and visualization of the detected weapons
  • Very high immunity to electromagnetic and mechanical interferences
  • Very high reliability and performance consistency
  • Built-in daily test feature
  • Comprehensive auto diagnostic capability



Technical Sheet :

 * 6,12,18  Pinpoint zones to precisely identify multiple target locations from head to toe.
* Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
* Sensitivity adjustable from Level 0 to 299

  High: Can detect a pin
  Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring   metal in belt button, shoes.


* Shock proof to avoid false alarm
* Sound and light alarm
* 2LED light bars on both door panels:gives alarm corresponding to the height or human body.

* Tamper-Proof: operate program is protected by password.
* Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
* Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
* Harmless to pregnant woman and heart pacemaker



Specifications:



Electric current: AC100V~240V   50/60Hz

Power: 10W

Work environment: -20℃~+45℃

Gross Weight: 70kg

Outer frame: 2220mm (h) x 820mm (w) X 522mm (d)

Inner frame: 2000mm (h) X 700mm (w) X 522mm (d)
