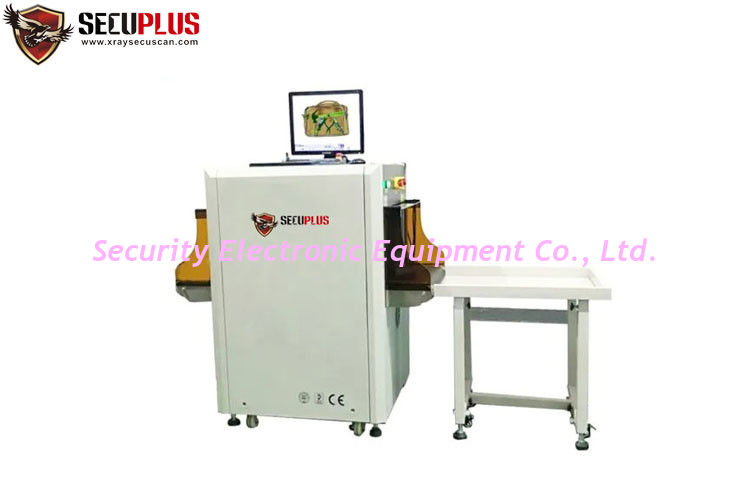

Hotel Baggage And Parcel Inspection Machine SPX-5030A For Hand Bag Parcels

China Hotel Baggage And Parcel Inspection Machine SPX-5030A For Hand Bag Parcels supplier
Hotel Baggage And Parcel Inspection Machine SPX-5030A For Hand Bag Parcels supplier Hotel Baggage And Parcel Inspection Machine SPX-5030A For Hand Bag Parcels supplier Hotel Baggage And Parcel Inspection Machine SPX-5030A For Hand Bag Parcels supplier

Large Image :  Hotel Baggage And Parcel Inspection Machine SPX-5030A For Hand Bag Parcels

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPX-5030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/ month
Contact Now
Detailed Product Description
Operation System: Windows 7 Tunnel Size: 504*320mm (w*h)
Conveyor Speed: 0.20m/s Max Load: 100kgs
Penetration: 10mm Steel Panel Monitor: 17inch,resolution 1280*1024
Have In Stock: Yes X Ray Generator Anode Voltage: 80KV
Customized: Accept Extension Table: 1 Set Is Free

Hotel Baggage and Parcel Inspection Machine SPX-5030A Real X ray Scanner for hand bag parcels





High Light

  • Black white and Pseudo color display
  • Windows 7 operation system
  • With independent industrial computer
  • Professional multi-function operation keyboard
  • Automatic save scanned image
  • Reliable performance
  • Friendly Image processing interface

Technical characteristics

  • Single energy penetration system
  • New radiation protection technology
  • TIP program
  • Clear and distinct image
  • Scanned imaged can zoom up to 32 times
  • Integrated structure design, refinement appearance

Application field

  • Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc
  • suitable for security inspection of briefcase, hand luggage, postal parcels and other small package

Scan Image

Hotel Baggage And Parcel Inspection Machine SPX-5030A For Hand Bag Parcels

Hotel Baggage And Parcel Inspection Machine SPX-5030A For Hand Bag Parcels



Technical parameters

Tunnel size 504*320mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 100kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 10mm steel panel
Monitor 17inch,resolution 1280*1024
X Ray generator anode voltage 80KV
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection

<0.16 μSv

Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to X32, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100000 image
Dose per inspection <0.125 μSv
Radiation leakage <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size 1199*728*1197mm (L*W*H)
Weight 280kg
Environment temperature/humidity - 3℃~+40℃±2℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃±2℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.6KvA
Noise Level <55db
