| Tunnel Size: | 650(W)*500(H)mm | Conveyor Max Load: | 170kg |
|---|---|---|---|
| Anode Voltage: | 160Kv | Penetration: | 34mm Steel |
| Have In Stock: | About 20 Units | OEM: | Accept |
| Bi-directional Scan: | Yes | Extension Table: | Free |
| High Light: | baggage scanner machine,airport security baggage scanners |
||

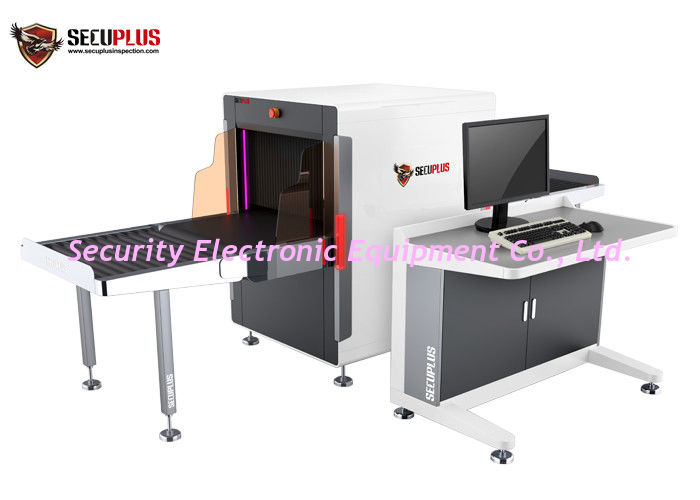

Win 7 system X-Ray security scanner explosive detection system in mall
General Specification :
| Tunnel Size | 650mm×500mm |
| Conveyor Speed | 0.22m/s |
| Conveyor height | 695mm |
| Conveyor Max Load | 170kg |
| X ray Dose per inspection | <1.14μSv |
| Wire Resolution | 40 AWG typical |
| Penetration Resolution | 30AWG ,the wire visible below 15.9mm thick aluminum |
| Film Safety | Guarantee ASA/ISO1600 Film |
| Spatial resolution Level | dia1.0mm, Vertical: dia1.0m |
| Penetrate resolution | 24WG to 34AWG |
| Penetration | 34 mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.15μGy/h (at a distance of 5cm From external housing) |
Image System :
Technical Principle--------Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor--------L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor--------High Resolution Color, LCD Accord, 17inch
Image Display--------High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement--------1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall--------All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm--------Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection--------Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive--------Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions--------Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications--------Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.
Images process--------24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
Operating Environment:
Operation temperature/Humidity------- -5℃-40℃/10%-95%(non-condensing)
Storage Temperature/Humidity-------- -20℃to 60℃/ 5%-95%(non-condensing)
Operation Power--------220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption--------1.0KW (max), 0.7KW(working)
Noise---------<58db
Dimensions (L×W×H)--------2195mm x902mm x1362mm
Device Weight--------465Kg
G.Weight---------700Kg
Packing Volume--------5.54CBM
X-ray Generator:
| Anode Voltage | 160kv |
| Anode power | 0.35mA |
| Generate angle | 80 degree upward |
| Brand | ECUSCAN ( own made ) |
| Generate direct | from top to bottom |
| Cooling / Duty Cycle | Oil Cooling /100% |
Other Characters:
Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
Monitor: 17 inch monitor
Case
