Product Details:
Payment & Shipping Terms:
|
| System: | Windows7 | Storage Capacity: | More Than 100000 Image |
|---|---|---|---|
| Dual-Direction: | Bi-direction Scanning | X-ray Generator: | 160KV Voltage |
| Tunnel Size: | 653*505mm (w*h) | Max Load: | 100kgs |
| Language: | Multi-language | Have In Stock: | More Than 10 Units |
| High Light: | baggage scanner machine,security body scanner |
||

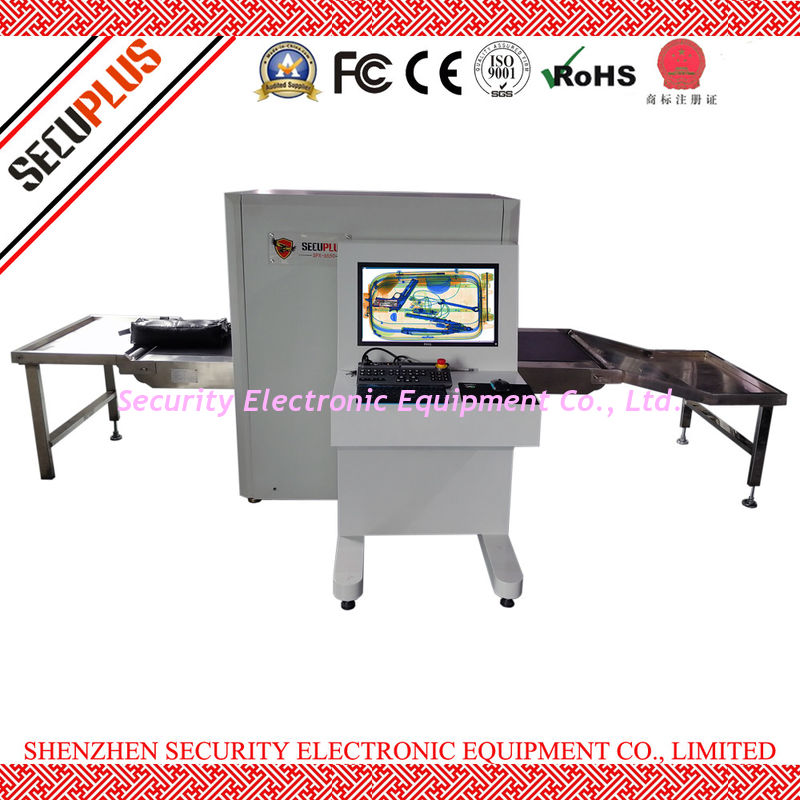

Hotel check X ray Security Scanner SPX6550 Baggage X-ray Scanner
Advantages
Application field:
Train Stations, Metro Station, Jail House, Embassy, Boarder check points, Entertainment venues, Tourist attractions, Office buildings, Shopping malls, Factories, etc;
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.
High Light
Technical parameters
| Tunnel size | 653*505mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 693mm |
| Max Load | 150kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 35mm steel panel |
| Monitor | 21.5 inch,High resolution 1280*1024 |
| X Ray generator anode voltage | 160KV (Working at 150KV) |
| Cooling/operation cycle | Oil Cooling /100% |
| X ray Dose per inspection | < 1.14 USv |
| Image processing | Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom | Variable zoom up to X64, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100000 image |
| Radiation leakage | <0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F1,F2,F3 programmable key,high density alarm,TIP；date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
| Frame size | 2043*901*1384mm (L*W*H) |
| Weight | 500kg |
| Environment temperature/humidity | - 3℃～+40℃ / 5%～95%(non-condensing) |
| Storage temperature/humidity | -43℃～+60℃ / 5%～95%(non-condensing) |
| Power | 220VAC (+/-10%) 50+/-3HZ |
| Consumption | 0.7KvA |
| Noise Level | <55db |
Technical characteristics
X-ray Scanning Images
