SPX5030A Airport Baggage Scanning Equipment , X Ray Baggage Scanner 55db Noise Level

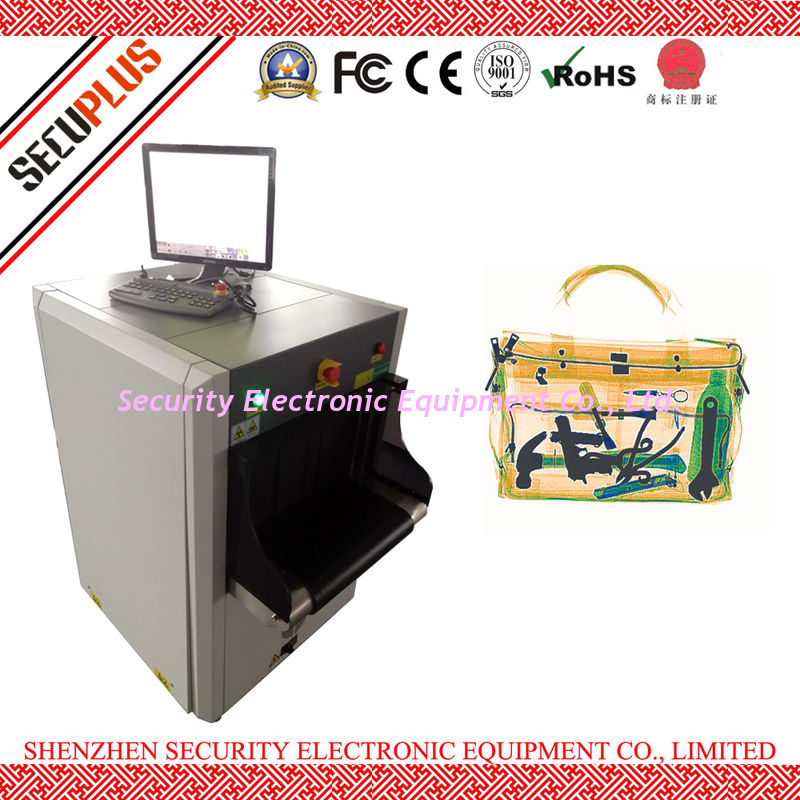

Large Image : SPX5030A Airport Baggage Scanning Equipment , X Ray Baggage Scanner 55db Noise Level

Product Details:

Place of Origin:	China
Brand Name:	SECUPLUS
Certification:	CE ISO FCC ROHS
Model Number:	SPX-5030A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plywood Pallet
Delivery Time:	within 7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets/ month

Contact Now

Detailed Product Description

Operation System:	Windows 7	Tunnel Size:	504320mm (wh)
Operation Software:	Smart Software	Penetration:	8-10mm Steel Panel
In Stock:	More Than 10 Units	X Ray Generator Anode:	80KV
High Light:	airport screening machine , baggage x ray machine

Airport security check Machine SPX5030A X-ray Baggage Scanner

High Light

Black white and Pseudo color display
Windows 7 operation system;
With independent industrial computer;
Professional multi-function operation keyboard;
Automatic save scanned image;
Reliable performance;
Friendly Image processing interface

Technical parameters

Tunnel size	*504320mm (wh)*
Conveyor speed	0.20m/s
Conveyor height	693mm
Max Load	100kgs
Wire Resolution	38AWG
Spatial resolution	vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration	10mm steel panel
Monitor	*17inch,resolution 12801024**
X Ray generator anode voltage	80KV
Cooling/operation cycle	Oil Cooling /100%
X ray Dose per inspection	<0.16 μSv
Image processing	Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom	Variable zoom up to X32, support continuous magnification.
Image Checking	Continuous check back image
Storage capacity	Can store more than 100000 image
Dose per inspection	<0.125 μSv
Radiation leakage	<0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety	In accordance with ASA/ISO1600 film safe standard
System function	F programmable key,high density alarm,TIP；date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function	Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size	11997281197mm (LWH)
Weight	280kg
Environment temperature/humidity	- 3℃～+40℃±2℃ / 5%～95%(non-condensing)
Storage temperature/humidity	-43℃～+60℃±2℃ / 5%～95%(non-condensing)
Power	220VAC (+/-10%) 50+/-3HZ
Consumption	0.6KvA
Noise Level	<55db

Application field

Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.

Technical characteristics

Single energy penetration system;

New radiation protection technology;
TIP program;
Clear and distinct image;
Scanned imaged can zoom up to 64 times
Integrated structure design, refinement appearance

Our Service

Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
