80KV Single Energy X Ray Security Scanner With Windows 7 System

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

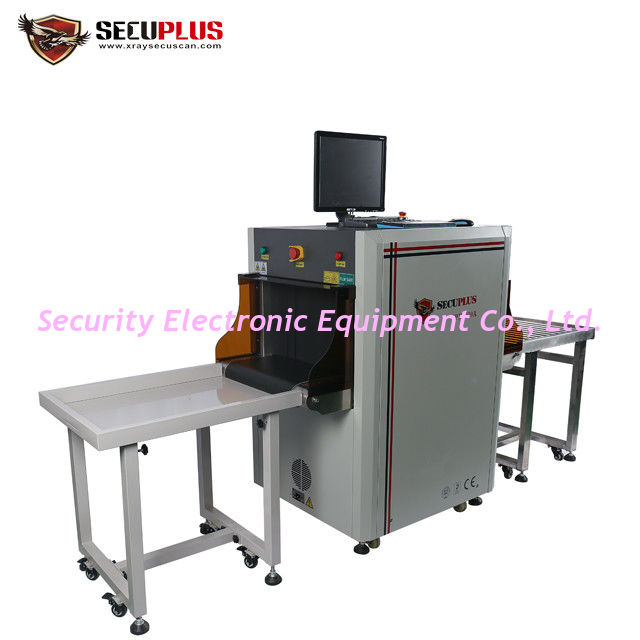

Large Image :  80KV Single Energy X Ray Security Scanner With Windows 7 System

Product Details:
Place of Origin: China
Brand Name: SECU PLUS
Certification: CE ISO
Model Number: SPX-5030A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/ month
Detailed Product Description
Tunnel Size: 504*320mm (w*h) Penetration: 8mm Steel
X Ray Generator Anode Voltage: 80KV Operation System: Windows 7
Monitor: 17inch,resolution 1280*1024 Warranty: One Year
High Light:

baggage scanner machine


airport security baggage scanners

80KV Single Energy X Ray Security Scanner With Windows 7 System

Model: SPX-5030A



High Light

  • Friendly Image processing interface
  • Windows 7 operation system
  • With independent industrial computer
  • 80kv multi energy scanner
  • Professional multi-function operation keyboard
  • Wireless keyboard and mouse

Technical characteristics


  • Integrated structure design, refinement appearance
  • Clear and distinct image
  • New radiation protection technology
  • TIP program
  • Scanned imaged can zoom up to 32 times


Baisc specification:


X Ray Generator:


X Ray generator anode voltage 80KV
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection <0.16 μSv



Tunnel size 504*320mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 100kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 8mm steel panel




X Ray Image:


Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to X32, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100000 image
Dose per inspection <0.125 μSv
Radiation leakage <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, voltage stabilizer, UPS back up



Installation environment:


Frame size 1199*728*1197mm (L*W*H)
Weight 280kg
Environment temperature/humidity - 3℃~+40℃±2℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃±2℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.6KvA
Noise Level <55db



Application field


  • Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
  • suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.


Our service:


  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.
