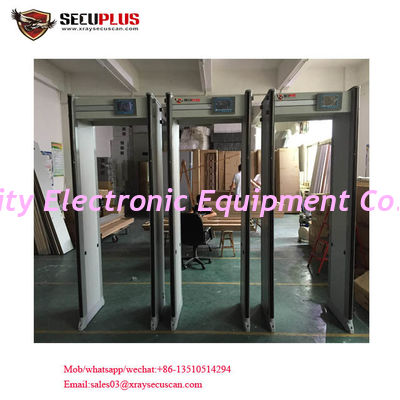

Full Body Door Frame Metal Detector Audio And Visual Alarm With Remote Operate

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Full Body Door Frame Metal Detector Audio And Visual Alarm With Remote Operate

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: ISO9001, CE
Model Number: SWP-300S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden pallet
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per month
Detailed Product Description
Zones: 33 Zones Display: LCD Screen
Weatherproof: IP65 Inner Width: 76cm
Alarm: Audio And Visual Program: 30
Operate: Remote Software: Multi-languages Support
High Light:

walkthrough metal detectors


walk through detectors

33 Zones metal detector gateway with top quality for airport, customs


   The SPW-300S is ideal for outdoor events or checkpoint locations that move frequently and features tool-free installation, weather-resistant protection (IP65) and ease of system use for screening personnel.


   WALK-THROUGH GATE STRUCTURE : State-of-the-art, robust, washable and compact elliptical columns Protected against aging, weather and wear .



  • Weatherproof design (IP65 protection )
  • Inner size as 76cm width ( Less false alarm and better for big body passengers)
  • Automatically Calibration
  • Detect zone: 33 zones
  • Aesthetic, Unobtrusive and Light Weight
  • Superior Detection and Throughput
  • Updated DSP technology, offers high sensitivity, immunity to false alarms, discrimination, uniform detection a bigger breakeven for the products

Unique features : Auto Scan environmental interference at site and anti-interference

The display of the electronics module indicate readiness for operation, the level of interference

and the signal magnitude from metal objects carried through the

control zone of the metal detector.


Technical Specification:

Electric current: 110V to 240V ,50/60Hz
Power: <15W
Power supply DC 15V/4A
Work temperature: -28℃~+47℃
Storage temperature: -30℃~+60℃
Humidity: 0 to 95% non-condensing
Gross Weight: 55kg
Outer frame: 2220mm (h) x 880mm (w) X 600mm (d)
Inner frame: 2000mm (h) X 760mm (w) X 600mm (d)


Alarm Modes:


Visible signals: 1) multi-zone display bar for “height on person” location

  2) Green and red metering signals proportional to the mass of the object detected


Audible signals: high acoustic intensity alarm signal


General Specification:

· High sensitivity, accurate alarm

· Self-diagnostic procedures

· DSP Digital processing technology

· 300 sensitivity level adjustable

· Friendly LCD operate interface, local language support.

· Modular structure to easy after service

· Available 100 operate frequency, enable max 100pcs WTMD work side by side.

· Automatically adapt to the working environment.

· Good performance in anti-interference ability.

· Sound and light alarm

● Adjustable Zone Sensitivity

· 30 programs

· Calculate traffic flow and resultant alarms

· Tamper-Proof: key lock and two level password

☆ Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.

· Control panel – for indication of the detected zone in alarm

· Traffic management – number of persons that passed through, number of alarms.

· Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources

· Harmless to pregnant woman and heart pacemaker medical devices or devices with electromagnetic storage ( CCTV Systems, notebooks etc.)

· Programming or adjustment via built-in keypad


Optional function :


· 2-10 hours built-in battery back up (option)

· Connect network by WIFI or RJ45

· Remote controller (optional)

· Command to other device like barrier, turnstile, etc (Optional)

· Random alarm function: it enables security personnel to randomly choose individuals for an additional security check. With the new dual random alarm feature, people who cause a normal alarm are also subject to a random alarm



  • In accordance with: EN60950, WN50081-1, And EN50082-1
  • CE Certificate; ISO 9001:2008 Certificate, National standard
