IP67 Waterproof Fixed Type Under Vehicle Inspection System 4 Line NVR for Baggage

IP67 Waterproof Fixed Type Under Vehicle Inspection System 4 Line NVR for Baggage
IP67 Waterproof Fixed Type Under Vehicle Inspection System 4 Line NVR for Baggage
video play

Large Image :  IP67 Waterproof Fixed Type Under Vehicle Inspection System 4 Line NVR for Baggage

Product Details:
Place of Origin: China
Brand Name: SECU PLUS
Certification: CE,ISO
Model Number: SPV-3300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden case
Supply Ability: 300 unts/month
Detailed Product Description
Sensor: Line Scan CCD Coil: 2 Channels Indouction Coil
Illumination: 4 LEDs Speed Of Vehicle: <30km/h With ALPR, <70km/h Without ALPR
Operating Temp.: -10℃ To +75℃ Warranty: One Year
High Light:

under vehicle inspection systems

,

under vehicle monintor machine

IP67 Waterproof Fixed Type Under Vehicle Inspection System With 4 Line NVR





Advantages of UVSS:

  • Easy to change scanning spot

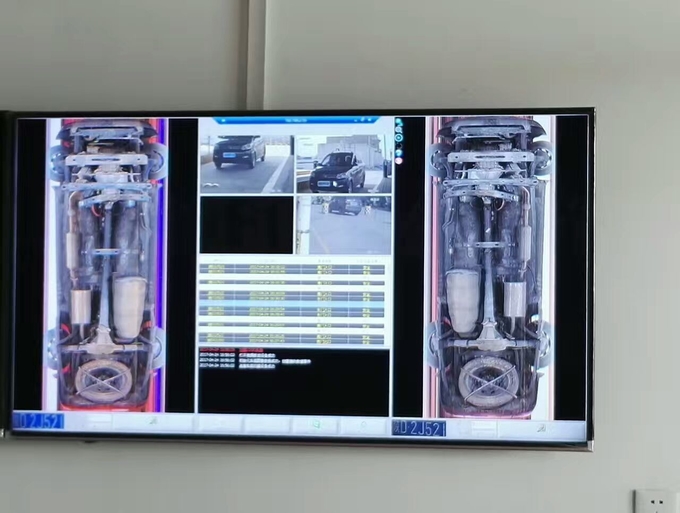

  • Complete and clear image display on monitor
  • Real-time display the vehile coming through and license plate capture
  • Operator can zoom, recall,  save and inquire image
  • Can connect the road blocker, barrier gate and etc.



Main Technical Indexes:





Vertical resolution of the image: 5000*2048 pixels
Check the width viewing angle: < 4 meters
Speed of vehicle: < 30km/h with ALPR(Automatic Licence Plate Recognition)
  < 70km/h without ALPR(Automatic Licence Plate Recognition)
Effective Field of View(FOV): less than 170°
Auxiliary light: 100W
Weight capacity: <20T
Water-proof grade: Ip68
Scanning device weight: 24KG
Scanning device volume: 450mm×400mm×88mm
Communication interface: RS232/RS422
Operating Temperature: -10℃ to +75℃
Storage temperature: -40℃ to +75℃
Operating voltage: 110-240V AC, 50-60HZ




System Host





Brand Grantech (UFO6377H-SP1-953)
CPU Intel® Core(TM) 2 Duo CPU
  P8600@2.4GHz or higher
Memory 2G( optional 4G)
Graphics Inter(R) Gen 5.0 Integrated Graphics Engine
Hard Disk SATA2 Hard Disk 500G
Dual LAN (At least one Intel Gigabit)
USB 2.0 Up to 4 pieces
Monitor 22inch LCD, resolution up to 1920*1080





Features of UVIS:

  • Automatic digital line scan camera, with high-resolution and clarity of the image.
  • The complete image of under vehicle scanning, without any omissions,and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.
  • Preparation of inspection processes to meet a variety of on-site needs.
  • Multiple scene image monitoring, recording function.
  • Multi-language user interface design.
  • Strong scalability to easily achieve a variety of system linkage control.
  • (Optional)ALPR(Automatic Licence Plate Recognition)
  • (E.g.: anti-collision system, barrier, etc.).
  • (Optional) Multiple devices networked control functions.



Company introduction:



The manufacturer of threats detecting device in south of China.
With professional R&D engineer team are specialized in:
  • X-ray screening system for baggage
  • Walk through metal detectors
  • Hand held metal detector
  • Under vehicle inspection system
  • Explosive and Drug trace detection
  • Dangerous liquid scanner
  • X ray vehicle scanner

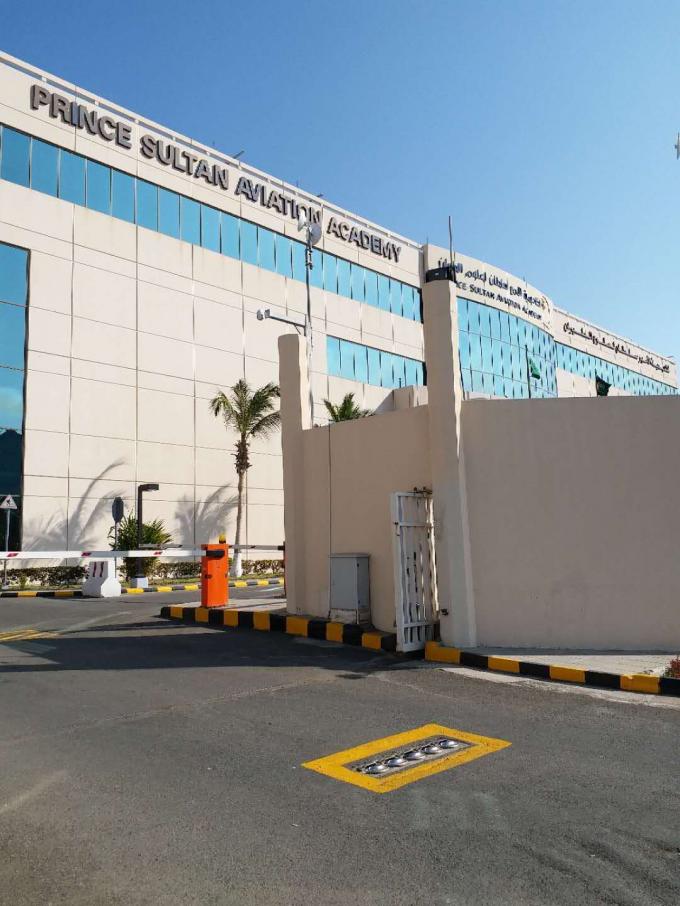

We have successful cases in airports,customs and government, important events for protection.
The reliable military supplier of security screening system..




Our service:



  • Professional reply for your question in time before-sales during Monday to Friday in 24 hours
  • All of our product already get passing the aging test to ensure reliability quality
  • Quality inspection department will check the machine again before packing.
  • One year spare parts in free for replacing the broken after delivery
  • Remote control the machine for diagnosing
  • Technic support by video and telephone
  • Accept your engineer come to our factory for training in free
  • Send engineer to your country with additional cost.



Workshop picture:





IP67 Waterproof Fixed Type Under Vehicle Inspection System 4 Line NVR for Baggage 0

IP67 Waterproof Fixed Type Under Vehicle Inspection System 4 Line NVR for Baggage 1
