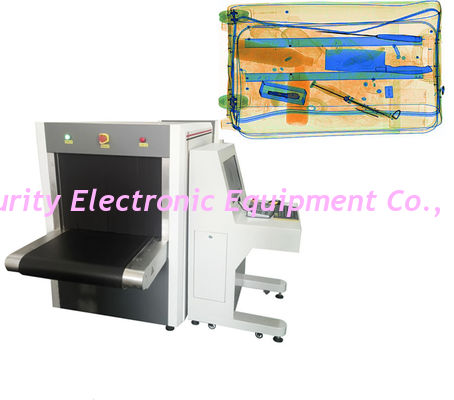

X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use

X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use
X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use

Large Image :  X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPX-6550
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 7 woring days after receving your full payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/moth
Detailed Product Description
Have In Stock: Yes TIP Program: Support
Tunnel Size: 653*505mm (w*h) Conveyor Speed: 0.20m/s
Max Load: 100kgs X Ray Generator: 160KV
Zoom: Up To X64, Support Continuous Magnification Storage Capacity: More Than 100000 Image
High Light:

x-ray baggage inspection system

,

baggage x ray machine



X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use



Technical parameters



Tunnel size 653*505mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 150kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 35mm steel panel
Monitor 21.5 inch,High resolution 1280*1024
X Ray generator anode voltage 160KV (Working at 150KV)
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection < 1.14 USv
Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to X64, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100000 image
Radiation leakage <0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F1,F2,F3 programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size 2043*901*1384mm (L*W*H)
Weight 500kg
Environment temperature/humidity - 3℃~+40℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.7KvA
Noise Level <55db



High Light

  1. Powerful image dealing ability
  2. Accurate Z7,Z8,Z9 mark for explosive and narcotics
  3. Windows 7 operation system
  4. Automatic save scanned image
  5. Friendly operation System
  6. Reliable performance

Technical characteristics

  1. Dural energy penetration system
  2. TIP program
  3. Clear and distinct image
  4. Scanned imaged can zoom up to 64 times
  5. Partly zoom up to 3 times
  6. 13 kinds of image processing functions and 6 kinds of pseudo color



Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points;
Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.





Related Product



Single Energy X-ray Baggage Scanner SPX-5030A

X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use 0



Detail Images



Operation Keyboard

X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use 1



Extension Table: 1 set free for customers



X Ray Baggage And Parcel Inspection SPX-6550 with 160kv Generator For Bank Use 2



Our service

Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
