| Tunnel Size: | 650(W)*500(H)mm | Conveyor Speed: | 0.22m/s |
|---|---|---|---|
| Conveyor Max Load: | 170kg | Wire Resolution: | 40AWG |
| OEM: | Accept | Steel Penetration: | 38mm Guaranteed, 40mm Typical |
| High Light: | baggage scanner machine,airport security baggage scanners |
||

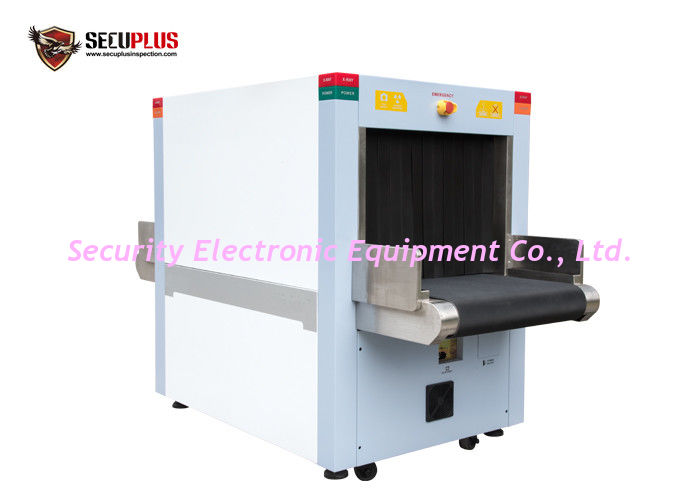

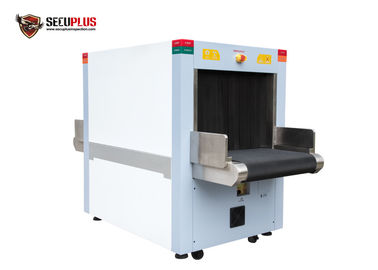

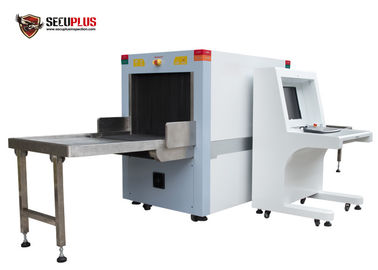

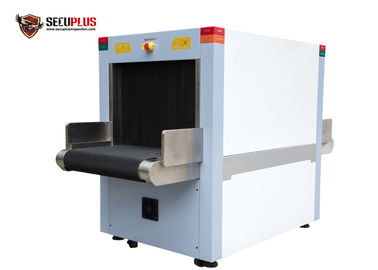

X Ray Security Scanner SPX6550B Luggage Scanning Machine For Luxury Hotel
General Specification
| Tunnel Size | 653(W)*514(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor height | 690mm |
| Conveyor Max Load | 170kg |
| Wire Resolution | 40AWG |
| Spatial resolution Level | dia1.0mm,Vertical: dia1.0mm |
| Steel Penetration | 38mm guaranteed, 40mm typical |
| Film Safety | guarantee ISO 1600 film |
| X-ray Leakage |
<1.0μ Sv / hr(at a distance of 5cm From external housing) |
Image System
| X-ray Sensor | L-Shaped Photodiode Array ,16bit deep |
| Monitor | High Resolution Color, LCD Accord, 17 inch |
| Image Processing | Black / white, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening |
| Image storage | More than 100,000 pictures in real time |
| Zoom | 64X Times Enlarge, Whole screen continuous observation Multi-energetic distinguish retrieval |
| Objects | Selective detection of Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green |
| Memory gray level | 65536 |
| Image Max Resolution | 1024 * 1280 pixel |
| High-energy/low energy | switch from high energy to low energy |
| TIP function | Automatic identification of threads such as knifes guns, etc |
| Assist to detect drug and explosive powder | |
| Image Processing | 24bit for processing real time |
X-ray Generator
| Generate direct | Upward |
| Generate anger | 80 degree |
| Anode Voltage | 160Kv |
| Anode power | 0.8mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Other Characters
| Keyboard Protection | IP43 |
| Machine Protection | IP20 |
| Dual direction scanning | |
| Extension Rollers | Optional |
| UPS | Optional |
| Support card reader operator access | |
| Monitor Table | one LCD monitors, made in stainless steel |
| It have vents and transparent parts | |
| Computer system | Window XP System LCD monitor: 19 inch (optional) |
| Certificates | ISO9001:2008, CE |
Operating Environment
| Operation temperature/Humidity | 0℃-45℃/10%-95%(non-condensing) |
| Storage Temperature/Humidity | -40℃-60℃/10%-95%(non-condensing) |
| Operation Power | 220VAC (±10%), 50Hz |
| Power Consumption | 1.0 KW (max), 1.0KW (working) |
| Noise | <58db |
Application
X ray Baggage Scanners are widely used in airports, railway stations, bus stations, government offices, embassies, conference centers, exhibition centers, hotels, shopping malls, large events, post offices, schools, logistics industry, industrial testing, etc
