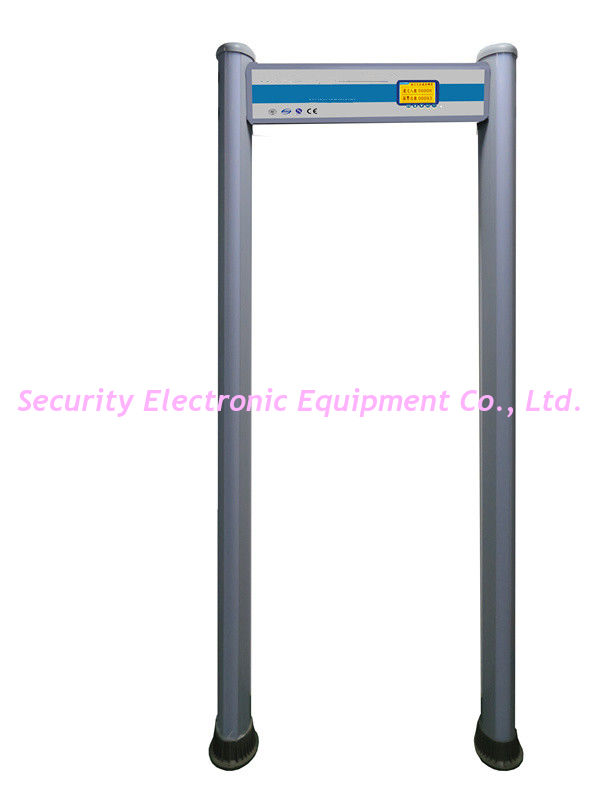

Elliptical WalkThrough Metal Detectors SPW-200 33 zones Detector

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Elliptical WalkThrough Metal Detectors SPW-200 33 zones Detector

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPW-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 pieces per month
Detailed Product Description
Inner Frame: 2010mm(H)X720mm(W)X300mm(D) Outer Frame: 2230mm(H)X930mm(W)X300mm(D)
Water-proof: IP65 Display: 7 Inch LCD Display
Zones: Single, 6, 11,33 Zones Optional Electrical Current: AC80V~264V
Power: 8W Have In Stock: Yes
High Light:

metal detector airport


walkthrough metal detectors


Elliptical Walk Through Metal Detector SPW-200 33 zones Detector


Single, 6, 11,33 zones optional


DSP technology, automatically calibration

Weather-proof design

7 inch LCD display

Fit for outdoor use


Technical specification


Electrical current AC80V~264V 50/60Hz
Power 8W
Work environment -28℃~+47℃
Gross Weight 55kg
Outer frame 2230mm(H)X930mm(W)X300mm(D)
Inner frame 2010mm(H)X720mm(W)X300mm(D)




Self-diagnostic procedures

Optional input MBSU battery backup

Modular structure easy for after sales service

Automatically adapt to the working environment

Auto scan environmental interference at site

LCD friendly operation interface for user

Operation way: remote control

Four LED light bars on both door panels: gives alarm corresponding to the height or human body.

30 applications optional

Sensitivity adjustable from Level 0 to 255

High: Can detect a coin

Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.

Shock proof to avoid false alarm

Sound and light alarm

Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.

Tamper-Proof: operate program is protected by password.

Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.

Connect with computer, camera, turnstile Optional

Mix distance between two Walk-thru:0.3 meters at low sensitivity, 0.5meters at high sensitivity

Harmless to pregnant woman and heart pacemaker




Applied in government, law-enforcing department: Public Security Bureau, Procuratorate, Court, Prison, Work camp, Jail, etc. for safety-check of metal contraband.


Applied in public place: Gym, Place of entertainment, Airport, Customs, Exhibition hall, Museum, etc. for safety-check in entry.


Applied in factory: Manufacturer of electronic prodcut, hardware, mintage, jewelry, etc. for avoid losing valuables.


(Hand Held Metal Detector can be used as assistant equipment of safety-checking)




Walk Through Metal Detector (WTMD) is a kind of fixed appliance, used especially for finding the person who carries hidden metal objects. When a person walk through the WTMD, if the metal objects he carried are more than the setting level, the WTMD will alarm and show the alarm zone instantly.

As one product with high technology content in China at present, our WTMD has faster induction, more accurate detecting, higher sensitivity, and stronger ability of anti-interference. Meet the needs of all user.


Standards &Certificates


ISO9001 ●ISO14001 ●HSMS18001 ●CE

Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center

In accordance with: EN60950, WN50081-1, EN50082-1

Electric safety: EN60950

Anti-interference standard: EN50082-1


Factory workshop
