| Tunnel Size: | 600(W)*400(H)mm | Conveyor Speed: | 0.22m/s |
|---|---|---|---|
| Penetration: | 30-32mm Steel | Software Interface: | Support Arabic, Persian, Russian, Turkish, French |
| Conveyor Load: | 170kgs | Warranty: | One Year Free Spare Parts, Life Time Technic Support |
| Operation: | User Maual Attached With Machine | OEM/ODM: | Accepted |
| High Light: | security screening equipment,baggage x ray machine |
||

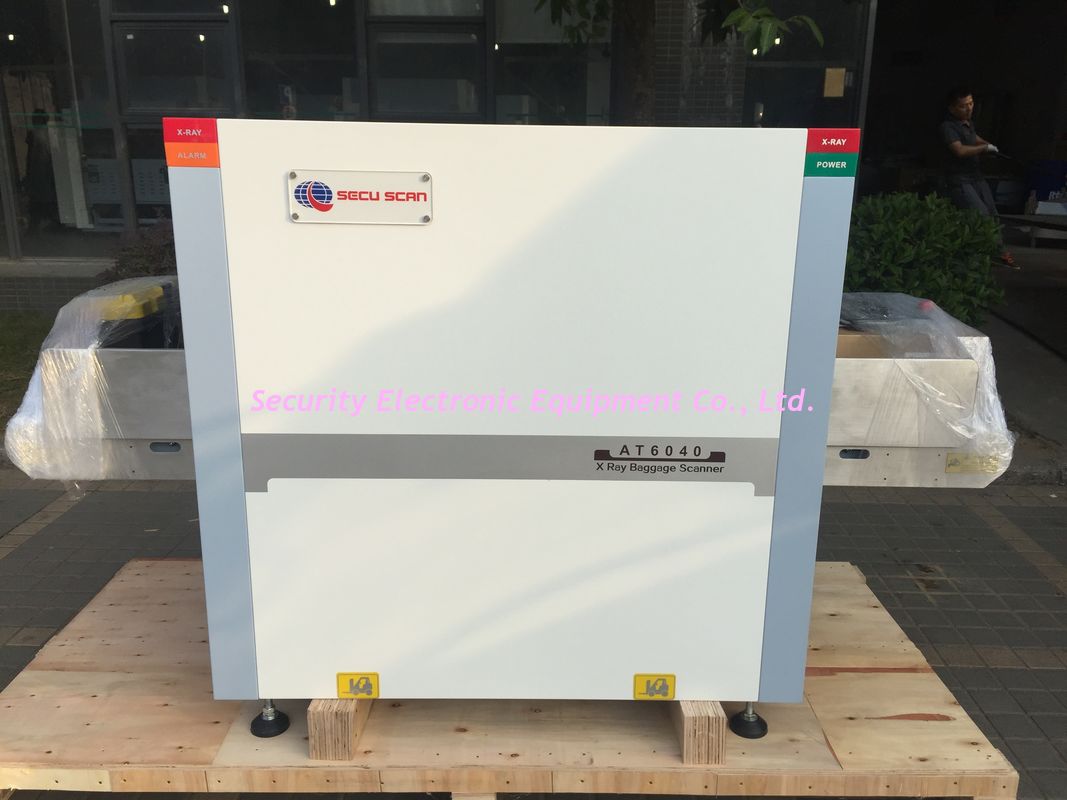

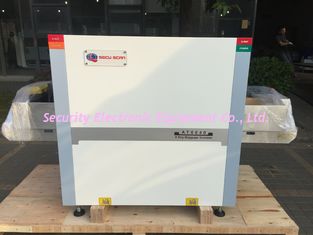

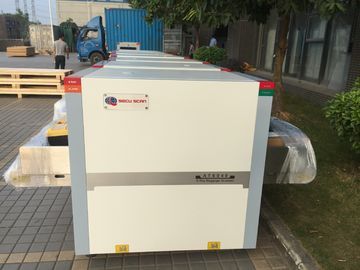

Hotel / Prison Midlle Size Baggage Screening Equipment For Contraband Check
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Continuous working 10000 hours above
* Threat alert and material classification
* International standard configuration: Japan Hammatsu detection and UK Senstech board
* Network‐Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
Specification:
X Ray Generator:
| Beam direction | Upward |
| Beam angle | 80 degree |
| Anode voltage | 140kv |
| Anode power | 0.2-1.2mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
General specification:
| Tunnel Size | 600(W)*400(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 170kg |
| Dose per Inspection | <1.5Gy/h |
| Resolution | < 0.0787mm Copper Wire |
| Spatial Resolution Level | Dia1.0mm |
| Vertical | esolution Level: Dia1.0mm Vertical: Dial1.0mm |
| Penetrate resolution | 30-32mm |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.5 μ Gy/h (at a distance of 5cm From external housing) |
X Ray Image:
| X-ray Sensor | L-Shaped Photodiode Array (multi-energetic), 12bit Deep |
| Monitor | High Resolution Color, LCD Accord, 17 inch |
| Image Processing | Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval. |
| Image Grey Level | 4096 |
| Image Max Resolution | 1024 * 1280 pixel |
| Image Processing | 24bit for processing real time |
| Image storage | Storage 60000 pictures in real time |
| Zoom | 16,32,64 Times Enlarge, Whole screen continuous observation |
| Multi-energetic distinguish objects | Organic objects in orange, inorganic objects in blue, mixture in green |
| High-energy/low energy | Switch from high energy to low energy |
| Adavantage | Assist to detect drug and explosive powder |
Packing and Shipment:
| Packing details | carton packing, one carton |
| Carton Size: (L)2380*(W)1120*(H)1660mm | |
| Total Gross Weight:500kg | |
| Payment terms | T/T, Western Union, Cash,L/C |
| Shipping methods | By air (5-7days, most expensive) |
| By express (3-7days, more expensive) | |
|
By sea (15-28days, cheapest) |
