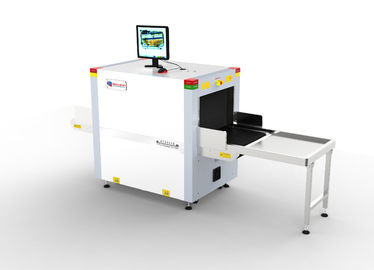

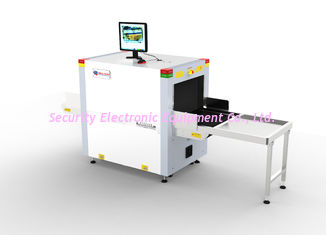

Middle Size X Ray Security Systems , Luggage X Ray Machine For Hotel Use

Middle Size X Ray Security Systems , Luggage X Ray Machine For Hotel Use
Middle Size X Ray Security Systems , Luggage X Ray Machine For Hotel Use Middle Size X Ray Security Systems , Luggage X Ray Machine For Hotel Use Middle Size X Ray Security Systems , Luggage X Ray Machine For Hotel Use Middle Size X Ray Security Systems , Luggage X Ray Machine For Hotel Use

Large Image :  Middle Size X Ray Security Systems , Luggage X Ray Machine For Hotel Use

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO, USFDA, Radiation Safety
Model Number: AT6040B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Detailed Product Description
Tunnel Size: 600(W)*400(H)mm Conveyor Speed: 0.22m/s
Penetration: 38-40mm Steel Software Interface: Support Multi Language
Conveyor Load: 170kgs Warranty: One Year Free Spare Parts, Life Time Technic Support
Operation: User Maual Attached With Machine OEM/ODM: Accepted
High Light:

cargo inspection

,

x-ray baggage inspection system



Middle Size X Ray Security Systems , Luggage X Ray Machine For Hotel Use



* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Continuous working 10000 hours above
* Threat alert and material classification
* International standard configuration: Japan Hammatsu detection and UK Senstech board
* Network‐Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time





Specification:



X Ray Generator:



Beam direction Upward
Beam angle 80 degree
Anode voltage 160kv
Anode power 0.2-1.2mA
Cooling / Duty Cycle Oil Cooling /100%





General specification:



Tunnel Size 600(W)*400(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Dose per Inspection <1.5Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 38-40mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)





X Ray Image:



X-ray Sensor                       L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder







Packing and Shipment:





Packing details carton packing, one carton
Carton Size: (L)2380*(W)1120*(H)1660mm
Total Gross Weight:500kg
Payment terms T/T, Western Union, Cash,L/C
Shipping methods By air (5-7days, most expensive)
By express (3-7days, more expensive)

By sea (15-28days, cheapest)







Installation Data:



  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.0 KW (max), 0.7KW(working)
  5. Noise: <58dB.



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.





Patents:

  1. Security equipment image data transmission system(patent no.: 201020700244.8)
  2. One key switch off device for x ray device(patent no.: 201020700256.0)
  3. Sensors device for security inspection(patent no.: 201020700245.2)
  4. Dangerous liquid detecting circuit(patent no.: 201120107219.5)

Certification:



  1. CE Certificate
  2. ISO9001 Certificate
  3. ISO14001 Certificate
  4. OHSMS18001 Certificate
  5. USFDA Certificate
  6. Radiation Safety Certificate From Chinese Government
  7. Test Report From Inspection Center Of State Security Ministry

Advantages:

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems





Quotation will send you by your inquiry ASAP
