Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check

China Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check supplier
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check supplier Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check supplier Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check supplier

Large Image :  Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO, FDA
Model Number: SPX-5030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard polywood pacakge 131*84*139cm 250KGS
Delivery Time: 5-8working days
Supply Ability: 1000sets per month
Contact Now
Detailed Product Description
Generator: Single Energy 80Kv Penetration: 10mm
Wire Resolution: 38AWG Operation System: Windows 7
Monitor: 17inch DELL Brand Computer: With IPC
High Light:

x-ray baggage inspection system

,

baggage x ray machine


Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check 0
High Light

  • Black white and Pseudo color display
  • Windows 7 operation system;
  • With independent industrial computer;
  • Professional multi-function operation keyboard;
  • Automatic save scanned image;
  • Reliable performance
  • Friendly Image processing interface


Technical characteristics

  • Technical characteristics
  • Single energy penetration system;
  • New radiation protection technology;
  • TIP program;
  • Clear and distinct image;
  • Scanned imaged can zoom up to 32 times
  • Integrated structure design, refinement appearance



 General Specification

Tunnel size504*320mm (w*h)
Conveyor speed0.20m/s
Conveyor height693mm
Max Load100kgs
Wire Resolution38AWG
Spatial resolutionvertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration10mm steel panel
Monitor17inch,resolution 1280*1024
X Ray generator anode voltage80KV
Cooling/operation cycleOil Cooling /100%
X ray Dose per inspection

<0.16 μSv


Image processingPseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
ZoomVariable zoom up to X32, support continuous magnification.
Image CheckingContinuous check back image
Storage capacityCan store more than 100000 image
Dose per inspection<0.125 μSv
Radiation leakage<0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safetyIn accordance with ASA/ISO1600 film safe standard
System functionF programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional functionVideo surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size1199*728*1197mm (L*W*H)
Weight280kg
Environment temperature/humidity- 3℃~+40℃±2℃ / 5%~95%(non-condensing)
Storage temperature/humidity-43℃~+60℃±2℃ / 5%~95%(non-condensing)
Power220VAC (+/-10%) 50+/-3HZ
Consumption0.6KvA
Noise Level<55db



Application field:

  • entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
  • suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.


Effect images display

Black and White
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check 1

High penetration:
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check 2

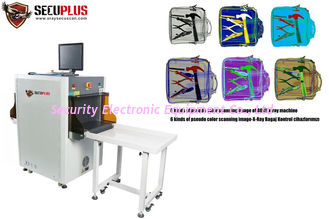

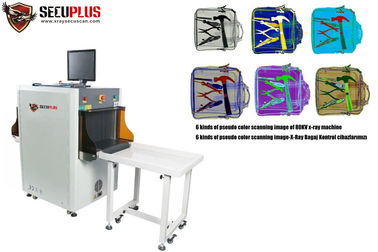

Pseudo color
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check 3

Smooth:
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check 4

Standard polywood package:
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check 5
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check 6
Single Energy X Ray Baggage Security Inspection Scanner For Shopping Mall Check 7
