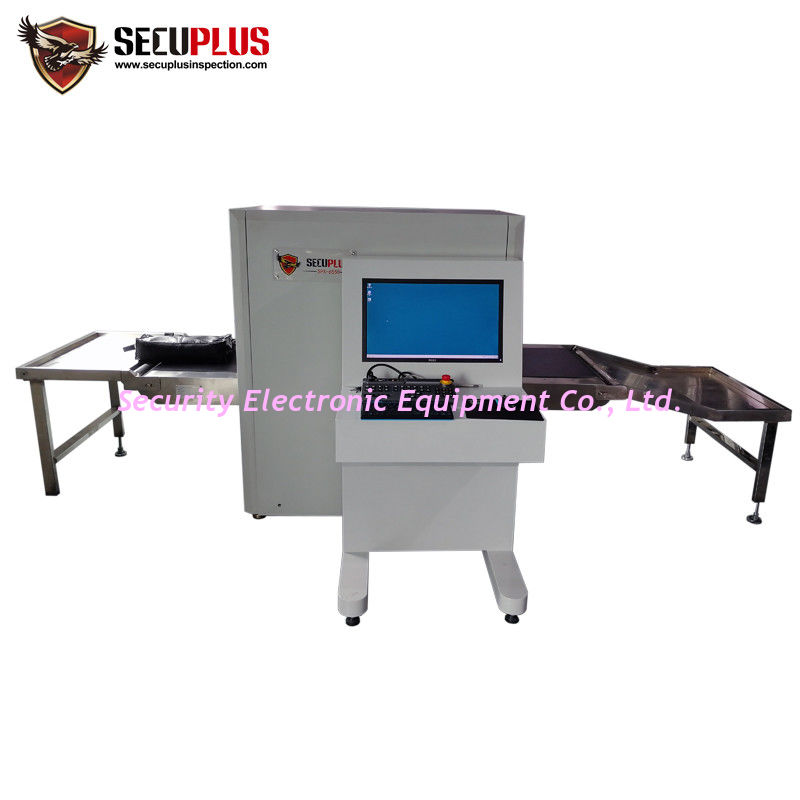

SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use

SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use
SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use

Large Image :  SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: spx6550
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 7 woring days after receving your full payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/moth
Detailed Product Description
Automatic Alarm: Yes Have In Stock: Yes
TIP Program: Support Tunnel Size: 653*505mm (w*h)
Conveyor Speed: 0.20m/s Max Load: 150kgs
X Ray Generator: 160KV Zoom: Up To X64, Support Continuous Magnification
Storage Capacity: More Than 100000 Image Dual-Direction: Yes
High Light:

baggage scanner machine

,

security body scanner

SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use





High Light

  • Powerful image dealing ability
  • Accurate Z7,Z8,Z9 mark for explosive and narcotics
  • Windows 7 operation system
  • Automatic save scanned image
  • Friendly operation System
  • Reliable performance
  • SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use 0

Technical characteristics

  • Dural energy penetration system
  • TIP program
  • Clear and distinct image
  • Scanned imaged can zoom up to 64 times
  • Partly zoom up to 3 times
  • 13 kinds of image processing functions and 6 kinds of pseudo color



Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points;
Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.



Technical parameters

Tunnel size 653*505mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 150kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 35mm steel panel
Monitor 21.5 inch,High resolution 1280*1024
X Ray generator anode voltage 160KV (Working at 150KV)
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection < 1.14 USv
Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to X64, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100000 image
Radiation leakage <0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F1,F2,F3 programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size 2043*901*1384mm (L*W*H)
Weight 500kg
Environment temperature/humidity - 3℃~+40℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.7KvA
Noise Level <55db



Related Product

Single Energy X-ray Baggage Scanner SPX5030A

SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use 1



Detail Images

Operation Keyboard

SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use 2

Extension Table: 1 set free for customers

SPX6550 Baggage Security Check X Ray Bag Scanner Equipment 5 Stars Hotel Use 3



Our service

Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
