Product Details:
Place of Origin: CHINA
Brand Name: SECUSCAN
Certification: CE, ISO9001
Model Number: AT2900
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Detailed Product Description
Floor Space:: 4.712 (L)*4.882 (W) M Scanning Tunnel Size: 3.05m(W)*3.7m(H)
Scanning Speed: 720m/h Image: Color
Computer System: Windows XP Or 7 Software: Multi-language
Penetration: Typical 40mm(200kv) Typical Throughout :: 80 Vehicles Per Hour
Storage: 500GB Multi-energy: Identify Organic And Non-organic Objects
High Light:

under vehicle inspection systems

,

under vehicle monintor machine

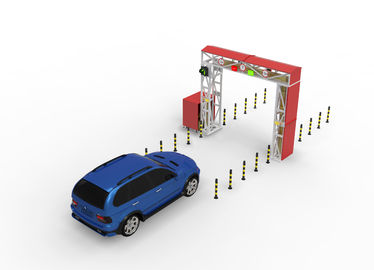

Security Full X Ray Vehicle Inspection System for port, border

     AT2900 use advanced high energy, low radiation X-ray scanning technology, can quickly determine whether the vehicle is equipped with dangerous goods and contraband such as weapons, explosives, drugs, smuggled goods. The driver drive the vehicle directly pass through the system , the whole process will real time display on the monitor. This system suitable for small and medium-sized Saloon Car, cargo vehicle, truck for rapid and through inspection, meanwhile maximally guarantee the safety of the personnel.



   AT2900 can be installed in the parking lot entrance, checkpoints, customs, border, important government agencies,large venues, high security premises for vehicle safety inspection. According to the customer requirements, on-site installation conditions, this system also can be integrated with the under vehicle inspection system to realize the comprehensive multi-angle vehicle safety inspection.





KEY FEATURES:



* High penetration

The AT2900 is with 200kv generator producing X-Ray from top to bottom, offering high-quality X-ray images of inspected objects through 40 mm of steel at car speeds of 720m/h.



* High quality X-ray images

To ensure proper detectability of the concealed objects, the AT2900 produces images with the 2% of the contrast sensitivity and 0.8mm copper wire detection capability.



* Dual energy imaging

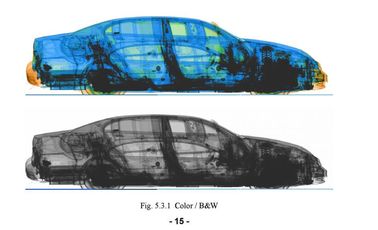

The AT2900 has an automatic color coding for materials separation (3 colors) feature allowing distinguishing between organic, non-organic and metal materials. This feature helps the operator to detect dangerous object from the various materials.



* Radiation safety

The AT2900 ensures the low dose for driver and passenger operation (complies with ANSI 43.17 standard) as well as protection of the operator. The inspection portal is equipped with the video surveillance system to avoid the inspection of the passer-by's.





System highlights:



1.  High security protection

Track stretch design enables automatic transmission of vehicles to get scanning, maximally keep the driver and personnel away from radiation.



2.  High pass rate, can achieve 100% inspection

3. High penetration, no image distortion

4. Large scanning channel, suitable for checking a variety of small and medium-sized vehicles.

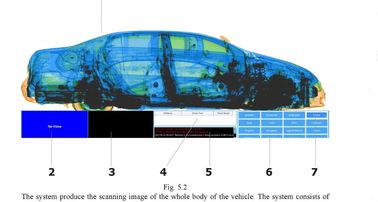

Powerful image processing function, such as zoom in, zoom out, pseudo-color transform, edge enhancement, contrast adjustment, multi-image comparison, and image format conversion, so that the operator can easily and quickly identify the contrabands and dangerous items inside of the vehicles, mark the suspected parts on the image.



5.  Friendly interface, can integrated with LPRS and under vehicle inspection system (option).



Basic specs:



Floor space: 4.712 (L)*4.882 (W) m

Scanning tunnel size: 3.05m(W)*3.7m(H)

Scanning speed:720m/h

Typical throughout : 80 vehicles per hour

Penetration: typical 40mm(200kv)

Wire resolution: 0.8mm

Maximum vehicle length: 20m

Vehicle Type For Screening: Saloon Car

Type of X-ray Source: X-Ray Generator



Radiation safety:



X ray dose per inspection: <3.5μSv, speed below 7km/h

X ray leakage: <1.5μSv, complied with international IAEA standard

Film safety: ISO1600



X ray generator:

X ray beam direction: From side

X ray generator: 200kv

Cooling / Duty Cycle: Oil Cooling /100%



System function:

Image process: Image enhancement; magnifying; brightening / darkening; image pullback / front pull; image storage

Others: Date / time display; vehicle count; user management; system working time; ray out timing; power-on self-test; image storage and retrieval; maintenance diagnosis

Image Acquisition Mode: Real-time, Synchronized



Operating environment:

Operation temperature/Humidity: 0℃-45℃/5%-95%(non-condensing)

Storage Temperature/Humidity: -40℃to 60℃/ 5%-95%(non-condensing)

Operation Power: 220VAC(±10%) 50/60Hz

Power consumption: Max. 2KVA
