Airport Cargo X Ray Scanner SPX150180 Freight Inspection X-Ray Scanner

Airport Cargo X Ray Scanner SPX150180 Freight Inspection X-Ray Scanner
Airport Cargo X Ray Scanner SPX150180 Freight Inspection X-Ray Scanner Airport Cargo X Ray Scanner SPX150180 Freight Inspection X-Ray Scanner

Large Image :  Airport Cargo X Ray Scanner SPX150180 Freight Inspection X-Ray Scanner

Product Details:
Place of Origin: china
Brand Name: SECUPLUS
Certification: CE ISO FCC ROHS
Model Number: SPX150180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per month
Detailed Product Description
Tunnel Size: 1500mm*1800mm Conveyor Speed: 0.22m/s
Conveyor Height: 350mm X Ray Dose Per Inspection: <1.8μSv
Penetration: 34 Mm Steel Guarantee, 38mm Steel Typical Have In Stock: About 5 Units
Throughput: Typically 720 Bags Per Hour
High Light:

security screening equipment

,

airport baggage scanner

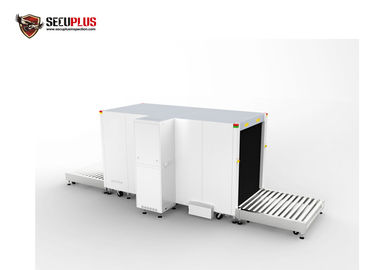

Airport Cargo X Ray Scanner SPX150180 Freight Inspection X-Ray Scanner



SECUPLUS SPX150180 is multi-energy x ray security inspection system for cargo scanning.



It powerful to deal with big size baggage at 150cm width, and 180cm height.



It provides high resolution and ultra-clear images for easy object identification with the latest technology of computer control and image processing.



SECUPLUS SPX150180 can distinguish organic and inorganic materials by atomic composition of the material.



SECUPLUS SPX150180 can distinguish explosives/drugs and realize Threat Image Project Function through adding different option.



The operator can easily identify materials with the following coloring scheme:

Organic material--orange

Inorganic material--blue

Mixed material--green

High density material--red



General Specification :



Tunnel Size 1500mm*1800mm
Conveyor Speed 0.22m/s
Conveyor height 350mm
Conveyor Max Load 200kg
X ray Dose per inspection <1.8μSv
Wire Resolution 38AWG Guarantee, 40 AWG typical
Spatial resolution Level dia1.3mm,Vertical: dia1.3mm
Penetration 34 mm steel guarantee, 38mm steel typical
Penetration Resolution 32AWG guarantee, 34AWG typical
Film Safety Grantee ASA/ISO1600 Film

X-ray Leakage

<0.1μSv/h (at a distance of 5cm From external housing)
Conveyor running direction Bi-direction
Throughput Typically 720 bags per hour



Image System :



Technical Principle: Dual-energy X-ray Imaging;

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep

Monitor: High Resolution Color, LCD Accord, 17inch

Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 65536

Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low

penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

Image Recall: All preceding images recallable, retrieval.

Help detect Explosives & Narcotics: Explosives & narcotics alarm and highlight according to atomic number signature

High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of

threats and contrabands

Threat Image Projection: Inserting fictional, but realistic images of threat items into

baggage during screening operation, for maintenance of vigilance, as well as training and

assessment of image identification capability

Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and

converting to JPG, BMP and other general formats

Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray-on

timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log,

system standby and stimulant training, ADS etc.

Network Applications: Multiple remote applications available based on Ethernet LAN and

windows platform, such as image centralized storage and identify, recheck workstation, and

network TIP, etc.

Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and

ID NO ,Count the number of bags ,Memory gray level:65536



Operating Environment:



Operation temperature/Humidity: 0℃ to +40℃/10%-95%(non-condensing)

Storage Temperature/Humidity: -20℃to 60℃/ 5%-95%(non-condensing)

Operation Power: 220VAC(+10%~-15%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Power Consumption: 2.0KW (max)

Noise: <58db

Dimensions (L×W×H) :2127mm*2230mm *2338mm



Computer Character:



CASE: IPC7132

Power: 250W/ATX

Main board: AIMB 501G2

CPU: G1610 2.6G

RAM: 2GB 1600MHz DDR3

Hard Disk: SEAGATE 500G 3.5”



X-ray Generator:



Anode Voltage: 160kv adjustment

Anode power: 1.2mA adjustment

Generate angle: 80 degree downward

Brand: USA SPELLMAN

Generate direct: from top to bottom

Cooling / Duty Cycle: Oil Cooling /100%

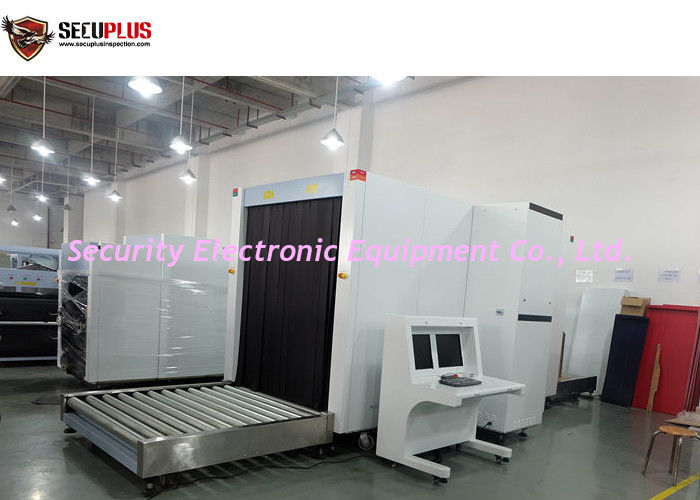

SECUPLUS Company workshop:
