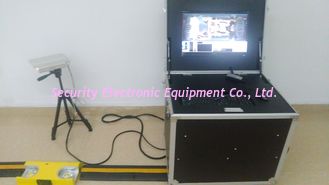

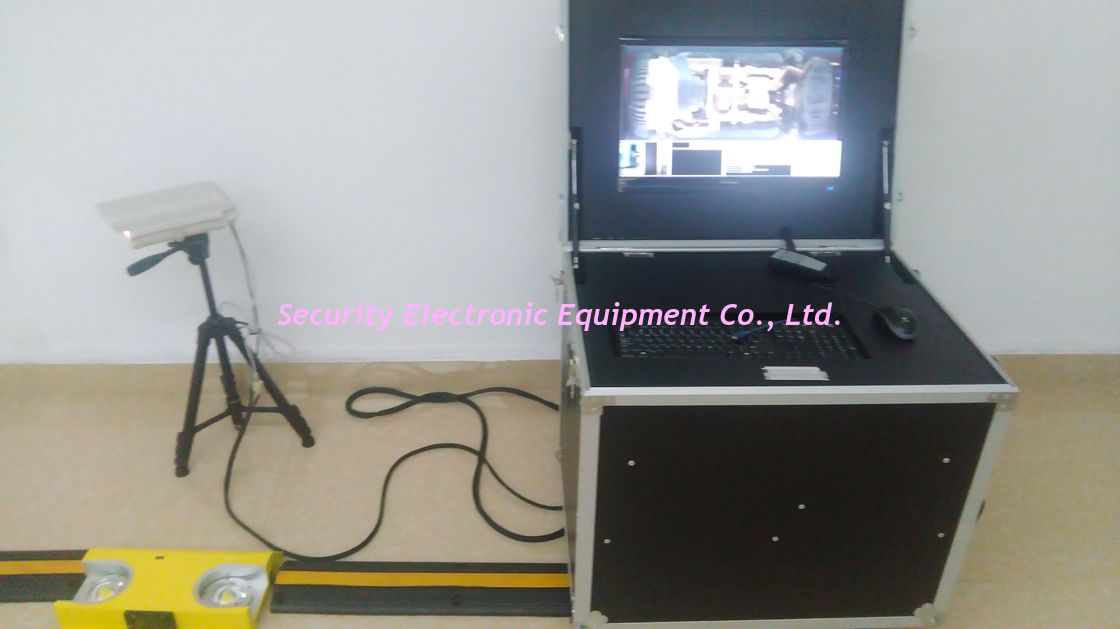

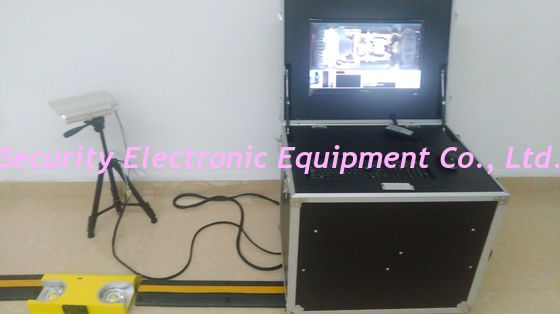

Large Image :  AT3000 Under Vehicle Surveillance System Airports Under Vehicle Inspection Systems

Product Details:

Place of Origin: China
Brand Name: V-SCAN
Certification: ISO CE
Model Number: AY3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood pallet
Delivery Time: within 10 working days
Payment Terms: T/T, Western Union,, L/C
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Vertical Resolution Of The Image: 5000*2048 Pixels Check The Width Viewing Angle: < 4 Meters
Effective Field Of View(FOV): Less Than 170° Weight Capacity: <20T
Water-proof Grade: Ip68 Scanning Device Weight: 24KG
Memory: 2G( Optional 4G) Have In Stock: Yes

UVIS manufacture AT3000 Under Vehicle Inspection System for Airports use

VSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.

  • With intelligent alarm
  • Suitable for police use, quick installation.
  • Suitable for all vehicles, wide vision
  • To connect anti-collision system, barrier,etc,
  • To compatibly packing management solution


  1.  Automatic digital line scan camera, with high-resolution and clarity of the image.
  2.  The complete image of under vehicle scanning, without any omissions,
  3.  and the image is clear, complete, no distortion, can be clearly observed that
  4.  the object is not less than 2mm in diameter.
  5.  Preparation of inspection processes to meet a variety of on-site needs.
  6.  Multiple scene image monitoring, recording function.
  7.  Multi-language user interface design.
  8.  Strong scalability to easily achieve a variety of system linkage control.
  9.  (Optional)ALPR(Automatic Licence Plate Recognition)
  10.  Optional Multiple devices networked control functions

System Host:

  • Brand: Grantech (UFO6377H-SP1-953)
  • CPU: Intel® Core(TM) 2 Duo CPU P8600@2.4GHz or higher
  • Memory:2G( optional 4G)
  • Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
  • Hard Disk:SATA2 Hard Disk 500G
  • Dual LAN (At least one Intel Gigabit)
  • USB2.0 (Up to 4 pieces)
  • Monitor: 22inch LCD, resolution up to 1920*1080

Technical parameters:

Vertical resolution of the image 5000*2048 pixels
Check the width viewing angle < 4 meters
Speed of vehicle

< 30km/h with ALPR(Automatic Licence Plate Recognition)
< 70km/h without ALPR(Automatic Licence Plate Recognition)

Effective Field of View(FOV) less than 170°
Auxiliary light 100W
Water-proof grade Ip68
Weight capacity <20T
Scanning device weight 24KG
Scanning device volume 450mm×400mm×88mm
Communication interface RS232/RS422
Operating Temperature -10℃ to 55℃
Storage temperature 40℃ to +75℃
Operating voltage 110-240V AC, 50-60Hz
