| Tunnel Size: | 1000*800mm | Resolution: | 38 AWG Guarantee, 40 AWG Typical |
|---|---|---|---|
| Converyor Speed: | 0.22m/s | Conveyor Loading: | 200KG |
| High Light: | airport screening machines,security screening equipment |
||

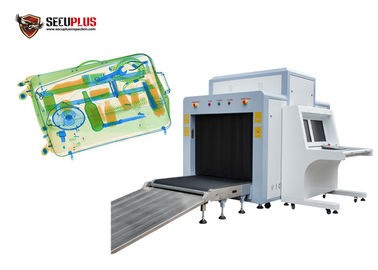

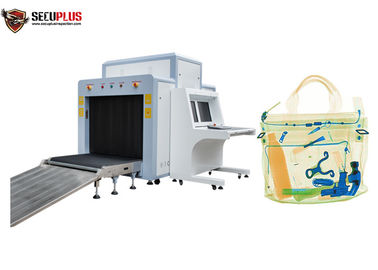

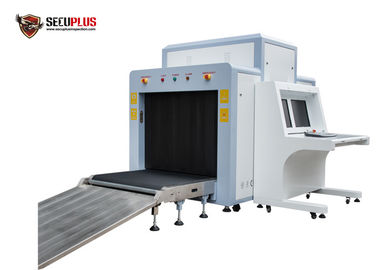

SECUPLUS Multi Energy Baggage X Ray Scanner SPX10080 For Station Airport security check
|
Tunnel Size: |
1000(W)*800(H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
200kgs |
|
Dose per Inspection: |
<1.7 μGy/h |
|
Resolution: |
<0.101mm Metal Wire |
|
Penetration: |
34mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<0.1 μGy/h (at a distance of 5cm From external housing) |
|
Generate direct: |
Downward |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
140-160Kv |
|
Anode power: |
0.4 to 1.2mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
Image System :
Technical Principle: Dual-energy X-ray Imaging;
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17inch
Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of
threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into
baggage during screening operation, for maintenance of vigilance, as well as training and
assessment of image identification capability
Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and
converting to JPG, BMP and other general formats
Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray-on
timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log,
system standby and stimulant training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and
windows platform, such as image centralized storage and identify, recheck workstation, and
network TIP, etc
Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and
ID NO ,Count the number of bags ,Memory gray level:65536
SECU SCAN X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.
Operating Environment:
Operation temperature/Humidity: 5℃-40℃/10%-95%(non-condensing)
Storage Temperature/Humidity: -20℃to 60℃/ 5%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.0KW (max), 0.7KW(working)
Noise: <58db
Dimensions (L×W×H): 2848.5mm x1095mm x1535.5 mm
Device Weight: 680Kg
G. Weight: 900Kg
Packing Volume: 6.63CBM
Computer Character:
CASE: IPC7132
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
RAM: 2GB 1600MHz DDR3
Hard Disk: SEAGATE 500G 3.5”
X-ray Generator:
Anode Voltage: 160kv
Anode power: 0.3mA
Generate angle: 80 degree upward
Brand: own made
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%
Other Characters:
Detect PCB board: UK brand Sensor tech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Monitor: 17 inch DELL two monitors
