Product Details:
Payment & Shipping Terms:
|
Tunnel Size: | 653*505mm (w*h) | Conveyor Speed: | 0.20m/s |
---|---|---|---|
Max Load: | 150kgs | Conveyor Height: | 693mm |
Wire Resolution: | 38AWG | Penetration: | 35mm Steel Panel |
Have In Stock: | Yes | Be-directional Scan: | Yes |
High Light: | airport screening machines,airport baggage scanner |
Multi Energy X ray Baggage Scanner SPX-6550 for Hotel security check
High Light
Technical characteristics
Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.
Technical parameters
Tunnel size | 653*505mm (w*h) |
Conveyor speed | 0.20m/s |
Conveyor height | 693mm |
Max Load | 150kgs |
Wire Resolution | 38AWG |
Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
Penetration | 35mm steel panel |
Monitor | 21.5 inch,High resolution 1280*1024 |
X Ray generator anode voltage | 160KV (Working at 150KV) |
Cooling/operation cycle | Oil Cooling /100% |
X ray Dose per inspection | < 1.14 USv |
Image processing | Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
Zoom | Variable zoom up to X64, support continuous magnification. |
Image Checking | Continuous check back image |
Storage capacity | Can store more than 100000 image |
Radiation leakage | <0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
Film safety | In accordance with ASA/ISO1600 film safe standard |
System function | F1,F2,F3 programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
Optional function | Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
Frame size | 2043*901*1384mm (L*W*H) |
Weight | 500kg |
Environment temperature/humidity | - 3℃~+40℃ / 5%~95%(non-condensing) |
Storage temperature/humidity | -43℃~+60℃ / 5%~95%(non-condensing) |
Power | 220VAC (+/-10%) 50+/-3HZ |
Consumption | 0.7KvA |
Noise Level | <55db |
Related Products
Walk Through Metal Detector AT-IIID
Zones: 6/12/18 optional
Keyboard and remote control(both)
4 LED lights(front and back), LCD display

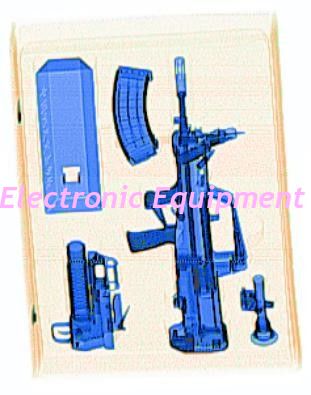

Scan Image of SPX6550
