Small Hand Bag X-ray Baggage SCanner SPX5030A X ray Parcels Scanning Machine for Police Factory

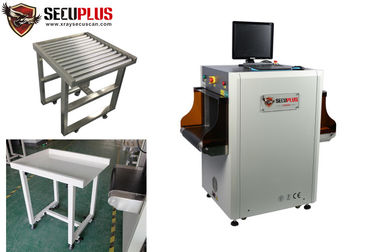

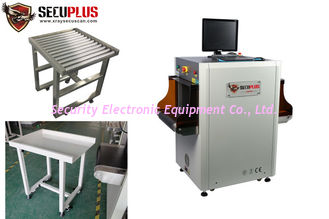

Large Image : Small Hand Bag X-ray Baggage SCanner SPX5030A X ray Parcels Scanning Machine for Police Factory

Product Details:

Place of Origin:	China
Brand Name:	SECUPLUS
Certification:	CE, ISO, FCC, ROHS
Model Number:	SPX-5030A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plywood Pallet
Delivery Time:	7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets/ month

Contact Now

Detailed Product Description

Operation System:	Windows 7	Tunnel Size:	504320mm (wh)
Conveyor Speed:	0.20m/s	Max Load:	100kgs
Penetration:	10mm Steel Panel	Monitor:	17inch，resolution 1280*1024
Have In Stock:	About 30 Units	X Ray Generator Anode Voltage:	80KV
Multi Language:	Support	Extension Table:	1 Set Free For User
Highlight:	airport screening machines , security screening equipment

Small Hand Bag X-ray Baggage SCanner SPX5030A X ray Parcels Scanning Machine for Police Factory

Small Hand Bag X-ray Baggage SCanner SPX5030A X ray Parcels Scanning Machine for Police Factory 0

High Light

Black white and Pseudo color display
Windows 7 operation system；
With independent industrial computer；
Professional multi-function operation keyboard;
Automatic save scanned image;
Reliable performance;
Friendly Image processing interface

Technical characteristics

Single energy penetration system;

New radiation protection technology;
TIP program;
Clear and distinct image;
Scanned imaged can zoom up to 32 times
Integrated structure design, refinement appearance

Application field

Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.

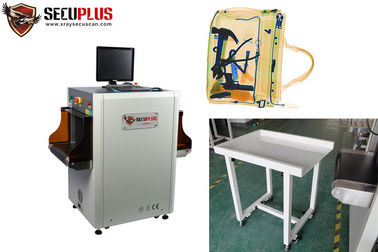

Scan Image

Technical parameters

Tunnel size	504320mm (wh)
Conveyor speed	0.20m/s
Conveyor height	693mm
Max Load	100kgs
Wire Resolution	38AWG
Spatial resolution	vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration	10mm steel panel
Monitor	17inch,resolution 1280*1024
X Ray generator anode voltage	80KV
Cooling/operation cycle	Oil Cooling /100%
X ray Dose per inspection	<0.16 μSv
Image processing	Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom	Variable zoom up to X32, support continuous magnification.
Image Checking	Continuous check back image
Storage capacity	Can store more than 100000 image
Dose per inspection	<0.125 μSv
Radiation leakage	<0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety	In accordance with ASA/ISO1600 film safe standard
System function	F programmable key,high density alarm,TIP；date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function	Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size	11997281197mm (LWH)
Weight	280kg
Environment temperature/humidity	- 3℃～+40℃±2℃ / 5%～95%(non-condensing)
Storage temperature/humidity	-43℃～+60℃±2℃ / 5%～95%(non-condensing)
Power	220VAC (+/-10%) 50+/-3HZ
Consumption	0.6KvA
Noise Level	<55db
